North facing 4BHK duplex western house plan with parking

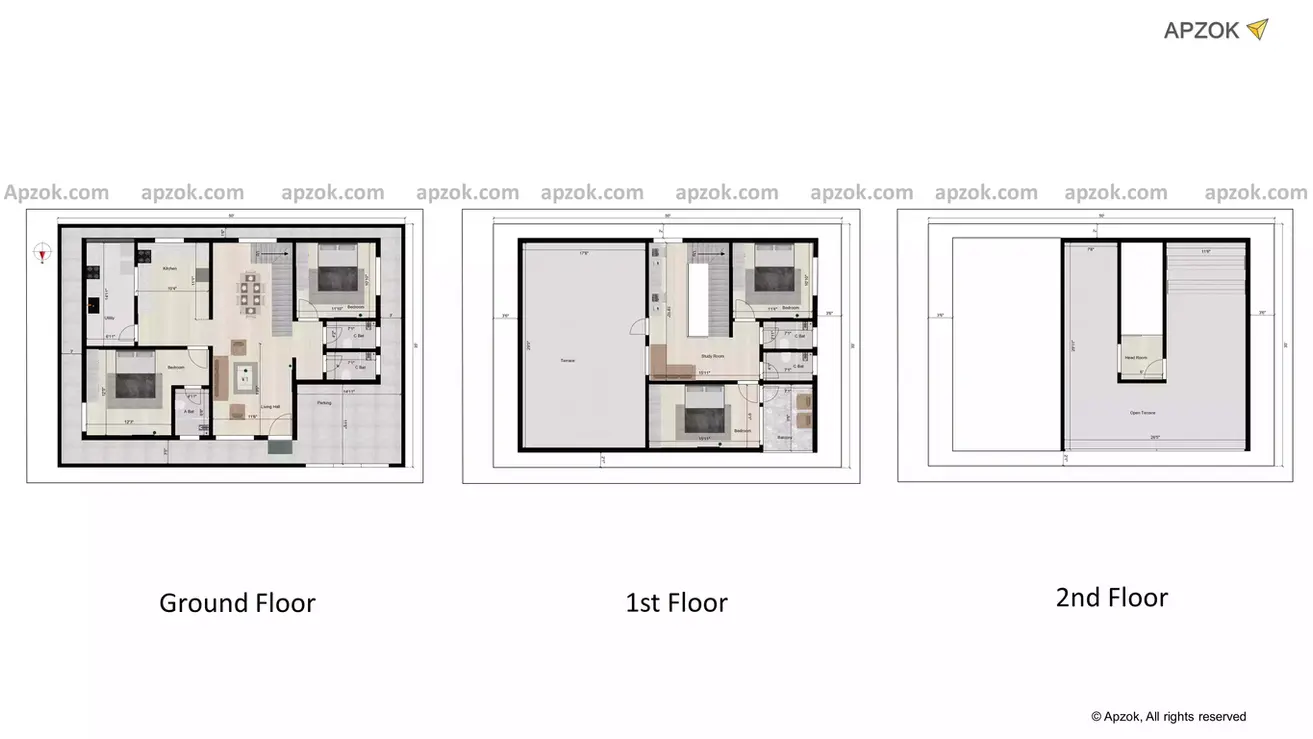

This is a north-facing 50x35 4BHK duplex house plan provided with special amenities like study room, double height, utility space, and many more. This is a three-floor building. The ground floor consists of spacious parking area, living hall, two bedrooms with attached washroom, kitchen, utility, dining hall. The first floor consists of two bedrooms along with an attached washroom, balcony, and family hall. The terrace floor consists of headroom along with the open terrace.
The ground floor consists of spacious parking area measuring about 14 feet 7 inches and 11 feet 6 inches. The main door of this house is towards north direction. The living hall measures about 11 feet 6 inches and 13 feet 5 inches. The bedroom located in the southwest direction measures about 11 feet 10 inches and 10 feet 10 inches with a common bathroom measuring about 7 feet 1 inches and 4 feet 2 inches. Another common bathroom is located in the northwest direction measuring about 7 feet 1 inches and 4 feet. The dining space is right opposite to the living area along the steps. The kitchen in the southeast direction measures about 10 feet 4 inches and 11 feet 1 inches having attached utility measuring about 6 feet 11 inches and 14 feet 11 inches. The bedroom in the northeast direction measures about 12 feet 3 inches and 12 feet 5 inches with an attached bathroom measuring about 4 feet 11 inches and 6 feet 8 inches. The setback area in left and right side is about 3 feet and at back side it's about 1 feet 6 inches.
The first law consists of two bedrooms. The first bedroom in the southwest direction measures about 11 feet 4 inches and 10 feet 10 inches, with a common bathroom measuring about 7 feet 1 inches and 3 feet 11 inches. Another common bathroom is provided in the study room measuring about 7 feet 1 inches and 4 feet 1 inches. The bedroom in the northeast direction measures about 15 feet 11 inches and 9 feet 1 inches, along the utility in the northwest direction measuring about 7 feet 1 inches and 9 feet 6 inches. A open terrace is provided measuring about 17 feet 8 inches and 29 feet 5 inches.
The terrace floor consists of spacious open terrace measuring about 26 feet 5 inches and 29 feet 11 inches with a small headroom facility measuring about 6 feet.
