Complete 2D House Plan Layout

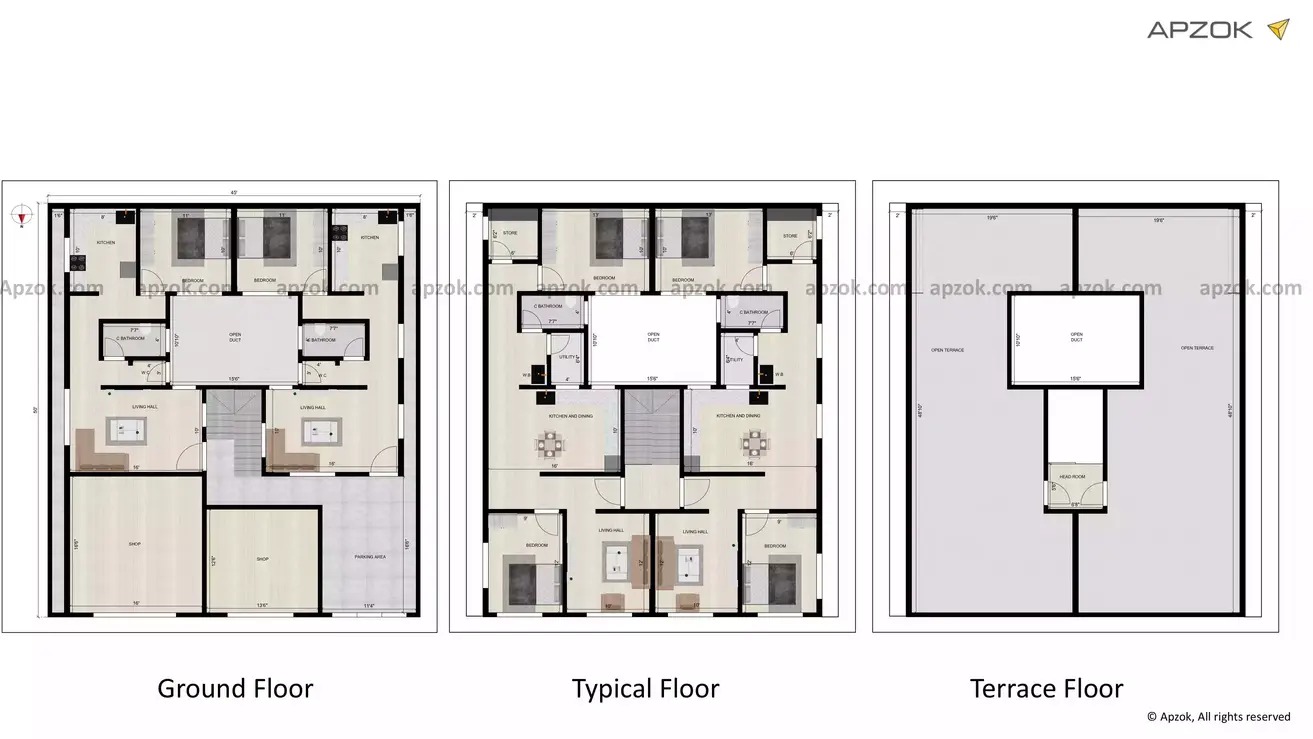

45 by 50 feet 2BHK Rental or Appartment House Plan North Facing.
The Plan of the Residential building facing in North direction with size is 45’x 50’ feet and this is duplex plan with G+2 floor and Here Ground floor includes utility area around 1’6” length and parking area car standing and shop with stairs in north which moves along north south direction and here plan divided in two house plan in east and west direction and In east main door placed in west direction then living hall, 1 common bathroom, open kitchen and 1 bedroom and In west main door placed in north direction then living hall, 1 common bathroom, open kitchen and 1 bedroom. The first floor consists utility area around 2’ length and after passing through stairs from south direction and we see plan divided in two house plan in east and west direction and In east direction main door placed in west then living hall, 1 common bathroom, open kitchen and dining with attached utility, store room and 2 bedrooms and In west main door placed in east then living hall, 1 common bathroom, open kitchen and dining with attached utility, store room and 2 bedrooms. The third floor consists utility area around 2’ length and after passing through stairs from south direction and we see head room and open terrace for leisure activity such as sitting, resting and gardening and here we also provide duct for ventilation and windows for proper light and air.
Ground floor buildup area: 45’ x 50’ = 2250sqft
Building is a closed object covered with walls column and slab.
In ground floor consists of parking area size 11’4” x 16’6” with 2 shops size 16’6” x 16’ and 13’6” x 12’6” with stairs in north which moves along north direction (up) and here plan divided in two house plan east and west direction and In east main door placed in west direction then living hall size 16’ x 10’, open kitchen in southeast size 8’ x 10’, common bathroom in southeast size 7’7” x 4’and bedroom in southeast size 11’ x 10’ and In west main door placed in north direction then living hall size 16’ x 10’, open kitchen in southwest size 8’ x 10’, common bathroom in southwest size 7’7” x 4’and bedroom in southwest size 11’ x 10’and duct in middle for ventilation size 15’6” x 10’11”.
First floor
First floor buildup area: 41’ x 50’ = 2050sqft
Building is a closed object covered with walls column and slab.
After passing through stairs form south direction and we see here plan divided in two house plan east and west direction and In east main door placed in west direction then living hall size 10’ x 12’, open kitchen and dining in east size 16’ x 10’ with attached utility size 4’ x 6’4”, common bathroom in southeast size 7’7” x 4’, store in southeast size 6’ x 6’2”, bedroom in northeast size 9’ x 12’ and bedroom in southeast size 13’ x 10’ and In west main door placed in east direction then living hall size 10’ x 12’, open kitchen and dining in west size 16’ x 10’ with attached utility size 4’ x 6’4”, common bathroom in southwest size 7’7” x 4’, store in southwest size 6’ x 6’2”, bedroom in northwest size 9’ x 12’ and bedroom in southwest size 13’ x 10’.
Second floor Second floor buildup area: 41’ x 50’ = 2050sqft
Building is a closed object covered with walls column and slab.
After passing through stairs form south direction and we see head room size 6’8” x 5’6” and then open terrace in east size 19’6” x 48’10” and open terrace in west size 19’6” x 48’10”.
