Complete 2D House Plan Layout
vastu-based 3bhk duplex house plan with 40 by 60
This is an East-facing, 40 x 60, Vastu-based, 3-BHK duplex house plan provided with special amenities like garden, puja room, family hall, study room, terrace, garden, balcony, and many more. This is a 3-floor building, ground floor, first floor, and the terrace floor. Ground floor consists of two bedrooms along with the kitchen, dining space, living area, parking, and garden. The first floor consists of about one bedroom, study room, family hall, garden, and balcony. The terrace floor consists of large open terrace along with a storeroom and bedroom.
The ground floor consists of spacious parking area measuring about 20 feet 7 inches and 10 feet 4 inches. The main door of this house is in east direction. Living area measures about 18 feet 8 inches and 21 feet 6 inches. The puja room measures about 4 feet 11 inches and 6 feet 10 inches located in the northeast direction. The kitchen measures about 14 feet and 11 feet located in southeast direction. The dining hall measures about 14 feet and 6 feet 1 inches. The first bedroom measures about 12 feet 9 inches located in the southwest direction and 14 feet 5 inches. Having an attached bathroom measuring about 7 feet 6 inches and 4 feet 7 inches. The second bedroom measures about 9 feet 6 inches and 14 feet 5 inches with a common bathroom measuring about 4 feet 7 inches and 7 feet 6 inches. The setback area at left side and right side is 2 feet 5 inches and at back side it is 1 feet 5 inches.
The first floor consists of one bedroom, i.e., third bedroom. It measures about 12 feet 9 inches and 14 feet 5 inches, with an attached bathroom measuring about 4 feet 7 inches and 7 feet 6 inches. The common bathroom measures about 4 feet 7 inches and 14 feet 3 inches and 13 feet 2 inches. The balcony measures about 13 feet 9 inches and 7 feet 1 inches, directly connected to the family hall. The open terrace measures about 12 feet 7 inches and 13 feet. The terrace measures about 13 feet and 12 feet 7 inches.

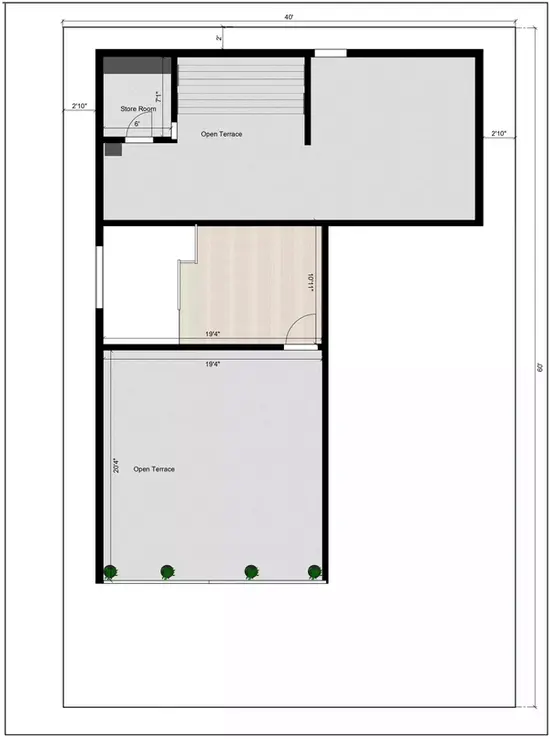

The terrace floor consists of a small storeroom measuring about 6 feet and 7 feet 1 inches. The headroom measures about 98 feet 4 inches and 10 feet 11 inches. A open terrace is provided in the front side measuring about 38 feet 4 inches and 20 feet 4 inches.
