55 x 65 ft 3BHK Luxury Duplex House Plan With Backyard And Garden

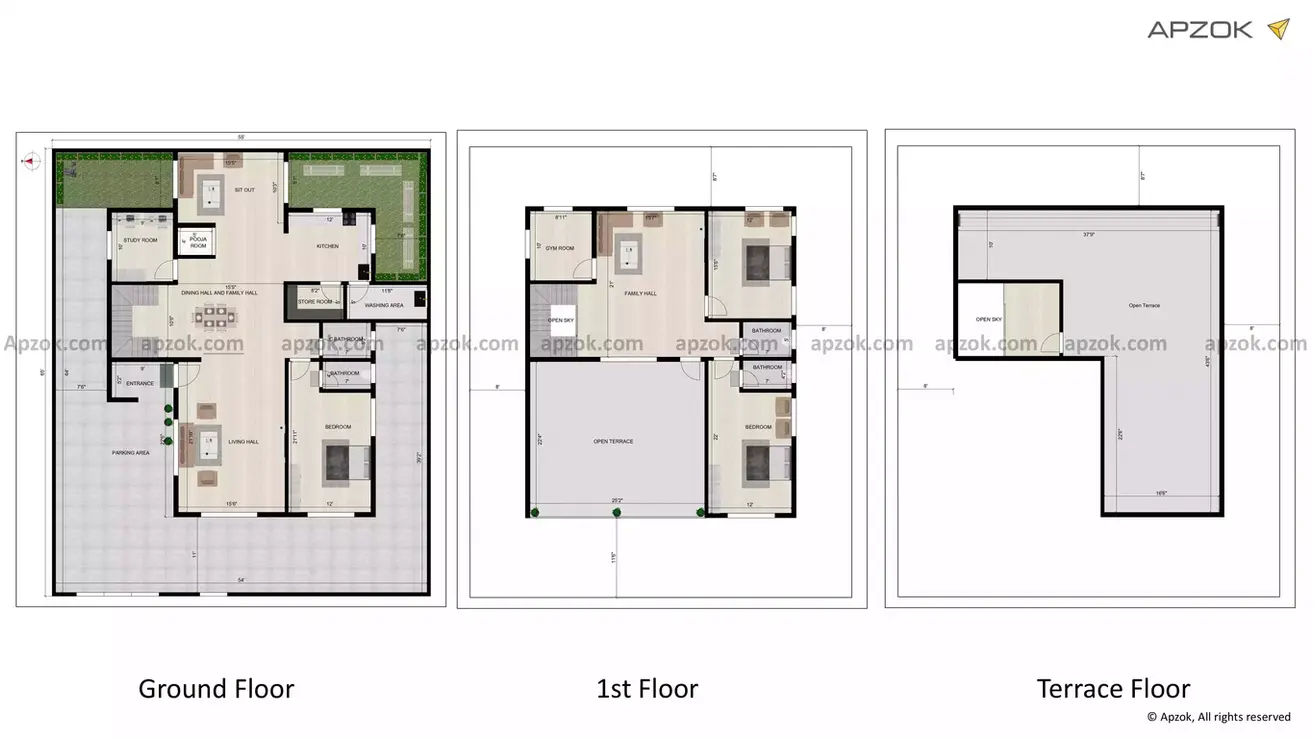

This is a west-facing 3BHK duplex house plan with a plot size of 55 x 65 ft(16.76 x 19.81 m), built with comfort, luxury, and functionality in mind. So this is a three-floor building. The ground floor consists of one bedroom, garden area, study room, pooja room, dining area, a large spacious parking area, sit-out. The first floor consists of family hall, gym room, and two bedrooms with attached washroom and a small open terrace. The terrace floor consists of small headroom along with a large wide open terrace.

So, this house consists of a spacious parking area in the ground floor, which measures about 16.6 x 33.6 ft, which is perfect for accommodating big vehicles or multiple cars, and it is very sufficient for the house. So, the main door of this house is towards north direction. The entrance of the house measures about 9 x 5.2 ft.

As we enter, we will pass by a spacious living area, measuring about 15.6 x 21.10 ft. The bedroom, which is located in the southwest direction, measures about 12 x 21.11 ft, having an attached bathroom measuring about 7 x 4 ft. A common bathroom is located near the first bedroom, measuring about 7 x 5.2 ft. A open dining hall is provided, which measuring about 15 x 5 x 10.6 ft near the steps. A study room is directly connected to the dining hall, measuring about 9 x 10 ft. A puja room measures about 5 x 4 ft. This house is basically constructed based on the principles of Vastu. A sit-out area measures about 15.5 x 10.3 ft, which is directly connected to two gardens. The first garden is in the northeast direction, and the second garden is in the southeast direction, measuring about 7.6 ft wide. The kitchen is in the southeast direction, measuring about 12 x 10 ft, with an attached storeroom measuring about 8.2 x 5 ft. A washing area is directly connected to the kitchen, measuring about 11.8 x 5 ft. So, there is no problem for ventilation for this house, as there is setback area in all four directions. In left side, it is about 7.6 ft, at back side it is about 8.1 ft and at right side it is about 7.6 ft, at front side it is about 11 ft.

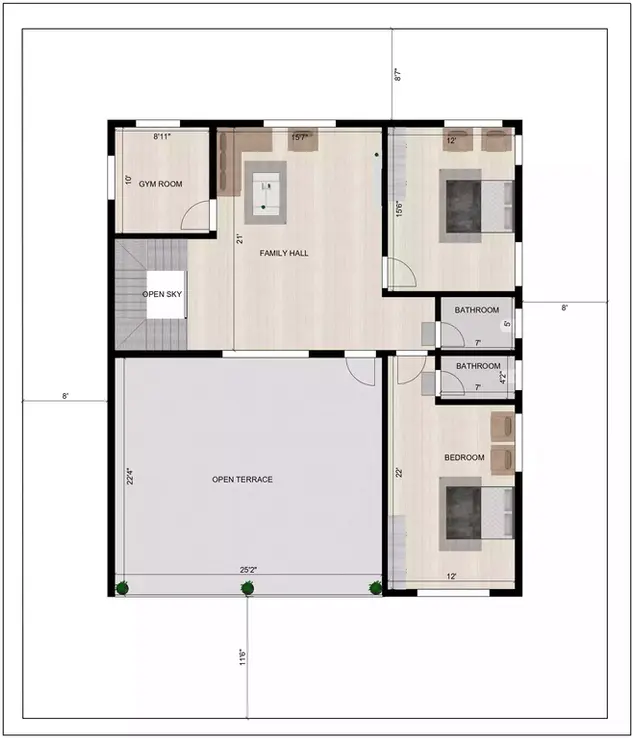

The first floor consists of two bedrooms. The first bedroom in the south-east direction measures about 12 x 15.6 ft with a common bathroom measuring about 7 x 5 ft. Another bedroom in the south-west direction measures about 12 x 22 ft with a common bathroom measuring about 7 x 4.2 ft. The family hall measures about 15.7 x 21 ft with a gym room measuring about 8.11 x 10 ft. The open terrace is directly connected to the family hall measuring about 25.2 x 22.4 ft. The terrace floor consists of a small headroom along with a large open wide terrace measuring about 37.9 x 43.8 ft.
