West facing 4bhk duplex house plan with vastu , garden and mini theatre
This is the 55 by 50 west facing 4BHK duplex house plan which is constructed with a special amenities like study room, dining area, spacious parking area, wide and spacious terrace, family hall. So this is a three-floor building. The ground floor consists of two bedrooms with attached washroom, study room, dining hall, living area, parking area, storeroom, kitchen, and utility. The first floor consists of two bedrooms with a common bathroom, family hall, and the terrace. The terrace floor consists of wide open terrace.
The ground floor consists of spacious parking measuring about 54 feet and 15 feet 11 inches the main door of this house is towards western direction as we enter through the main door we encountered the living area which is very spacious and very modern measuring about 14 feet 1 inches and 12 feet 6 inches the bedroom located in the northwest direction measures about 14 feet and 12 feet another bedroom in the northeast direction measures about 14 feet and 11 feet a common bathroom measures about 9 feet 4 inches and 4 feet 4 inches then the dining hall is provided near the kitchen measuring about 10 feet 10 inches and 10 feet 5 inches a kitchen is located in the southeast direction measuring about 12 feet 2 inches and 10 feet with the utility area 12 feet 2 inches and 5 feet another bedroom in the southwest direction measures about 18 feet 11 inches and 12 feet with attached bathroom measuring about 7 feet and 5 feet 7 inches the setback area at right side left side it's about 2 feet 6 inches and at back side it's about 3 feet 6 inches a small area is connected at the back side.
The first floor consists of two bedrooms. The first bedroom measures about 14 feet and 11 feet, which is in the northeast direction. And the second bedroom in the northwest direction measures about 14 feet and 12 feet, with the common bathroom in between the two rooms, measuring about 9 feet 4 inches and 4 feet 3 inches. A family hall is located, which measures about 13 feet 11 inches and 16 feet 2 inches, with a double height facility, where you can view the living hall from the first floor. And the family hall is directly connected to the terrace, measuring about 27 feet and 18 feet 3 inches.

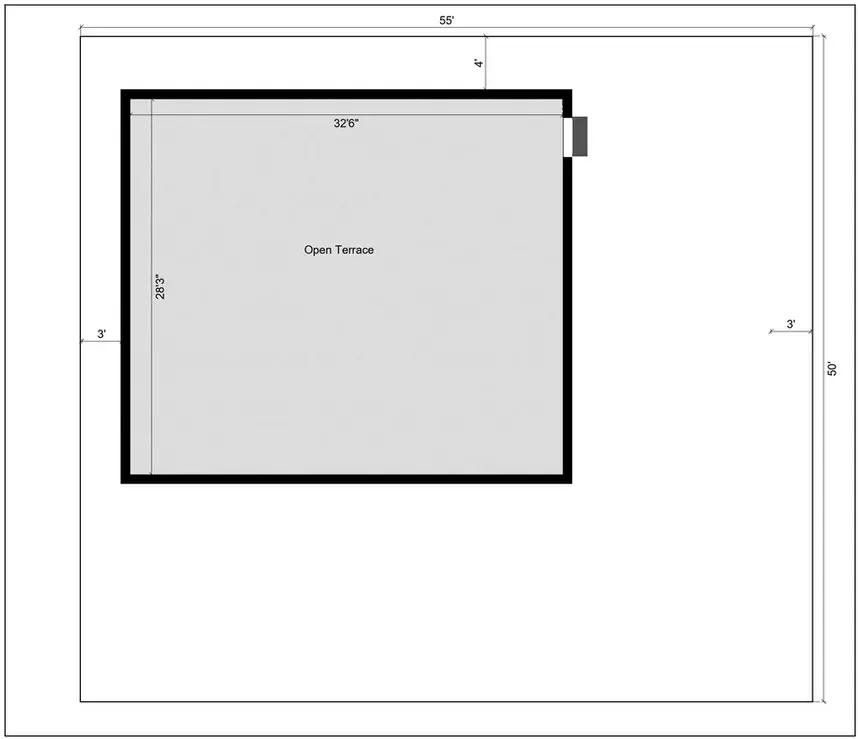

The terrace floor consists of large open wide terrace measuring about 32 feet 6 inches and 28 feet 3 inches.
