55 x 45 ft House Plan North Facing With Vastu Plot Facing The North Direction

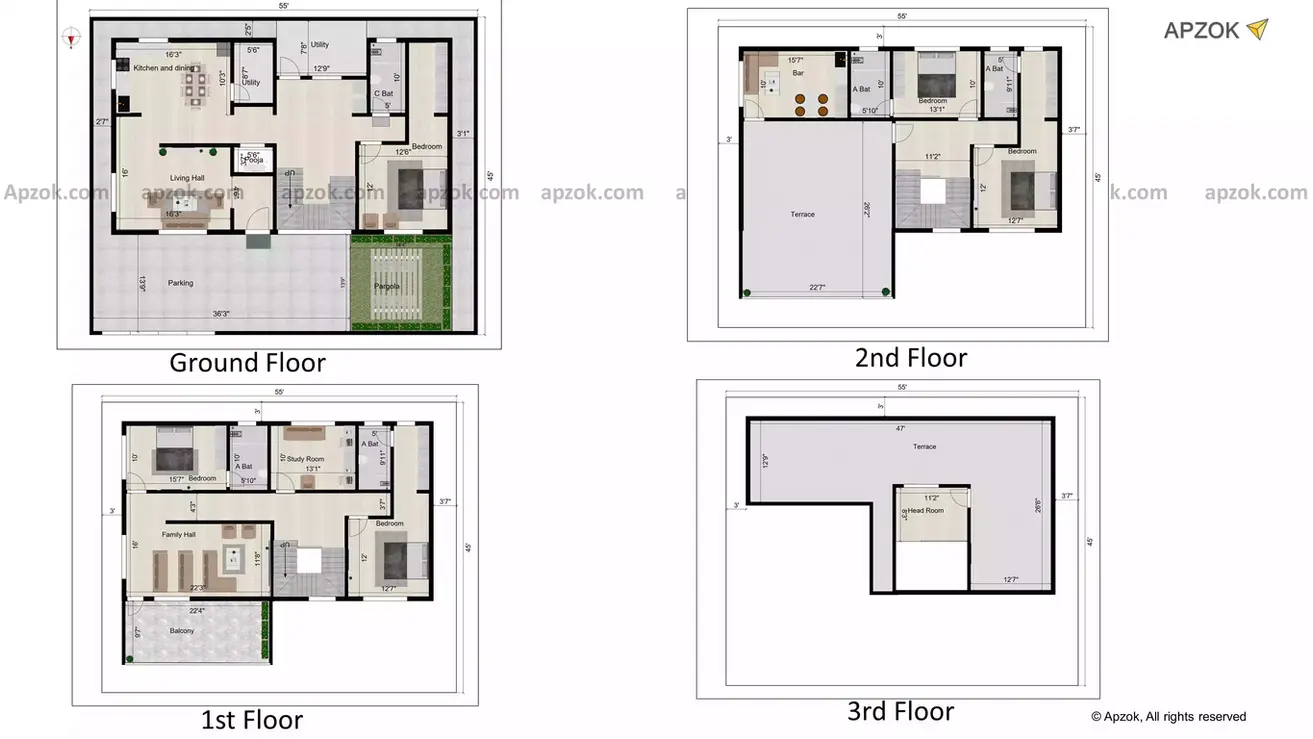

This is a 55 by 45 ft north-facing 4BHK duplex house plan provided with a family hall, mini home theatre, bar facility, headroom facility, garden facility, and this house is constructed on the principles of Vastu. This is a four-floor building. The ground floor consists of one bedroom with attached washroom, living hall, kitchen, dining, puja room, utility, and garden space with a spacious parking area. The first floor consists of two bedrooms with an attached washroom, study room, family hall, balcony, and a study room. The second floor consists of a bar facility, two bedrooms with an attached washroom. The terrace floor consists of headroom and open terrace.

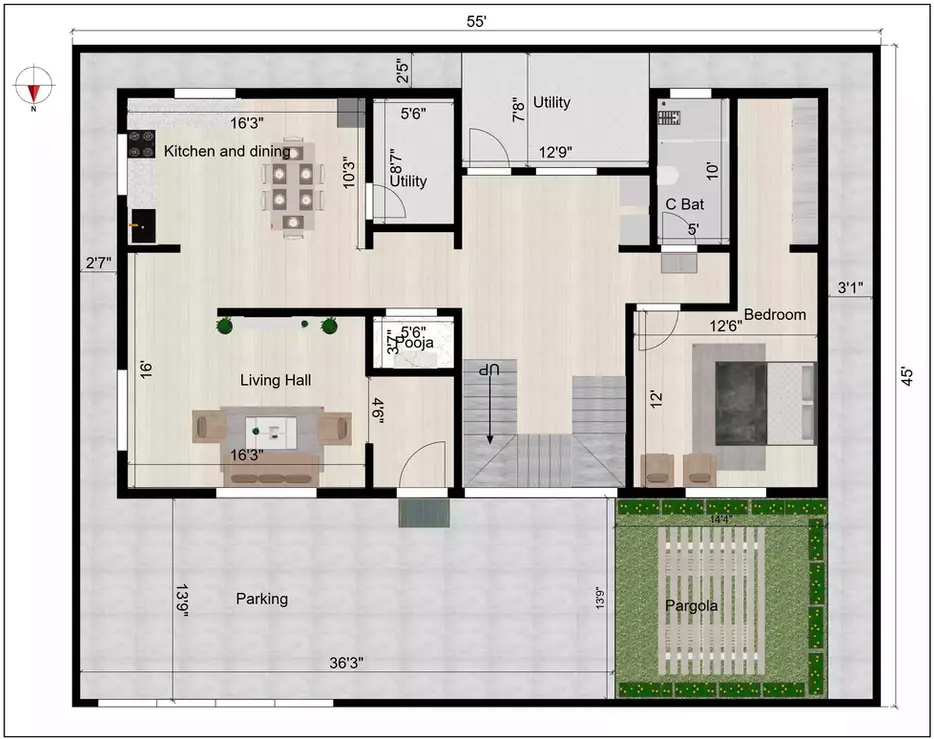

The ground floor consists of spacious parking area which is necessarily sufficient to park multiple cars measuring about 36 feet 3 inches and 13 feet 9 inches. There is a small garden space located in the northwest direction measuring about 14 feet 4 inches and 13 feet 9 inches. The main door of this house is towards north direction. The living hall is very spacious measuring about 16 feet 3 inches and 16 feet. The kitchen is located in the southeast direction measuring about 16 feet 3 inches and 10 feet 3 inches along with the dining hall. Open inner utility is provided in front of the kitchen measuring about 8 feet 7 inches and 5 feet 6 inches. Outer utility is provided right opposite to the steps measuring about 12 feet 9 inches and 7 feet 8 inches.The bedroom located in the northwest direction measures about 12 feet 6 inches and 12 feet with a common bathroom provided right opposite to the bedroom measuring about 5 feet and 10 feet. The setback area at right side is about 3 feet 1 inches, at back side it is about 2 feet 5 inches and at left side it is about 2 feet 7 inches. This setback area ensures a proper ventilation for the whole house.

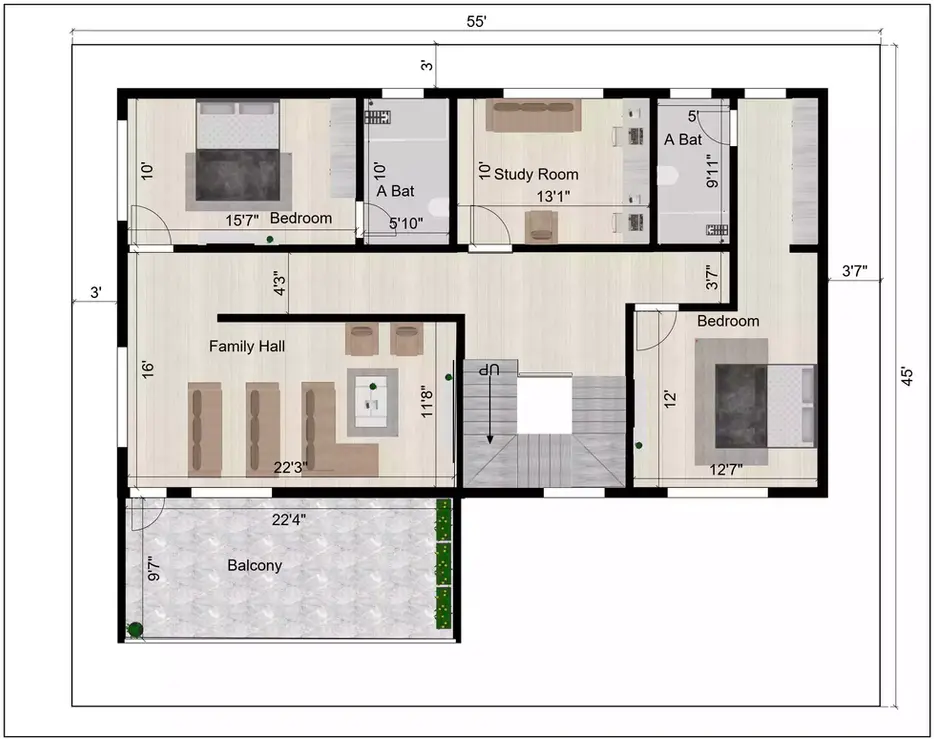

The first floor consists of two bedrooms with an attached washroom. The bedroom located in the north-west direction measures about 12 feet 7 inches and 12 feet, with an attached bathroom measuring about 5 feet and 9 feet 11 inches. The bedroom located in the south-east direction measures about 15 feet 7 inches and 10 feet, with an attached bathroom measuring about 5 feet 10 inches and 10 feet. The study room is located in between these two rooms measuring about 13 feet 1 inches and 10 feet.The family hall measures about 22 feet 3 inches and 11 feet 8 inches with an attached balcony measuring about 22 feet 4 inches and 9 feet 7 inches.The second floor consists of two bedrooms with an attached washroom. The bedroom located in the northwest direction measures about 12 feet 7 inches and 12 feet with an attached bathroom measuring about 5 feet and 9 feet 11 inches. A bar is located in the southeast direction measuring about 15 feet 7 inches and 10 feet. The bedroom which is located in middle of the bar and another bedroom measures about 13 feet 1 inches and 10 feet with an attached washroom measuring about 5 feet 10 inches and 10 feet. The terrace is powered in the northeast direction measuring about 22 feet 7 inches and 26 feet 2 inches.

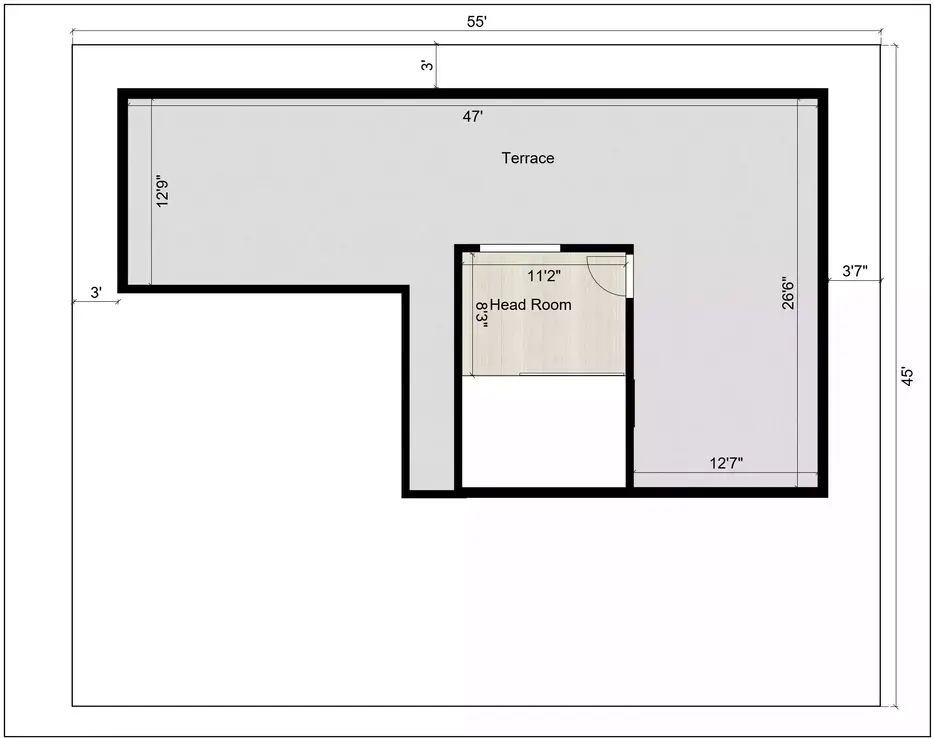

The terrace floor consists of open terrace measuring about 47 feet and 26 feet 6 inches with a headroom measuring about 11 feet 2 inches and 8 feet 3 inches.
