55 x 45 ft House Plan Duplex North Facing Plot

This is a north-facing 55 ft x 45 ft, 5BHK duplex house plan provided with a special amenities like utility area, garden space, study room, family hall, store room, dressing space, and many more. So this is a three-floor building. The ground floor consists of living area, kitchen, dining hall, utility area, one bedroom with attached bathroom, and garden space. The first floor consists of three bedrooms with attached washroom, garden, balcony, and family hall. The terrace floor consists of one bedroom with an attached washroom, store room, headroom, and open terrace.

The ground floor consists of a spacious parking area, which is sufficient to park multiple cars. The parking area measures about 36 feet 8 inches and 13 feet 9 inches. There is a small garden space provided in the northwest direction of the parking space, measuring about 6 inches and 13 feet 9 inches. The main door of this house is in the north direction. The living hall measures about 16 feet 3 inches and 16 feet, which is located in the northeast direction. The kitchen is located in the southeast direction, measuring about 10 feet 11 inches and 10 feet 4 inches, with a small storeroom facility available to store all the groceries, measuring about 4 feet 5 inches and 4 feet 2 inches. A utility is directly connected to the kitchen, measuring about 6 feet and 8 feet 10 inches.The dining hall measures about 8 feet 2 inches and 9 feet 3 inches with a background garden. A common bathroom is provided near the dining hall, measuring about 5 feet and 10 feet. The bedroom, located in the northwest direction, measures about 12 feet 10 inches and 12 feet with a dressing space availability. The steps are provided right opposite the dining hall. The setback area on the right side is about 3 feet 1 inches, at the back side it is about 2 feet 5 inches and at the left side it is about 2 feet 7 inches. This setback area ensures proper ventilation for the whole house.

The first floor consists of three bedrooms with an attached bathroom. The first bedroom in the south-east direction measures about 15 feet 7 inches and 10 feet, with an attached bathroom measuring about 5 feet 10 inches and 10 feet. The bedroom located in the north-west direction measures about 12 feet 7 inches and 12 feet, with a small dressing space available measuring about 5 feet 6 inches, with the attached bathroom measuring about 5 feet and 9 feet 11 inches. There is a bedroom provided between these two rooms measuring about 13 feet 1 inches and 10 feet.The family hall located in the northeast direction measures about 22 feet 3 inches and 11 feet 8 inches. There is attached balcony for this family hall measuring about 22 feet 7 inches and 9 feet 7 inches.

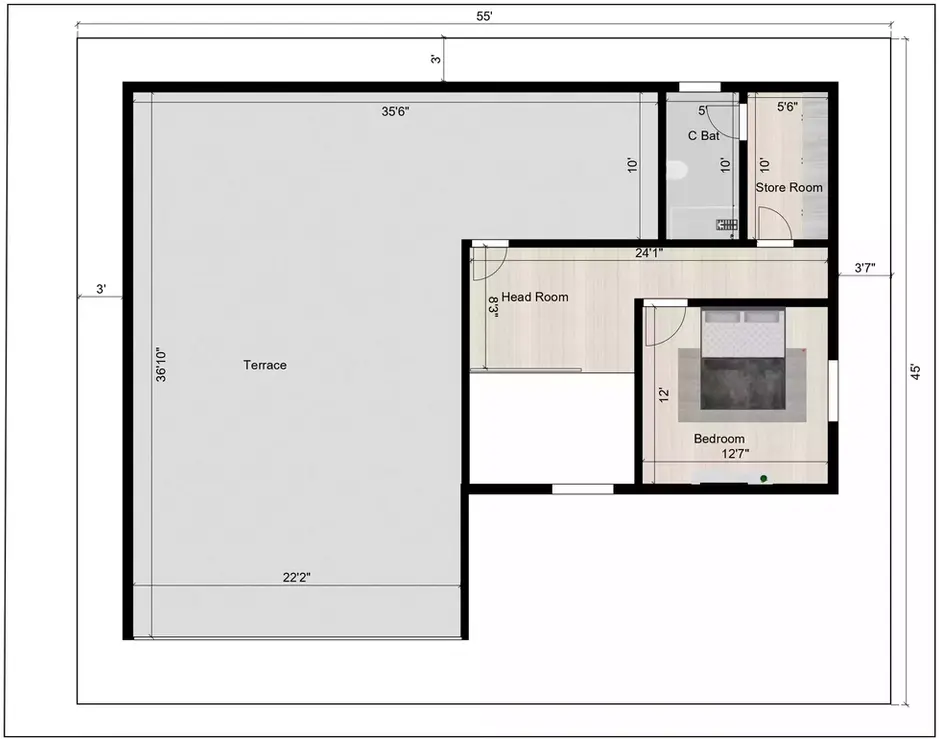

The terrace floor consists of one bedroom measuring about 12 feet 7 inches and 12 feet, with a store room measuring about 5 feet 6 inches and 10 feet, with an common bathroom measuring about 5 feet and 10 feet. The headroom measures about 24 feet 1 inches and 8 feet 3 inches. The open terrace measures about 35 feet 6 inches and 36 feet 10 inches.
