West facing 4bhk duplex western design house with parking
A west-facing 55 40, 4BHK duplex house plan with an Arabic design provided with special amenities like dining area, utility space, study room, family hall, and laundry space, and many more. So, this is a three-floor building. The ground floor consists of a spacious parking area, living hall, two bedrooms with an attached washroom, dining hall, kitchen, utility. The first floor consists of mini home theater, study room, two bedrooms along with attached washroom, family hall, and open terrace. The terrace floor consists of headroom, laundry, and large open terrace.
The ground floor consists of a spacious parking area measuring about 17 feet 2 inches and 22 feet 9 inches. The main door of this house is in the north direction. The living hall is very modern and luxurious measuring about 14 feet 5 inches and 12 feet 2 inches located in the northwest direction. There is an open dining hall provided in front of the kitchen measuring about 9 feet 3 inches and 11 feet 8 inches. The kitchen located in the southeast direction measures about 12 feet 9 inches and 11 feet 5 inches with an attached utility measuring about 5 feet 2 inches and 11 feet 3 inches.The bedroom located in the north-east direction measures about 14 feet 1 inches and 12 feet 10 inches. The bedroom located in the south-west direction measures about 11 feet 9 inches and 15 feet 9 inches, with an attached bathroom measuring about 7 feet 3 inches and 5 feet 1 inches. The setback area at left and right side is about 2 feet 6 inches and at back side is about 2 feet 2 inches. This setback area ensures that there is no problem for ventilation for whole house.

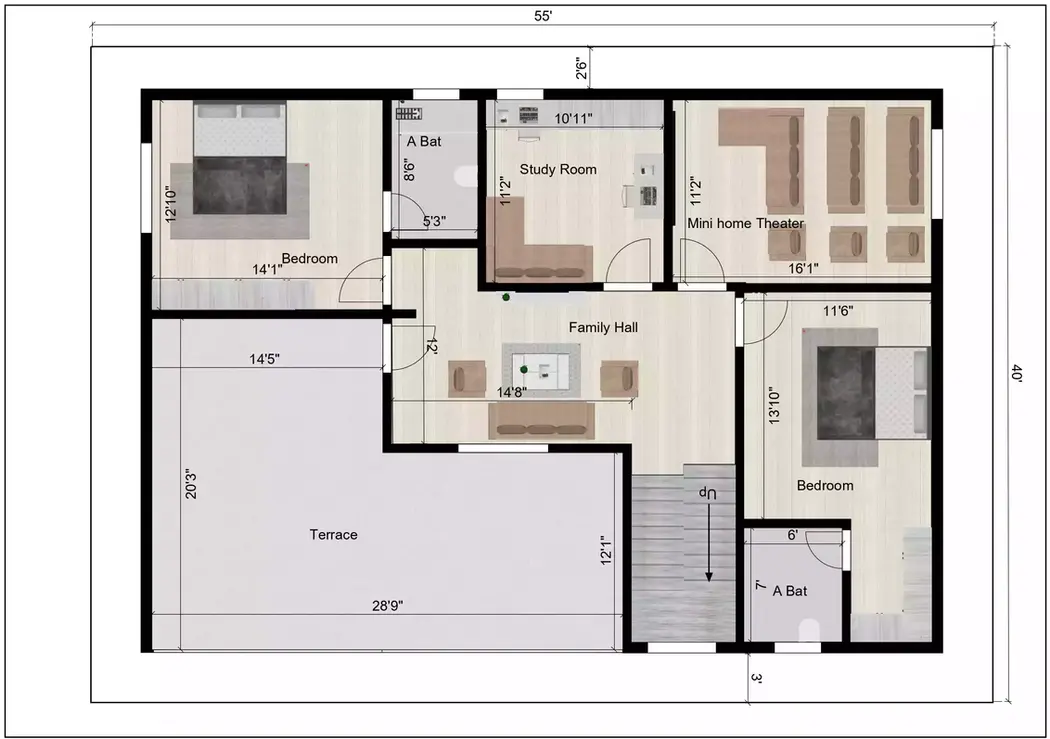

The first floor consists of two bedrooms. The first bedroom located in the northeast direction measures about 14 feet 1 inches and 12 feet 10 inches with an attached bathroom measuring about 5 feet 3 inches and 8 feet 6 inches. The mini home theater is located in the southeast direction measuring about 16 feet 1 inches and 11 feet 2 inches. There is a study room located in between these two measuring about 10 feet 11 inches and 11 feet 2 inches.The bedroom located in the southwest direction measures about 11 feet 6 inches and 13 feet 10 inches with an attached bathroom measuring about 6 feet and 7 feet. The family hall measures about 14 feet 8 inches and 12 feet with an open terrace located in the northwest direction measuring about 28 feet 9 inches and 20 feet 3 inches.
The terrace floor consists of overhead room measuring about 6 feet 4 inches and 11 feet 3 inches with a small laundry space located in the southwest direction measuring about 7 feet 9 inches and 5 feet 1 inches with a large open wide terrace measuring about 47 feet 5 inches and 27 feet 6 inches.
