North facing 5bhk vastu based duplex house plan with mini theatre, garden and parking
This is a north-facing 50x50 basto-based 5BHK duplex house plan provided with special facilities like mini home theatre, party hall, double height family hall, study room, puja room, and garden areas.
This is a three-floor building. The ground floor consists of spacious parking area, two bedrooms, along with a living area, kitchen, puja room, utility area, dining hall, and a small garden space. The first floor consists of three bedrooms, along with a study room, wide balcony, and double height facility, along with a family hall. The terrace floor consists of minimum theater, party hall, headroom, and the open terrace.
The ground floor consists of spacious parking area measuring about 19 feet 9 inches and 15 feet 7 inches. The main door of this house is towards the north direction. There is a small garden space provided near the main road measuring about 7 feet 1 inches and 10 feet 5 inches. The drawing room measures about 12 feet 4 inches and 10 feet 1 inches. The living area is very modern and spacious measuring about 14 feet and 14 feet 3 inches. There is an open dining hall measuring about 13 feet 3 inches and 8 feet 2 inches. Open modular kitchen is provided measuring about 11 feet 4 inches and 13 feet with a direct utility connected to it measuring about 11 feet 6 inches and 8 feet 8 inches.The puja room which is located near the bathing hall measures about 5 feet 1 inches and 6 feet. The bedroom in the northeast direction measures about 11 feet 6 inches and 20 feet 11 inches. The bedroom in the southwest direction measures about 16 feet 9 inches and 13 feet 3 inches with a small dressing space measuring about 6 feet 8 inches and 5 feet 8 inches along with attached bathroom measuring about 9 feet 6 inches and 5 feet 3 inches. A common bathroom is provided near the steps measuring about 10 feet 4 inches and 5 feet 3 inches. The setback area at right side is about 2 feet 10 inches, at back side it is about 2 feet 6 inches, at left side it is about 2 feet 1 inches and at front side it is about 5 feet 3 inches.

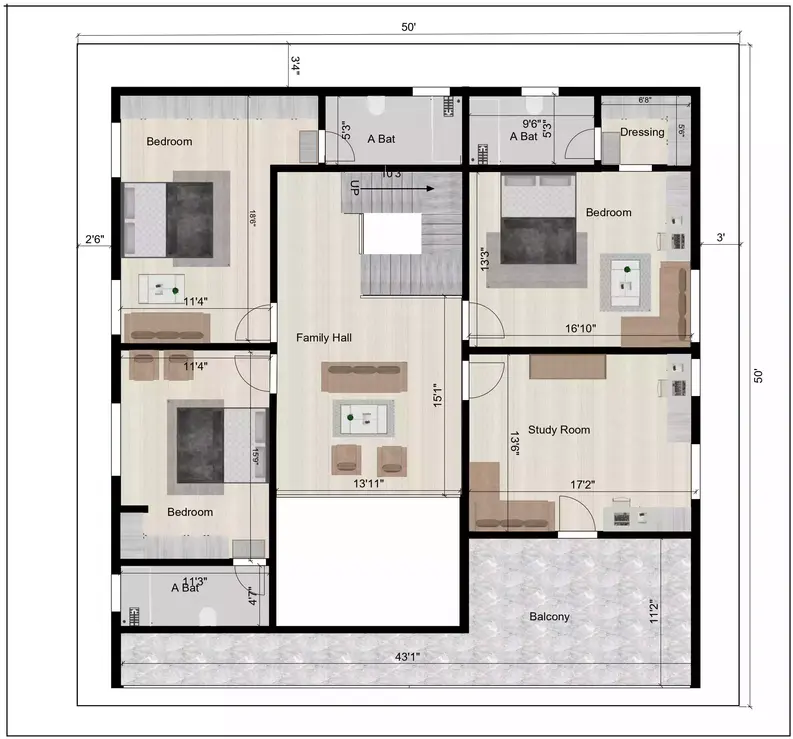

The first floor consists of three bedrooms along with attached washroom. The first bedroom, which is located in the southeast direction, measures about 11 feet 4 inches and 18 feet 6 inches, having attached bathroom measuring about 5 feet 3 inches and 10 feet 3 inches. Another bedroom, which is located in the southwest direction, measures about 16 feet 10 inches and 13 feet 3 inches, with a small dressing space measuring about 6 feet 8 inches and 5 feet 6 inches, with attached bathroom measuring about 9 feet 6 inches and 5 feet 3 inches. The family hall is very spacious, measuring about 13 feet 11 inches and 15 feet 1 inches.The bedroom which is located in the northeast direction measures about 11 feet 4 inches and 15 feet 9 inches with attached bathroom measuring about 11 feet 3 inches and 4 feet 7 inches. The balcony measures about 43 feet 1 inches and 11 feet 2 inches which is directly connected to the study room. Study room is directly connected to the family hall measuring about 17 feet 2 inches and 13 feet 6 inches.
The terrace floor consists of mini home theater measuring about 11 feet 4 inches and 19 feet 9 inches, having a common bathroom near the headroom measuring about 14 feet and 5 feet 3 inches, the headroom measures about 6 feet 6 inches and 9 feet 4 inches, the party hall measures about 16 feet 10 inches and 15 feet 1 inches, with a utility area measuring about 10 feet 3 inches and 5 feet 3 inches. There is an open terrace measuring about 31 feet 4 inches and 25 feet 2 inches.
