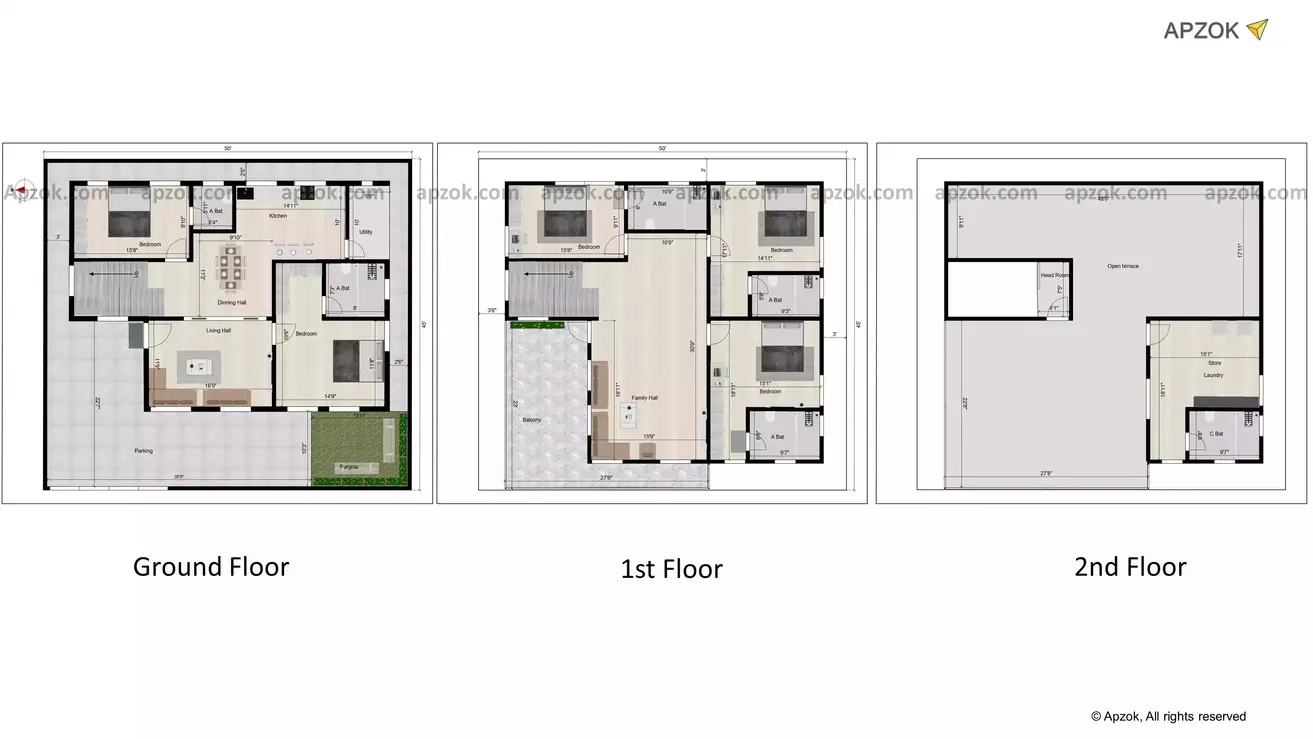

50 x 45 ft House Plan Duplex West Facing Plot Incorporating A G+2 Floor Layout

This is a west-facing 50 * 45, 5BHK duplex house consisting of special amenities like the garden area, balcony, laundry space, and many more. This is a three-floor building. The ground floor consists of two bedrooms, living area, wild parking area, garden space, kitchen, utility. The first floor consists of balcony, family hall, three bedrooms with attached washroom, and the terrace floor consists of one laundry room along with a common bathroom.

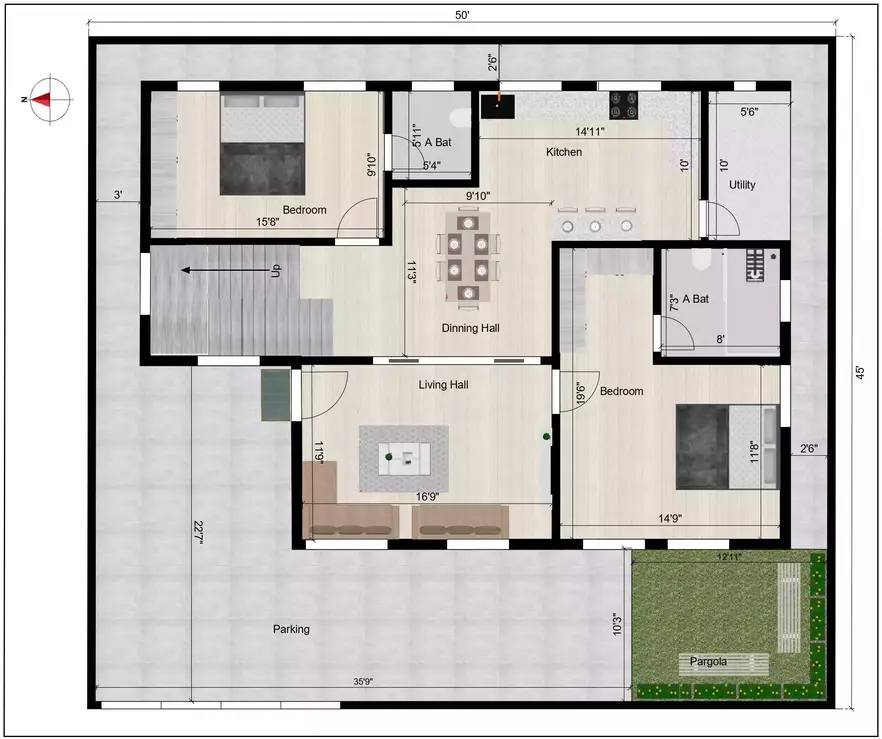

The ground floor consists of spacious parking which is sufficient to park the vehicles or multiple cars. The parking area measures about 35 feet 9 inches and 22 feet 7 inches. In the southwest corner of the parking area, there is a garden space measuring about 12 feet 11 inches and 10 feet 3 inches. The main door of this house is towards north direction. The living area measures about 16 feet 9 inches and 11 feet 9 inches. The bathroom in the southwest direction measures about 14 feet 9 inches and 11 feet 8 inches. The attached bathroom measures about 8 feet and 7 feet 3 inches. Open dining hall is provided measuring about 11 feet 3 inches and 9 feet 10 inches.

The bedroom in the north east direction measures about 15 feet 8 inches and 9 feet 10 inches with attached bathroom measuring about 5 feet 4 inches and 5 feet 11 inches. The kitchen is located in the southeast direction measuring about 14 feet 11 inches and 10 feet having a direct connection with the utility measuring about 5 feet 6 inches and 10 feet. The setback area at back side is 2 feet 6 inches and at right side it is 2 feet 6 inches at left side it is 3 feet.

The first bedroom located in the northeast direction measures about 15 feet 8 inches and 9 feet 11 inches with attached bathroom measuring about 10 feet 9 inches and 6 feet. Another bedroom located in the southeast direction measures about 14 feet 11 inches and 17 feet 11 inches with attached bathroom measuring about 9 feet 3 inches and 5 feet 8 inches.The bedroom located in the southwest direction measures about 15 feet 1 inches and 18 feet 11 inches with attached bathroom measuring about 9 feet 7 inches and 6 feet 8 inches. The family hall measures about 15 feet 9 inches and 18 feet 11 inches with attached balcony measuring about 27 feet 8 inches and 23 feet.

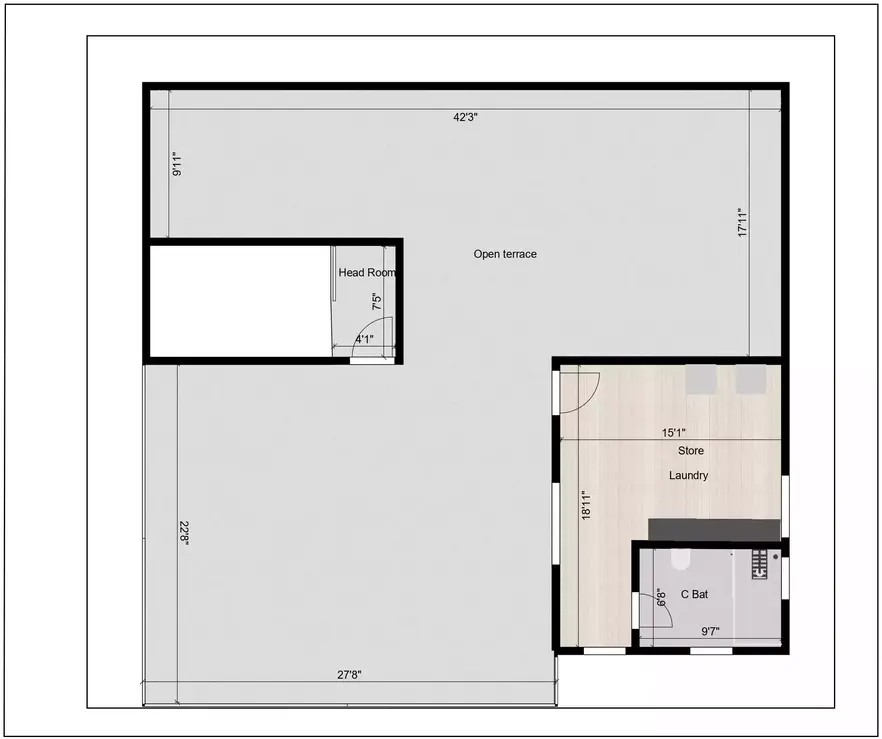

The terrace floor consists of a laundry space measuring about 15 feet 1 inches and 18 feet 11 inches with the common bathroom measuring about 9 feet 7 inches and 6 feet 8 inches. Open terrace measures about 42 feet 3 inches and 17 feet 11 inches.
