Complete 2D House Plan Layout
Arabic Western design 2 portion 2bhk Rental house plan with 1 servant room in Ground floor along with spacious Parking alongside Lift

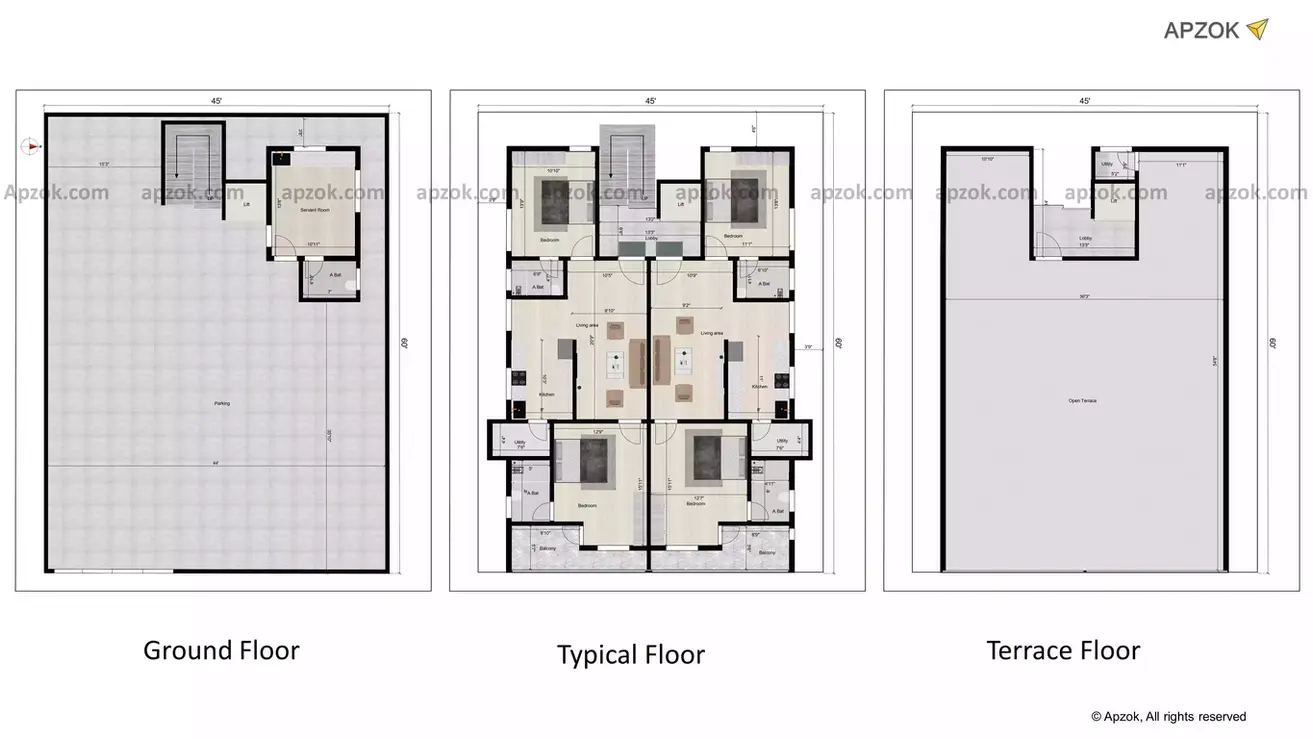

This is a east facing 45 by 60 2BHK rental house plan basically constructed to develop a high rental income. This is a three-floor building. The ground floor consists of spacious parking where you can park all the car vehicles of the rental house along with one servant room. The typical floor consists of two 2BHK rental units. The terrace floor consists of open terrace. This house is also provided with a lift facility.
The ground floor consists of spacious parking area measuring 44 feet and 35 feet 10 inches and the servant room is located in the northwest direction measuring 10 feet 7 inches and 13 feet 8 inches with a small kitchen area in it. The main door of the servant house is in east direction with attached bathroom measuring 7 feet and 4 feet 10 inches. The setback area in the right side it is 3 feet 3 inches in left side also it is 3 feet 3 inches at back side it is 3 feet 8 inches.
The first floor consists of 2 BHK 2 rental units. The first rental unit, the space in front of the window is 13 feet 3 inches and 6 feet 8 inches for both the houses. The living area of the first 2 BHK rental house measures about 9 feet 10 inches and 20 feet 9 inches. Kitchen in the south east direction measures 8 feet and 10 feet 3 inches. Bedroom in the south west direction measures about 10 feet 10 inches and 13 feet 9 inches with an attached bathroom measuring 6 feet 9 inches and 4 feet 7 inches. The bedroom in the south east direction measures about 12 feet 9 inches and 58 feet 11 inches with an attached bathroom measuring 5 feet and 8 feet with an attached balcony measuring 8 feet 10 inches and 5 feet 7 inches.The living area of the second rental house is 9 feet 2 inches and 10 feet 9 inches. The kitchen in the northeast direction measures about 8 feet and 11 feet. The first bedroom in the northwest direction measures 11 feet 1 inches and 13 feet 8 inches, with an attached bathroom measuring 6 feet 10 inches and 4 feet 11 inches. The bedroom in the northeast direction measures about 12 feet 7 inches and 15 feet 11 inches, with an attached bathroom measuring 4 feet 11 inches and 8 feet, with an attached balcony measuring 8 feet 9 inches and 5 feet 6 inches.
The terrace floor consists of spacious open terrace measuring 36 feet 3 inches and 54 feet 8 inches. A small utility is also provided in the terrace floor measuring 5 feet 2 inches and 3 feet 8 inches.
