45 x 50 ft House Map Duplex Plan Of The Residential Building Facing In West Direction

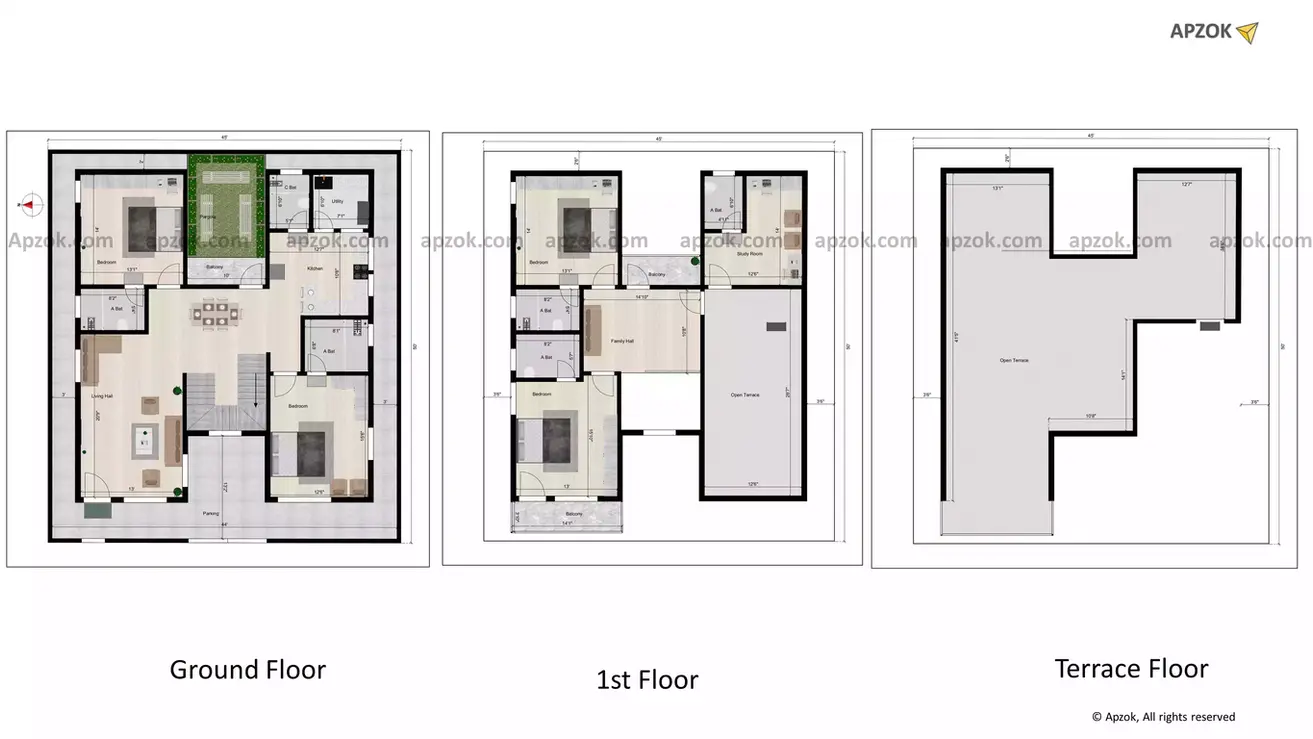

This is a west-facing, 45 x 50 feet, 4BHK duplex house plan constructed with special amenities like utility area, study room, balcony, family hall, and many more. This is a three-floor building. The ground floor consists of two bedrooms with a garden facility, balcony facility, kitchen, living hall, dining hall, and many more. The first floor consists of two bedrooms with attached washroom, family hall, study room, and open terrace. The terrace floor consists of open terrace.

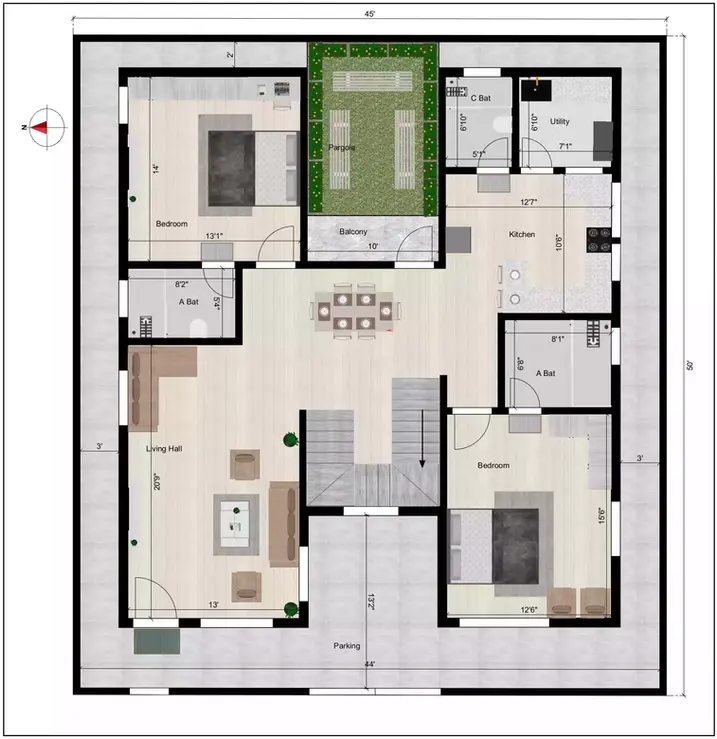

The ground floor consists of a parking area measuring about 44 feet and 13 feet 2 inches. The main door is in the west direction. The living area measures about 13 feet and 20 feet 9 inches. The bedroom in the southwest direction measures about 12 feet 6 inches and 15 feet 6 inches with an attached bathroom measuring 8 feet 1 inches and 6 feet 1 inches. The kitchen in the southeast direction measures about 12 feet 7 inches and 10 feet 6 inches. The utility area measures about 7 feet 1 inches and 6 feet 10 inches directly connected to the kitchen.Common bathroom measures about 5 feet, 1 inches, and 6 feet, 10 inches near the utility area. A small garden space is also provided in front of the dining hall. The bedroom in the northeast direction measures about 13 feet, 1 inches, and 14 feet, with an attached bathroom measuring 8 feet, 2 inches, and 5 feet, 4 inches. The sit-back area in left and right side is 3 feet, at back side it is 2 feet.

The first floor consists of two bedrooms. The first bedroom in the northeast direction measures about 13 feet, 1 inches, and 14 feet with an attached bathroom measuring 8 feet, 2 inches, and 5 feet, 4 inches. The study room is located in the southeast direction measuring 12 feet, 6 inches, and 14 feet with an attached bathroom measuring 4 feet, 11 inches, and 6 feet, 10 inches. A small balcony is provided in between these two. The family hall measures about 14 feet, 10 inches, and 10 feet, 8 inches. The bedroom in the northwest direction measures about 13 feet, and 15 feet, 10 inches with an attached bathroom measuring 8 feet, 2 inches, and 5 feet, 7 inches. The balcony measures about 14 feet, 1 inches, and 3 feet, 10 inches. Open terrace measures about 12 feet, 6 inches, and 26 feet, 7 inches in the southwest direction.

The terrace floor consists of open terrace measuring 13 feet 1 inches and 45 feet 5 inches
