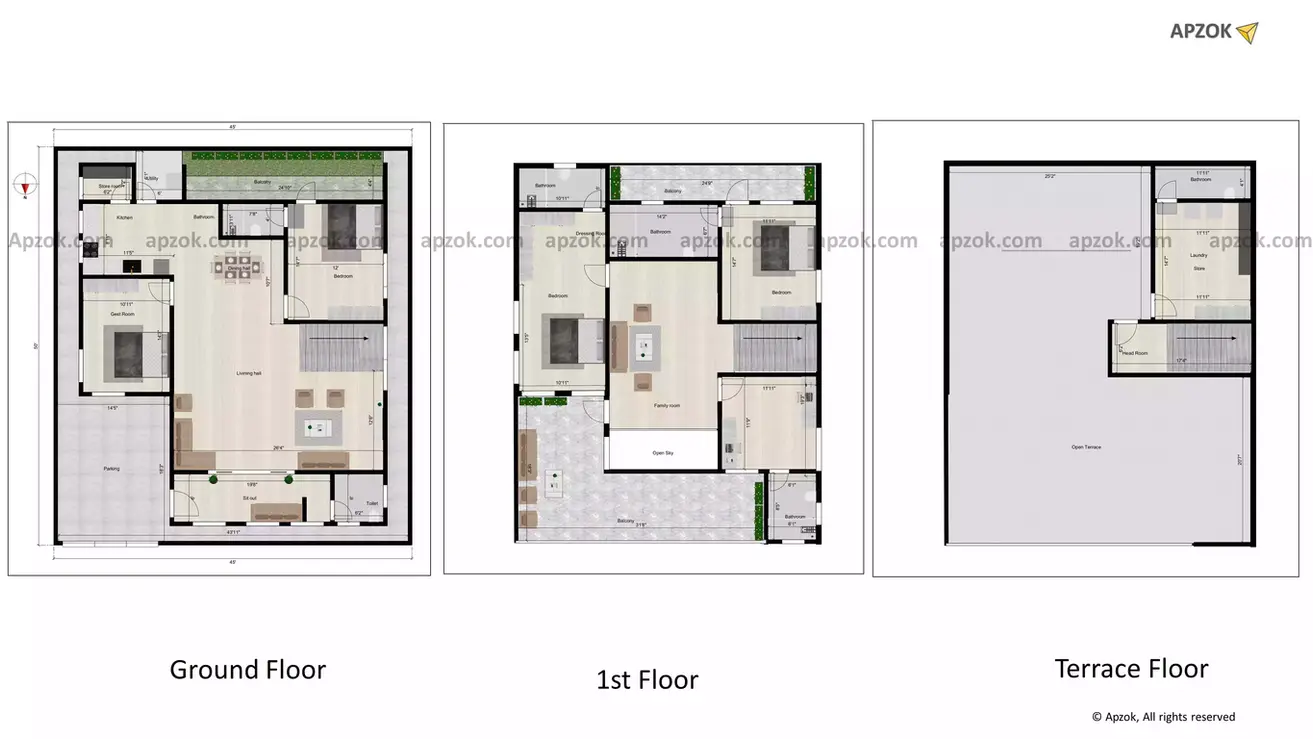

45 x 50 ft Home Design Duplex Plan Of The Residential Building Facing In North Direction

This is a north-facing 45x50 4BHK duplex house plan provided with special amenities like huge parking area, garden space, sit-out space, laundry space, and study room. This is a 3-floor building. The ground floor consists of 2 bedrooms along with attached washroom, living area, sit-out, kitchen, and garden space. The first floor consists of 2 bedrooms along with attached washroom, balcony, study room, and family area. The terrace floor consists of open terrace along with a laundry space.

The ground floor consists of a spacious parking area measuring about 14 feet 5 inches and 16 feet 3 inches. The parking is located in the northeast direction. The main door is in the east direction. The sit-out area measures about 19 feet 8 inches and 6 feet with an attached toilet measuring 6 feet 2 inches and 6 feet. The living area is very spacious measuring about 26 feet 4 inches and 12 feet 6 inches. The guest bedroom measures about 10 feet 11 inches and 14 feet 3 inches. Kitchen in the southeast direction measures about 11 feet 5 inches and 8 feet 11 inches.The storeroom directly connected to the kitchen in the southeast direction measures about 6 feet 2 inches and 4 feet 2 inches. Utility area measures about 6 feet and 6 feet 1 inches. The dining hall measures about 10 feet 7 inches wide. The bedroom in the southwest direction measures about 12 feet and 14 feet 7 inches with an attached bathroom measuring 7 feet 8 inches and 3 feet 11 inches. The balcony measures about 24 feet 10 inches and 4 feet 4 inches. The setback area in right side is 2 feet and at back side it is 6 feet 1 inches.

The first floor consists of two bedrooms. The first bedroom in the southwest direction measures about 11 feet 11 inches and 14 feet 7 inches with an attached balcony measuring about 24 feet 9 inches. The attached bathroom measures about 14 feet 2 inches and 6 feet 7 inches. The bedroom in the southeast direction measures about 10 feet 11 inches and 13 feet 5 inches along with the dressing room facility. The bathroom in the southeast direction measures about 10 feet 11 inches and 5 feet. The study room measures about 10 feet 11 inches and 11 feet 9 inches. The balcony area connected to the family area measures about 31 feet 8 inches and 18 feet 3 inches. The study room have an attached washroom in the northwest direction measuring about 6 feet 1 inches and 8 feet 5 inches.

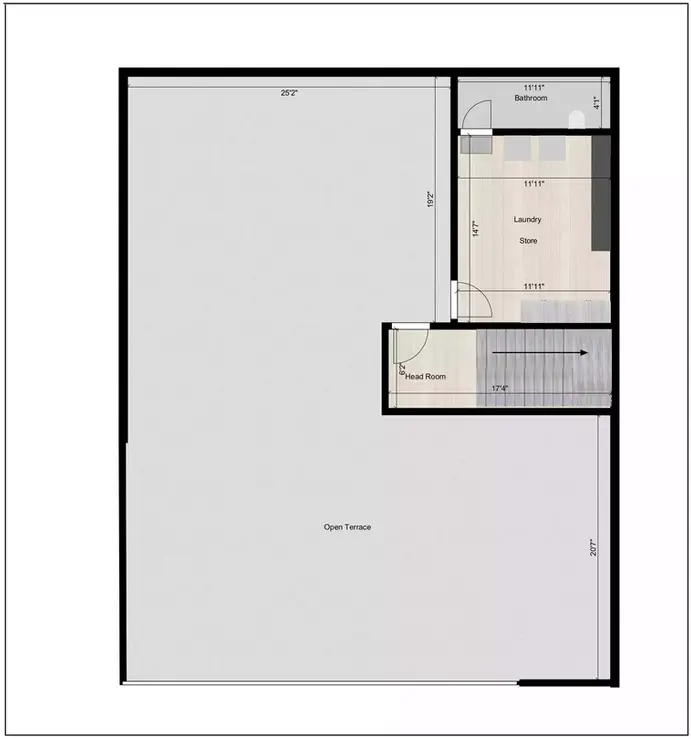

The terrace floor consists of spacious open terrace measuring about 25 feet 2 inches and 20 feet 7 inches. The laundry room located in the southwest direction measures about 11 feet 11 inches and 14 feet 7 inches, with an attached bathroom measuring about 11 feet 11 inches and 4 feet 1 inches. The headroom measures about 17 feet 4 inches and 6 feet 2 inches.
