Complete 2D House Plan Layout

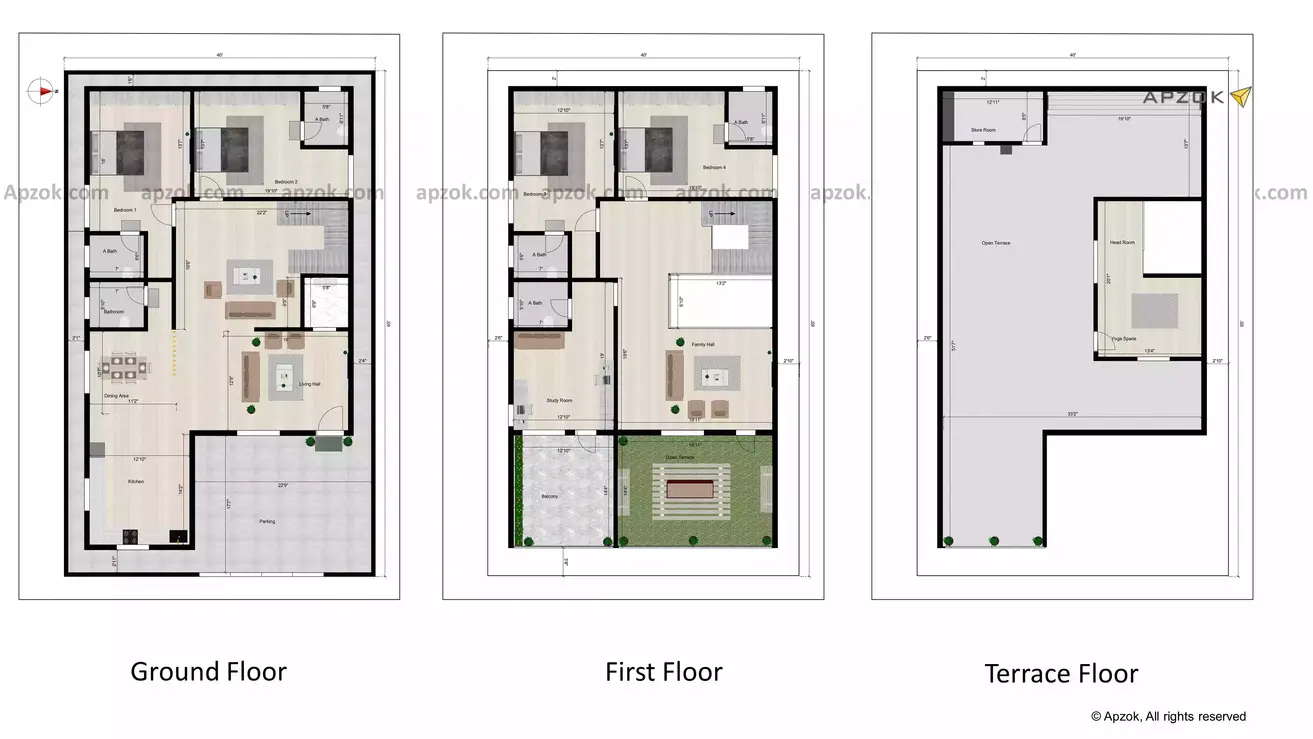

East Facing 4BHK Duplex House Plan with parking and Garden
This is an east-facing, 40 x 65, Vastu-based, 4 BHK duplex house plan provided with special amenities like a study room, balcony area, garden facility, yoga hall, double height, and a spacious parking area. This is a three-floor building, ground floor, first floor, and the terrace floor. Ground floor consists of two bedrooms along with kitchen, dining hall, living area, family hall, puja room, and wide parking area. The terrace floor consists of spacious open terrace, storeroom, headroom, along with a yoga room.
Ground floor consist of spacious parking.The main door of this house is in East direction. The living hall is in North-East direction measuring about 16 feet and 12 feet 9 inches. The puja room measures about 5 feet 8 inches and 6 feet 9 inches. The family hall measures about 22 feet 2 inches and 16 feet 6 inches. The first bedroom measures about 18 feet and 13 feet 7 inches with an attached bathroom measuring about 7 feet and 5 feet 8 inches. The dining area measures about 11 feet 2 inches and 10 feet 7 inches. Having a common bathroom measuring about 7 feet and 5 feet 10 inches. The kitchen located in the South-East direction measures about 12 feet 10 inches and 14 feet 2 inches. The setback area at left side is 2 feet 1 inches, at right side it is 2 feet 4 inches, at back side it is 1 feet 6 inches and in the front side it is 2 feet 11 inches.
The terrace floor consists of a small storeroom measuring about 12 feet 11 inches and 6 feet 5 inches in the south-west direction. Even cloth drawers are also provided in the terrace floor. A headroom is provided measuring about 13 feet 4 inches and 20 feet 11 inches along with a yoga room. Open terrace measures about 51 feet 7 inches and 33 feet 2 inches.
The first floor consists of third bedroom which measures about 12 feet 10 inches and 13 feet 7 inches having an attached washroom measuring about 7 feet and 5 feet 6 inches. The bedroom 4 measures about 19 feet 10 inches and 13 feet 7 inches with an attached bathroom measuring about 5 feet 8 inches and 6 feet 11 inches. The study room measures about 12 feet 10 inches and 19 feet having an attached bathroom measuring 7 feet and 5 feet 10 inches. A family hall measures about 19 feet 11 inches and 19 feet 6 inches. Balcony measures about 12 feet and 10 inches and 14 feet 4 inches having open terrace garden measuring 19 feet 11 inches and 14 feet 4 inches.
