40 x 60 ft Duplex House Plan South Facing With Arabic Western Style

This is a south-facing 40 BY60 5BHK duplex house plan built with luxury and functionality in mind, provided with special amenities like home theatre, family hall, study room, garden, and many more. This is a three-floor building. The ground floor consists of 2BHK along with kitchen, dining hall, living area, and drawing room. The first floor consists of two bedrooms along with the family hall, mini home theatre, and study room. The second floor consists of one bedroom along with a wide terrace.

The ground floor consists of a spacious parking area measuring about 20 feet 6 inches and 8 feet 3 inches towards the southwest direction. There is a small garden located in the southeast direction. The main door of this house is in the south direction. The drawing room measures about 12 feet 10 inches and 12 feet 1 inches. The living area measures about 20 feet 6 inches and 15 feet 11 inches. The bedroom located in the northwest direction measures about 13 feet 5 inches and 13 feet 2 inches. The bedroom in the northeast direction measures about 13 feet 7 inches and 13 feet 2 inches with a common bathroom measuring about 9 feet 6 inches and 4 feet 6 inches. The kitchen is located in the southeast direction measuring about 12 feet 7 inches and 16 feet 4 inches along with the dining hall. The setback area at back side it is 2 feet 3 inches at right side it is 2 feet 8 inches.

The first floor consists of two bedrooms. The first bedroom in the northwest direction measures about 13 feet 5 inches and 13 feet 2 inches, with an attached bathroom measuring about 4 feet 10 inches and 8 feet 1 inches. Another bedroom in the northeast direction measures about 13 feet 7 inches and 13 feet 2 inches, with an attached bathroom measuring about 9 feet 6 inches and 4 feet 6 inches. A common bathroom is provided near the laundry area measuring about 9 feet 6 inches and 4 feet 6 inches.

The family hall measures about 20 feet and 11 feet 11 inches. The laundry area measures about 12 feet 6 inches and 11 feet 1 inches. Mini home theater in the southwest direction measures about 19 feet 11 inches and 11 feet 11 inches, along with an attached balcony measuring about 23 feet 2 inches and 3 feet 9 inches. The study room in the southeast direction measures about 12 feet 3 inches and 12 feet 1 inches.

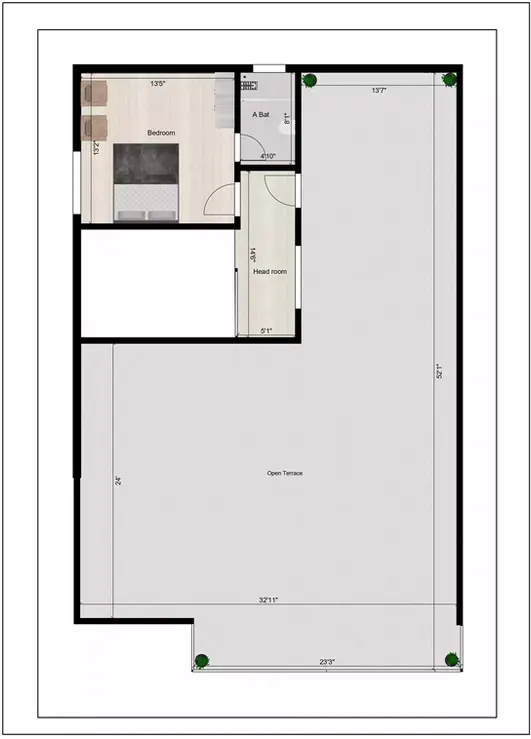

This terrace floor consists of one bedroom measuring 13 feet 5 inches and 13 feet 2 inches located in the northwest direction, have a attached bathroom measuring about 4 feet 10 inches and 8 feet 1 inches. The headroom measures about 5 feet 1 inches and 14 feet 6 inches. The terrace measures about 32 feet 11 inches and 52 feet 1 inches.
