Complete 2D House Plan Layout
Vastu-based 4BHK east-facing duplex house with parking
This is a east-facing 40 50 feet 4BHK duplex house plan constructed based on the principles of Vastu provided with special amenities like puja room, study room, family hall, balcony, gym area, and many more. This is a three-floor building. The ground floor consists of spacious parking area along with two bedrooms, puja room, kitchen, and spacious living hall. The first floor consists of two bedrooms with attached washroom, study room, balcony, and the family hall. The terrace floor consists of spacious open terrace along with the gym area and laundry room.

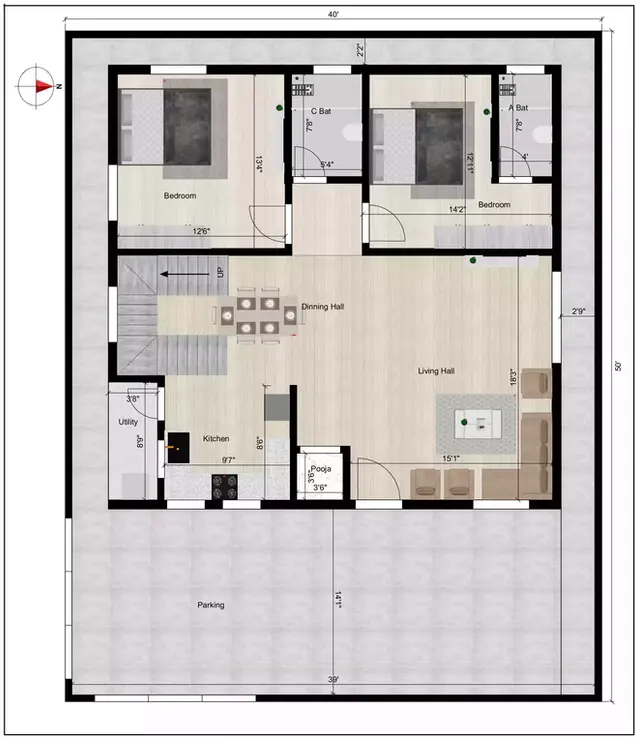

The ground floor consists of a spacious parking area measuring about 39 feet and 13 feet 11 inches. The main door of this house is in the east direction. The living area measures about 19 feet and 18 feet 3 inches along with the puja room measuring about 3 feet 6 inches and 3 feet 6 inches. The kitchen in the southeast direction measures about 9 feet 7 inches and 8 feet 6 inches with the utility area measuring about 3 feet 8 inches and 8 feet 9 inches. The first bedroom in the southwest direction measures about 18 feet 3 inches and 13 feet with an attached bathroom measuring 5 feet 4 inches and 7 feet 8 inches. The bedroom in the northwest direction measures about 13 feet 8 inches and 13 feet 3 inches with an attached bathroom measuring 4 feet and 7 feet 8 inches. The setback area at back side is 2 feet 1 inches.
The first floor consists of three bedrooms. The first bedroom in the southwest direction measures about 18 feet 3 inches and 12 feet 11 inches with an attached bathroom measuring 5 feet 4 inches and 7 feet 8 inches. The bedroom in the northwest direction measures about 13 feet 8 inches and 13 feet with an attached bathroom measuring 4 feet and 7 feet 8 inches. The study room in the Northwest direction measures about 9 feet 1 inches and 13 feet range along with attached balcony measuring 4 feet 5 inches and 13 feet.The bedroom in the southeast direction measuring 13 feet 2 inches and 14 feet 9 inches with an attached bathroom measuring 8 feet 8 inches and 4 feet 9 inches.
The terrace floor consists of spacious terraces measuring about 13 feet 8 inches and 38 feet 2 inches. The headroom measures about 8 feet 11 inches wide. The laundry room measures about 5 feet 4 inches and 13 feet. The gym measures about 12 feet 6 inches and 13 feet located in the southwest direction.
