Complete 2D House Plan Layout
Duplex modern house design 3bhk east facing plan with car parking
This is a east-facing 40' 45' ft 3BHK duplex house plan provided with the special features like double height, family hall, balcony, open terrace, headroom, and many more. This is a three-floor building. The ground floor consists of spacious parking area, living hall, one bedroom with attached washroom, kitchen, and the utility area. The typical floor consists of two bedrooms with attached washroom, family hall, and the balcony. The terrace floor consists of open terrace along with the headroom.

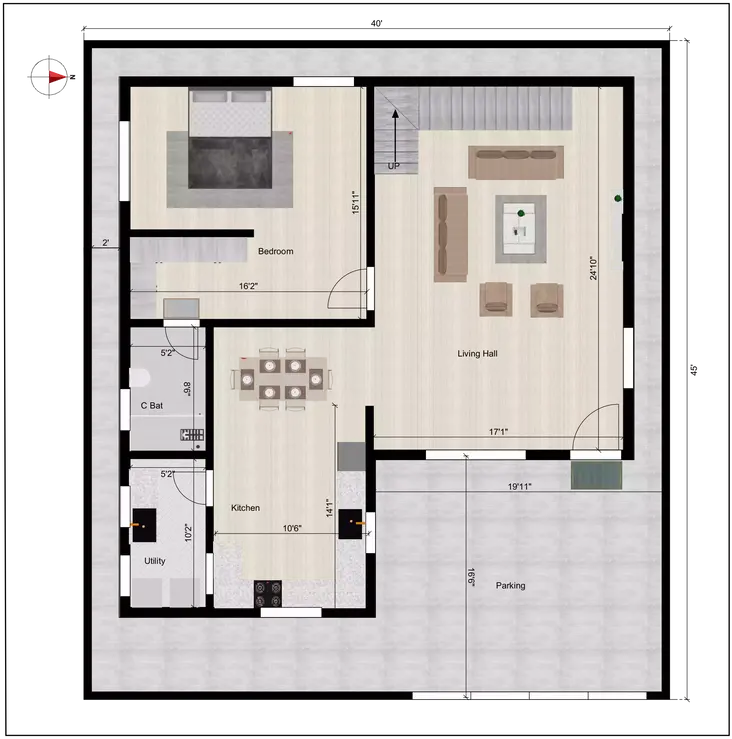

The ground floor parking area measuring about 19 feet, 11 inches, and 10 feet, 6 inches. The main door is in east direction. The living wall measures about 17 feet, 1 inches, and 24 feet, 10 inches, located in northeast direction.The kitchen, located in the southeast direction, measures about 10 feet 6 inches and 14 feet 1 inches, with attached utility measuring about 5 feet 2 inches and 10 feet 2 inches. The bedroom, in the southwest direction, measures about 16 feet 2 inches and 15 feet 11 inches, with a common bathroom measuring 5 feet 2 inches and 8 feet 6 inches. The setback area in all three sites is 2 feet.
The first floor bedroom in the southwest direction measures about 16 feet 3 inches and 15 feet 11 inches, with attached bathroom measuring 5 feet 3 inches and 8 feet 6 inches. The second bedroom in the southeast direction measures about 10 feet 6 inches and 19 feet 2 inches, with attached bathroom measuring 5 feet 3 inches and 10 feet 2 inches.The family hall measures about 17 feet 1 inches and 24 feet 10 inches along with the double height. Having an attached balcony measuring about 17 feet 1 inches and 10 feet 6 inches.

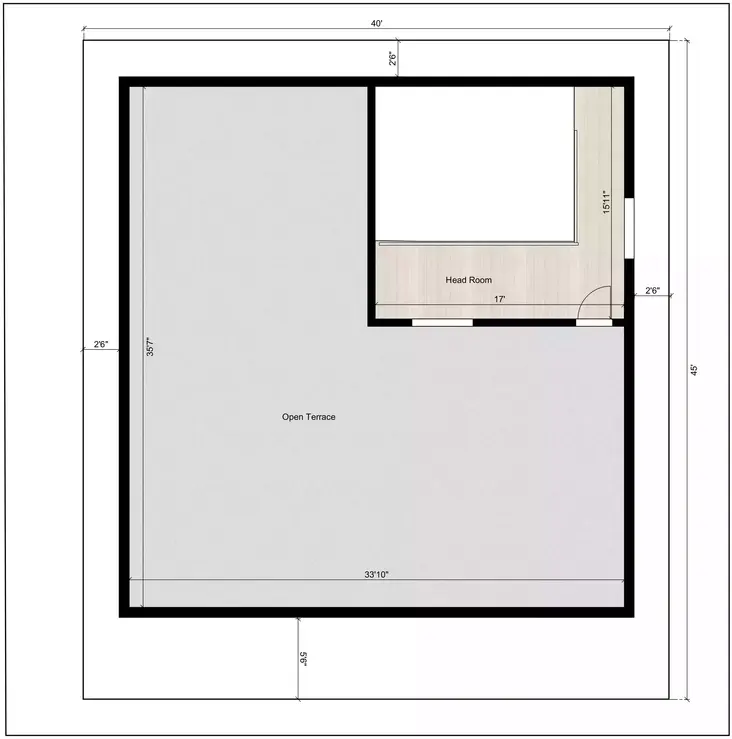

The terrace floor open terraces measuring about 33 feet 10 inches and 35 feet 7 inches with the headroom measuring about 17 feet and 15 feet 11 inches.
