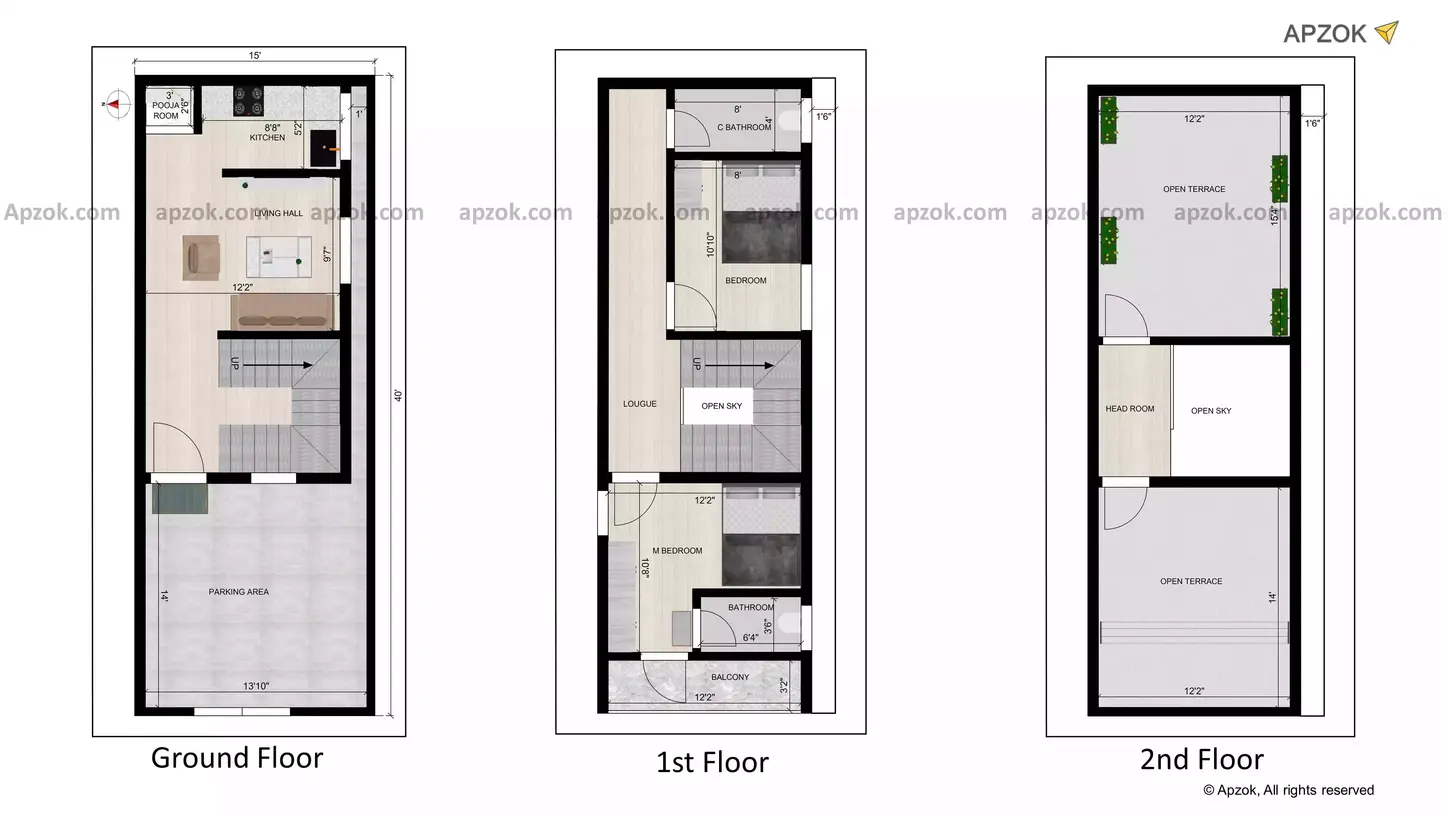

The 15 * 40 house design duplex plan of the Residential Building size is 15’ x 40 feet and facing West direction. This is a duplex plan With G+1 floor. Here Ground floor includes utility area around 1’, parking area for car or bike standing, then main door placed at north west direction, stairs in south direction which moves up in north direction, living hall and open kitchen along with Pooja room is provided. The First floor includes utility area around 1’6”, lougue is present in front of stairs, open sky view at middle of stairs, 1 master bedroom with attached bathroom and balcony. The we have spacious open terrace for sitting, resting, chatting and gardening purposes. Here also provided ventilation and windows for proper light and air.Next come for measurement and detailing in feet and inches of the duplex building plan.

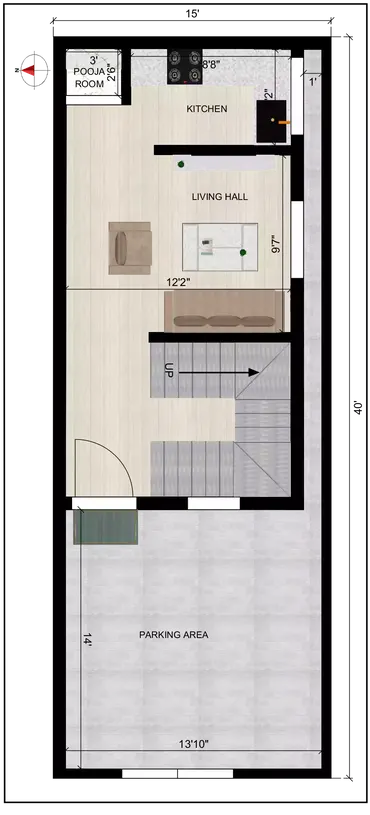

Ground floor

In this 15 * 40 house design duplex plan which ground floor consists of parking size of 14' x 13'10'', then main door placed at north west direction, stairs in south direction which moves up in north direction and living hall size of 12'2'' x 9'7'' in south direction.

Provided in this plan are an open kitchen measuring 8’8” x 4’2” in the southeast direction along with a Pooja room measuring 3’ x 2’6” in the northeast direction.

First floor Coming from stairs in the south direction we see a lougue in the north direction is present in front of stairs, and the open sky view situated in the middle of the stairs. There is also 1-bedroom measuring 8’ x 10’10” in the south east direction along with 1 common bathroom measuring 8’ x 4’. In this 15 * 40 house design duplex plan, provided are Master bedroom measuring 12’2” x 10’8” in southwest direction with attached bathroom 6’4” x 3’6”, and balcony measuring 12’2” x 3’2”.

Terrace

We have head room after coming from stairs, and spacious open terrace size 12’2” x 14’ in west direction and 12’2” x 15’4” in east direction.
