Complete 2D House Plan Layout

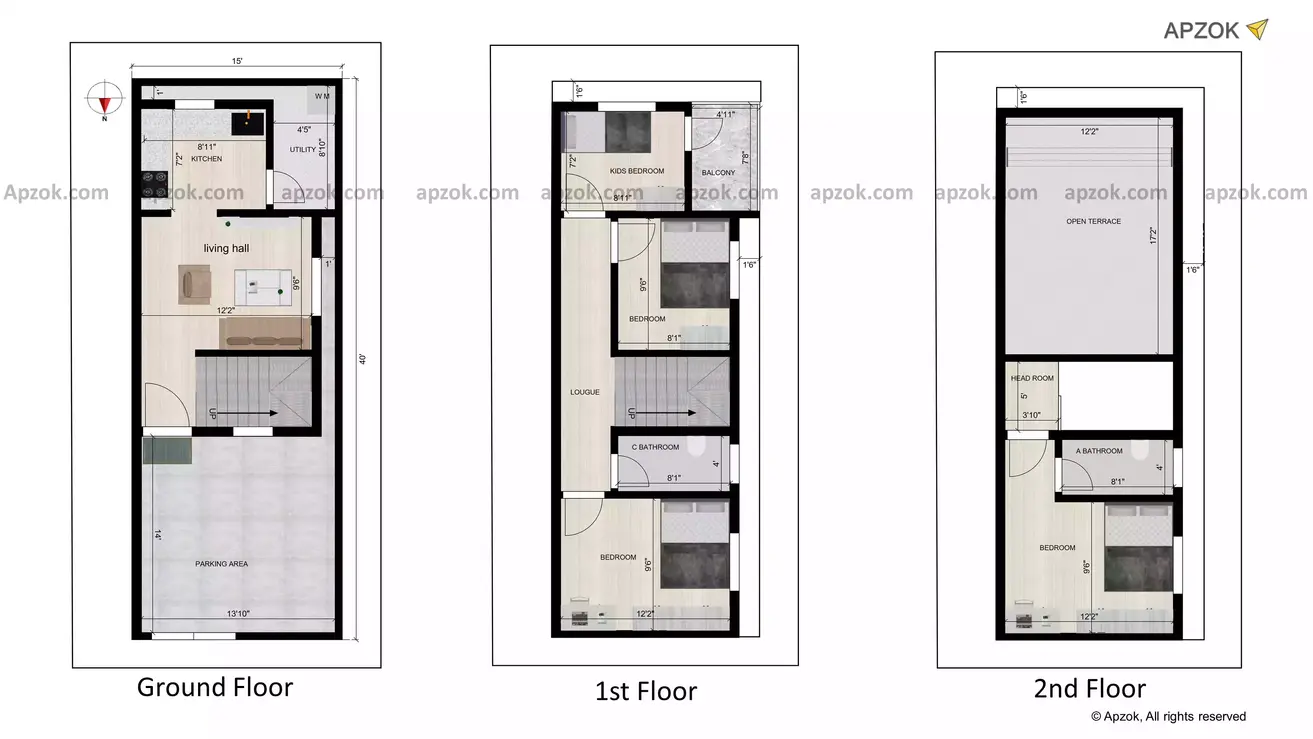

North face duplex house plan 4 bedroom with car parking
The 15 x 40 ft (4.5 x 12.19 m) plot is designed for duplex plan which face North. The layout out of this house is structured with Ground + 2 Floor. Here plan is efficiently utilizes the spaces with covering all the elements that can be fit for modern urban families.
Ground floor
Ground floor covers parking area 13.8 x 14.0 ft offering more spacious for both car and two wheelers. The main door placed at the northeast direction which face north that direct connect to the living hall.
Duplex stairs is in the northwest direction which moves to the east side that led to the upper floors. An open kitchen size of 8.9 x 7.2 ft is situated in the southeast direction which is compact and modular style along with attached utility size of 4.4 x 8.8 ft is used for laundry or any storage.
First floor
Next move to the first floor, lounge is provided which interconnect all the space that will be ease to navigate all the area. Beside stairs the common bathroom size of 4.0 x 8.0 ft which is ease accessible to all.
Bedroom size of 12.2 x 9.6 ft in the northwest direction which is spacious and ample living space. Another bedroom size of 8.0 x 9.6 ft in the west which is private and peaceful sleep.
Kids bedroom size of 7.2 x 8.9 ft in the southeast which be comfort and secured along with balcony size of 4.0 x 7.7 ft in the southwest direction which is ideal for gardening.
Second floor
An open terrace size of 12.2 x 17.1 ft in the south is situated for relaxation and leisure and functions as sitting area, small gatherings or enjoying under open sky.
Headroom size of 5.0 x 3.8 ft which direct connect to the terrace, a bedroom size of 12.2 x 9.6 ft in the northwest direction with attached bathroom size of 4.0 x 8.0 ft which can be used for resident or guests.
