Complete 2D House Plan Layout
3bhk duplex house plan west facing with 3bhk ground floor, 1hk rent
West facing duplex home design is constructed on 15 x 50 ft (4.5 x 15.24 m) with three floors. The layout of the house is well organized working spaces, comfortable living spaces and the elegant design features that area favourable for family use or rental purposes. Each floor has been thoughtfully developed to provide privacy, utility and family interaction. The third floor design for spacious open terrace for relaxation and entertainment for improving the living experience.

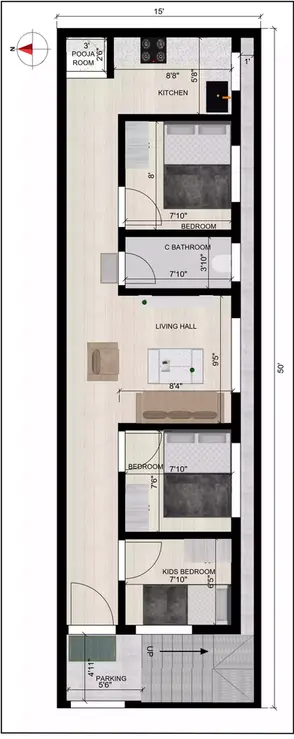

Ground floor
Ground floor covers parking area measuring 4’11 x 5.6 ft is situated in the north which enough space for bike stand. The main entrance is on the northwest for good access. Kids bedroom measures 7.10 x 6.5 ft paced in the southwest direction which is comfort for children. Bedroom size of 7.6 x 7.10 ft at the southern part provides ample living space and privacy. Living hall is centrally located in the south measuring 8.4 x 9.5 ft provides social gathering for relaxation. An open kitchen measures 8.8 x 5.8 ft placed in the southeast corner provides both cooking and dining function. Pooja room measures 3 x 2.6 ft in the northeast corner ideal for prayer or worship. Another bedroom size of 7.10 x 8 ft is placed in the southeast to provide availability of additional sleeping space. The common bathroom located in the south with size of 7.10 x 3.10 ft which is easily continence to all the rooms. Stairs is in the south which allowing access to the west east.

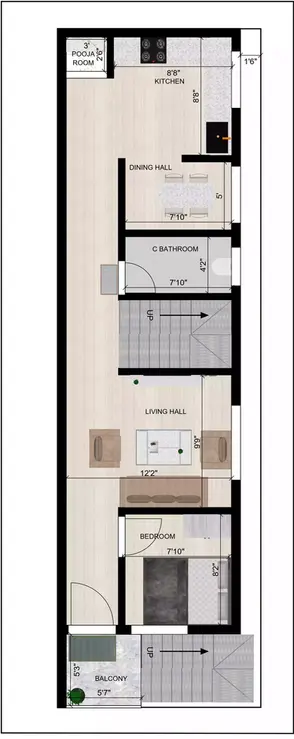

First floor
A balcony is small outdoor seating area measuring 5.3 x 5.6 ft. Duplex design in the floor which elevates the modern living environment. Stairs is in the south direction which easily access to the upper floors. Bedroom size of 7.10 x 8.2 ft is placed in the southwest providing privacy and comfort. The common bathroom measures 7.10 x 4.2 ft is provided near stairs. The living hall is centrally located in the south measuring 12.2 x 9.9 ft ideal for family gatherings. An open kitchen size of 8.8 x 8.8 ft in the southeast along with diing hall is provided which measuring 5 x 7.10 ft. Pooja room measures 3 x 2.6 ft in the northeast for the purposes for prayer.
Second floor
Moving to the second floor, family hall measuring 12.2 x 9.9 ft offering for shared family time with attached balcony measuring 5.6 x 4.11 ft near the stairs which ideal for outdoor access and gardening.. Kids Bedroom size of 7.10 x 9.6 ft is located in the west. Master bedroom size of 8.4 x 9.8 ft with attached dressing room size of 4 x 7.10 ft offering privacy and utility. Study room can used for personal use. Along with attached bathroom size of 7.10 x 4.2 ft will convenience to this room.
Third floor
Moving to third floor, open kitchen located at the southeast corner measuring 6.8 x 4.6 ft, offering flexibility. The spacious room size of 7.10 x 9.2 ft located in the south with attached bathroom size of 7.10 x 8.10 ft. A spacious open terrace size of 12.2 x 24.4 ft which fit for sitting, resting and gardening or do any family function.
