Complete 2D House Plan Layout
East facing 40’x 35’ feet and this is duplex plan 2BHK with big Car parking
This is a east-facing 40 x 35 ft , (12.2 x 10.67 m ) 2BHK duplex house plan provided with special features like laundry room, spacious parking area, and open terrace. This is a three-floor building. The ground floor consists of spacious parking. The first floor consists of two bedrooms, kitchen, dining hall, storeroom, and the toilet with living hall. The terrace floor consists of open terrace along with the laundry room and headroom.

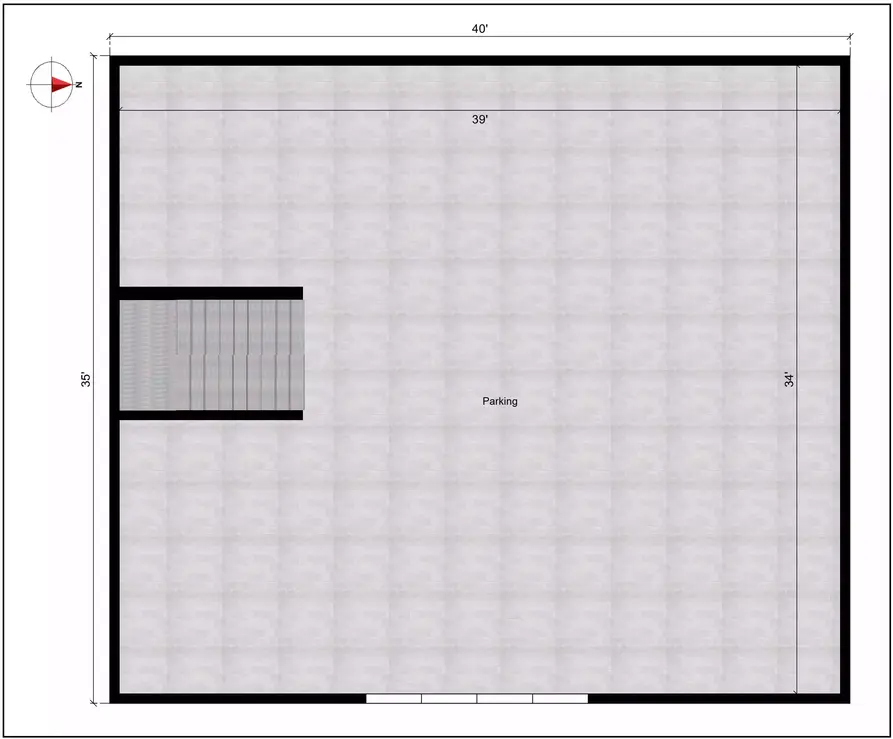

The ground floor The whole plot is provided for parking, measuring about 39 feet and 34 feet. So, this area is provided for spacious parking, where you can utilize for different purpose.
The first floor The stairs and the main door space is 6 feet.The first bedroom in the SW direction measures about 12 feet and 10 feet 6 inches with an attached bathroom measuring 5 feet and 6 feet 8 inches. The main door of this house is in north direction. Living wall in the northeast direction measures about 14 feet and 14 feet with an attached balcony measuring about 14 feet 8 inches and 3 feet. The kitchen located in the southeast direction measures about 16 feet and 11 feet with an attached storeroom measuring about 4 feet 8 inches and 6 feet. The toilet measures about 4 feet 8 inches and 4 feet 6 inches. The second bedroom which is KITS bedroom in the NW direction measures about 12 feet and 14 feet with an attached bathroom measuring 5 feet 2 inches and 6 feet 8 inches.
The terrace floor consists of open terrace measuring about 35 feet, 8 inches and 28 feet, 6 inches with a laundry room located in the southwest direction measuring about 12 feet and 10 feet, 6 inches with a headroom which is of 6 feet wide.
