Duplex House 45 x 45 ft Plan Of The Residential Building Facing In West Direction

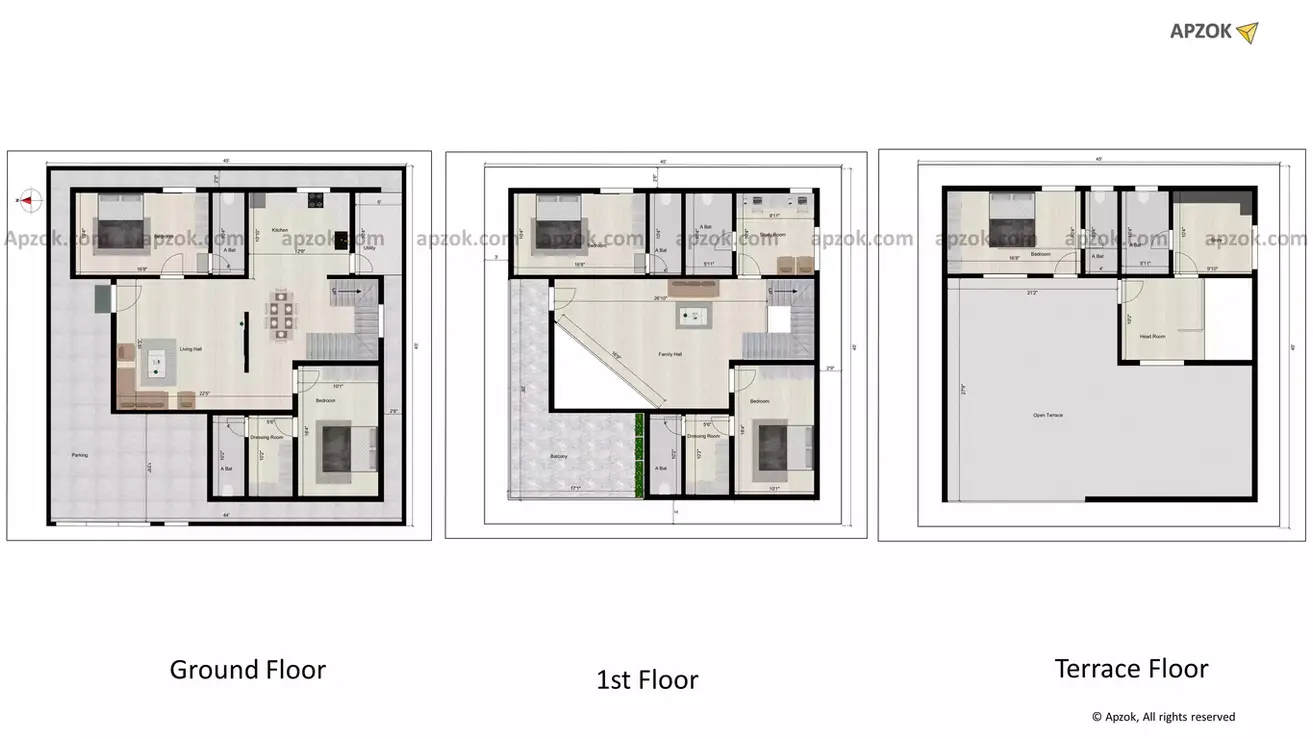

This is a 45*45 west-facing 5BHK duplex house plan constructed with special features like living hall, parking area, family hall, balcony, storeroom, and many more.This is a three-floor building. The ground floor consists of two bedrooms with attached washroom, kitchen, utility area, living hall, spacious parking area. The first floor consists of two bedrooms with attached washroom, study room with attached washroom, family hall, and balcony. The terrace floor consists of one bedroom along with the storeroom, headroom with attached bathroom.

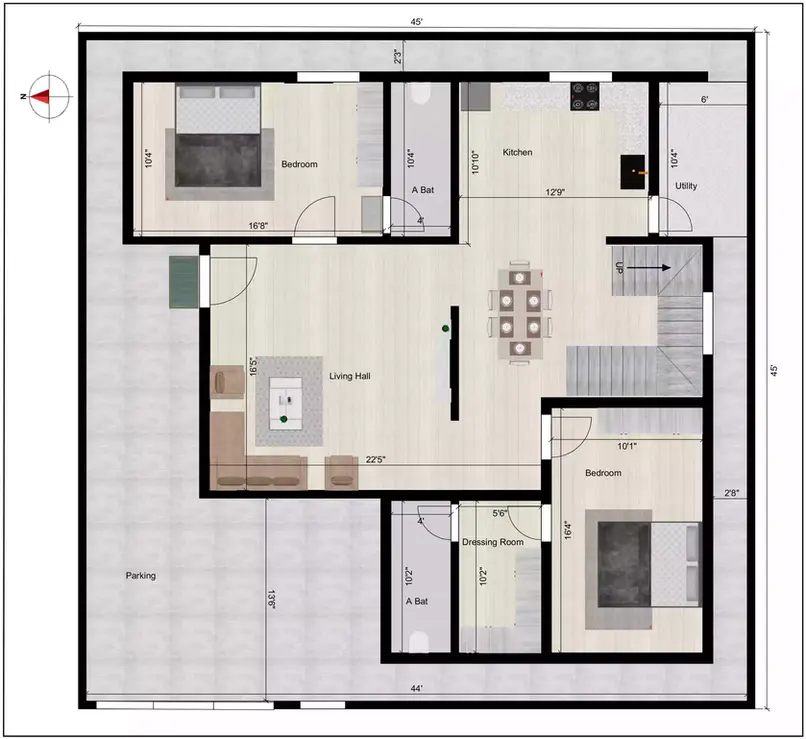

Ground floor consists of spacious parking area measuring about 44 feet and 13 feet 6 inches located in the northwest direction. The main door is in the north direction. Living hall measures about 22 feet 5 inches and 16 feet 5 inches. Kitchen in the southeast direction measures about 12 feet 9 inches and 10 feet 10 inches with the utility area measuring about 6 feet and 10 feet 4 inches. The setback area in back side is 2 feet 3 inches at right side it is 2 feet 8 inches.The first bedroom located in the southwest direction measures about 10 feet 1 inches and 16 feet 4 inches with a dressing room space measuring about 5 feet 6 inches and 10 feet 2 inches with attached bathroom measuring 4 feet and 10 feet 2 inches. The second bedroom in the northeast direction measures about 16 feet 8 inches and 10 feet 4 inches with attached bathroom measuring 4 feet and 10 feet 4 inches.

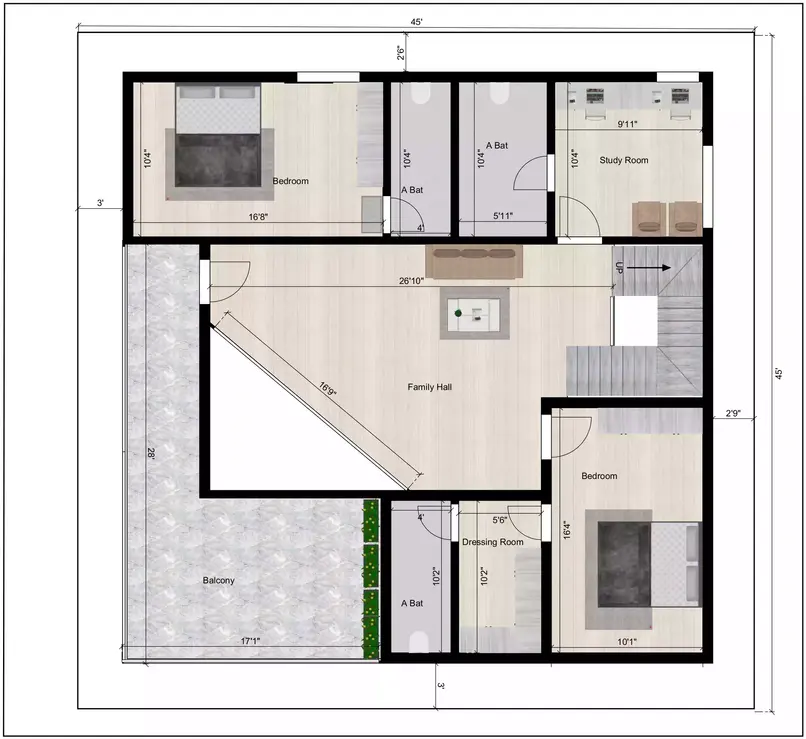

The first floor consists of 2 bedrooms.The first bedroom located in the southwest direction measures about 10 feet 1 inches and 16 feet 4 inches with a dressing room space measuring about 5 feet 6 inches and 10 feet 2 inches with attached bathroom measuring 4 feet and 10 feet 2 inches. The second bedroom in the northeast direction measures about 16 feet 8 inches and 10 feet 4 inches with attached bathroom measuring 4 feet and 10 feet 4 inches.The study room measures about 9 feet 11 inches and 10 feet 4 inches. Family hall measures about 26 feet 10 inches and 16 feet 9 inches. The balcony connected to the family hall measures about 17 feet 1 inches and 28 feet.

The terrace floor consists of one bedroom in the north-east direction measuring about 16 feet 8 inches and 10 feet 4 inches. The storeroom in the south-east direction measures about 9 feet 10 inches and 10 feet 4 inches. The headroom measures about 10 feet 2 inches. Open terrace measures about 21 feet 2 inches and 27 feet 9 inches. The storeroom has an attached bathroom measuring about 5 feet 11 inches and 10 feet 4 inches.
