Complete 2D House Plan Layout
Duplex modern house design west facing 4bhk plan with car parking

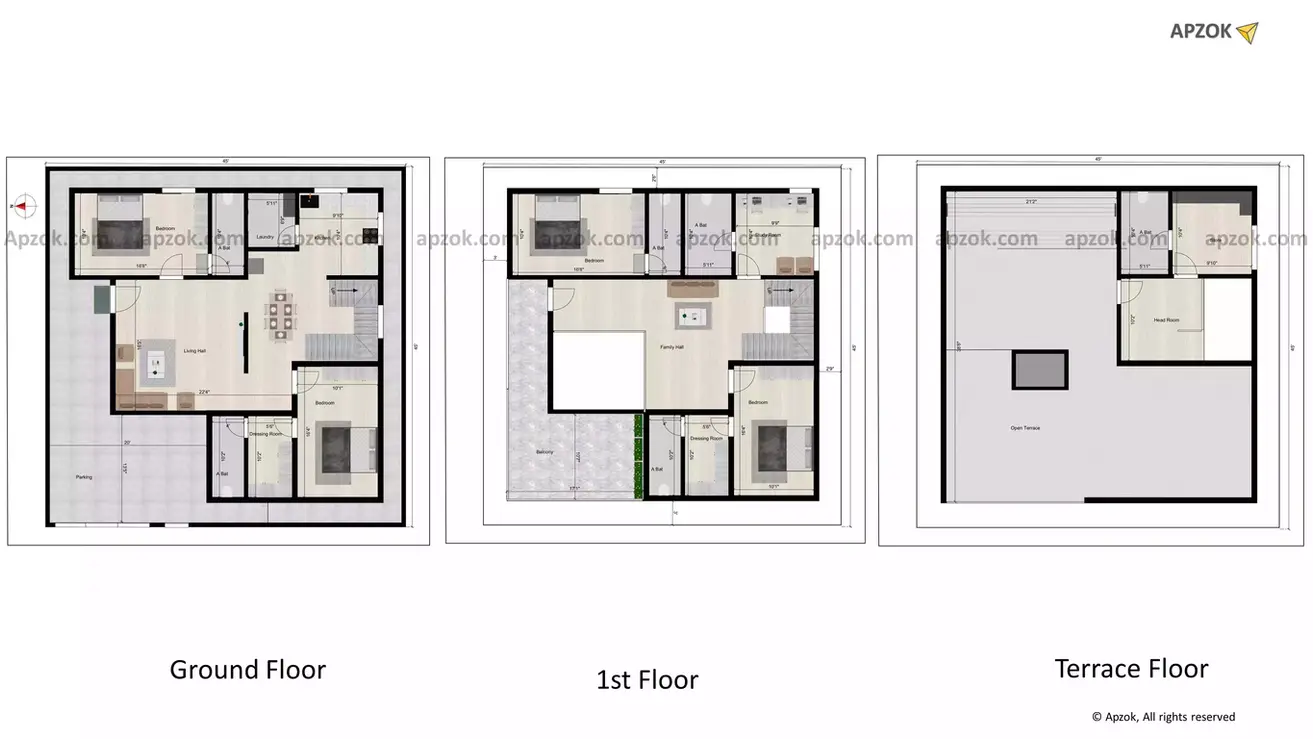

This is a west-facing 45 45 4BHK duplex house plan provided with special features like spacious parking area, balcony, and study room along with open terrace and headroom facility. This is a three-floor building. The ground floor consists of a spacious parking area, living hall, two bedrooms with attached washroom, kitchen, laundry space. The first floor consists of two bedrooms with attached washroom, study room, and balcony. The terrace floor consists of headroom, storeroom, and attached bathroom.

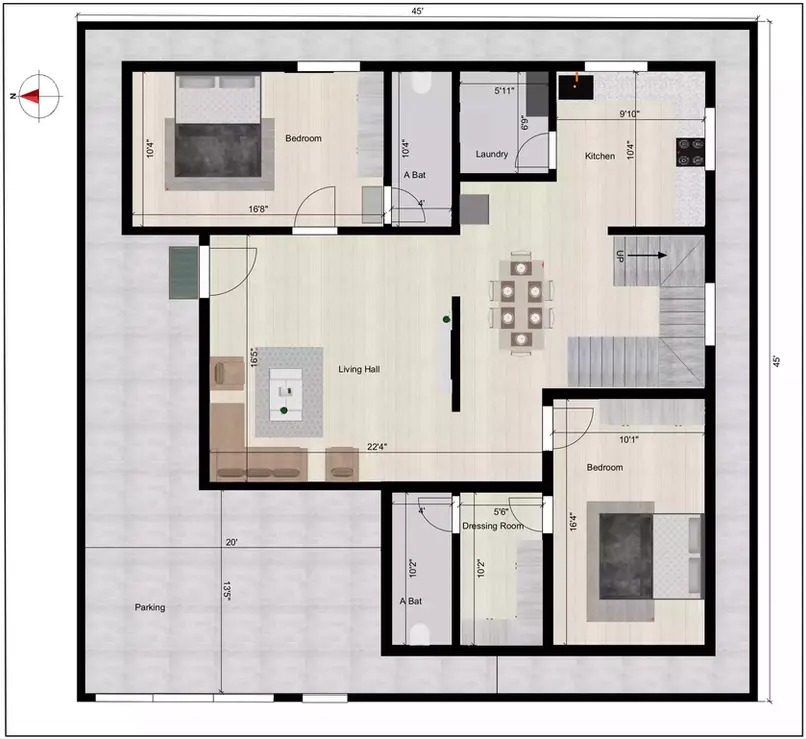

The ground floor consists of spacious parking area measuring about 20 feet and 13 feet 5 inches. The main door is in north direction. Living area measures about 22 feet 4 inches and 16 feet 5 inches. Kitchen in the south-east direction measures about 9 feet 10 inches and 10 feet 4 inches. The laundry room in the north-east direction measures about 5 feet 11 inches and 6 feet 9 inches, directly connected to the kitchen. The setback area in left side is 3 feet, at right side it is 2 feet 9 inches and at back side it is 2 feet 6 inches.The bedroom in the northeast direction measures about 16 feet 8 inches and 10 feet 4 inches with attached bathroom measuring 4 feet and 10 feet 4 inches. The bedroom in the southwest direction measures about 10 feet 1 inches and 16 feet 4 inches with a dressing room measuring about 5 feet 6 inches and 10 feet 2 inches. The bathroom connected to the dressing room measures about 4 feet and 10 feet 2 inches.
The first floor consists of two bedrooms.The bedroom in the northeast direction measures about 16 feet 8 inches and 10 feet 4 inches with attached bathroom measuring 4 feet and 10 feet 4 inches. The bedroom in the southwest direction measures about 10 feet 1 inches and 16 feet 4 inches with a dressing room measuring about 5 feet 6 inches and 10 feet 2 inches. The bathroom connected to the dressing room measures about 4 feet and 10 feet 2 inches.
The balcony measures about 17 feet 1 inches and 10 feet 7 inches with the spacious family room. The study room located in the south-east direction measures about 9 feet 9 inches and 10 feet 4 inches with attached bathroom measuring 5 feet 11 inches and 10 feet 4 inches.

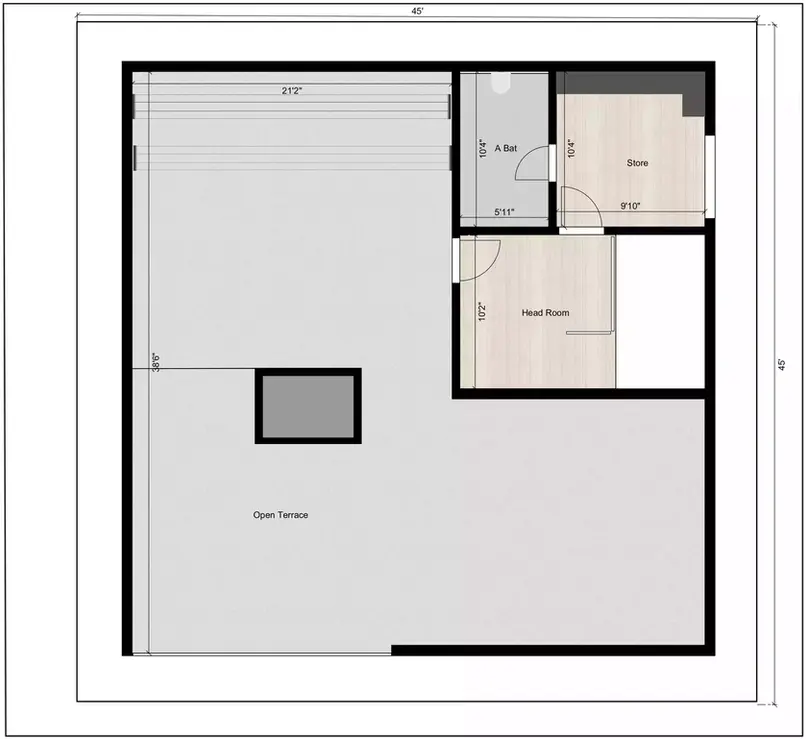

The head room consists of 21 feet 2 inches and 38 feet 6 inches. The headroom measures about 10 feet 2 inches. The attached bathroom measures about 5 feet 1 inches and 10 feet 4 inches, with a storeroom measuring about 9 feet 10 inches and 10 feet 4 inches.
