45 x 40 ft Duplex House Plan Of The Residential Building Facing In West Direction

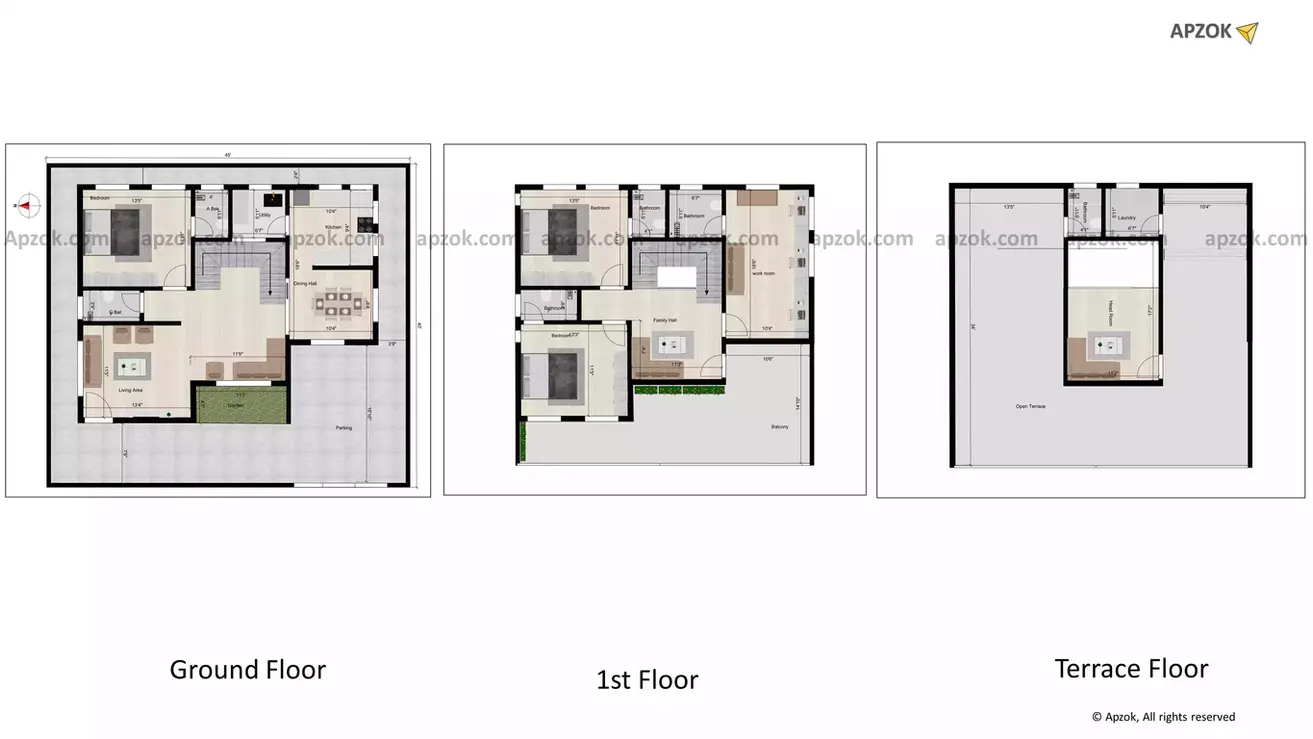

This is a west-facing 45x40 3BHK duplex house plan provided with a study room, family hall, and many more special features. This is a three-floor building. The ground floor consists of a spacious parking area, garden area, living area, one bedroom with attached washroom, common bathroom, and kitchen in the southeast direction. The first floor consists of two bedrooms with attached washroom, study room, and family hall with open terrace. The terrace floor consists of headroom along with a laundry space and bathroom.

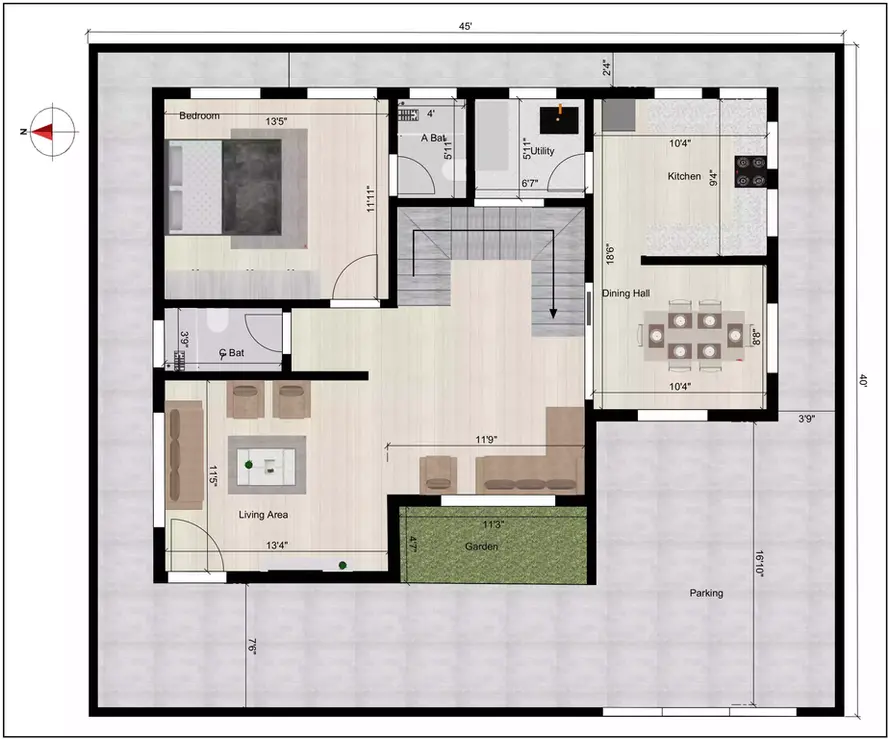

The ground floor consists of spacious parking area measuring about 16 feet 10 inches wide. A small garden space is also provided near the parking area measuring about 11 feet 3 inches and 4 feet 7 inches. The main door of this house is in west direction. Living area measures about 13 feet 4 inches and 11 feet 5 inches. A small drawing room measures about 11 feet 9 inches. The kitchen in the south east direction measures about 10 feet 4 inches and 9 feet 4 inches. With the dining hall measuring about 10 feet 4 inches and 8 feet 8 inches.The bedroom in the northeast direction measures about 13 feet 5 inches and 11 feet 11 inches with attached bathroom measuring about 4 feet and 5 feet 11 inches. A utility is directly connected to the kitchen in the northeast direction measuring about 6 feet 7 inches and 5 feet 11 inches. The common bathroom measures about 7 feet and 3 feet 9 inches. The setback area in right side it is 3 feet 9 inches at back side it is 2 feet 4 inches.

The first floor consists of two bedrooms. The first bedroom in the northeast direction measures about 13 feet 5 inches and 11 feet 11 inches with attached bathroom measuring 4 feet 1 inches and 5 feet 11 inches. The workroom measures about 10 feet 4 inches and 18 feet 6 inches in the southeastern direction measuring about 6 feet 7 inches and 5 feet 11 inches.The bedroom in the north-west direction measures about 13 feet 3 inches and 11 feet 5 inches with attached bathroom measuring 7 feet and 3 feet 9 inches. Family hall measures about 11 feet 3 inches and 7 feet 4 inches with attached balcony measuring about 10 feet 6 inches and 14 feet 10 inches.

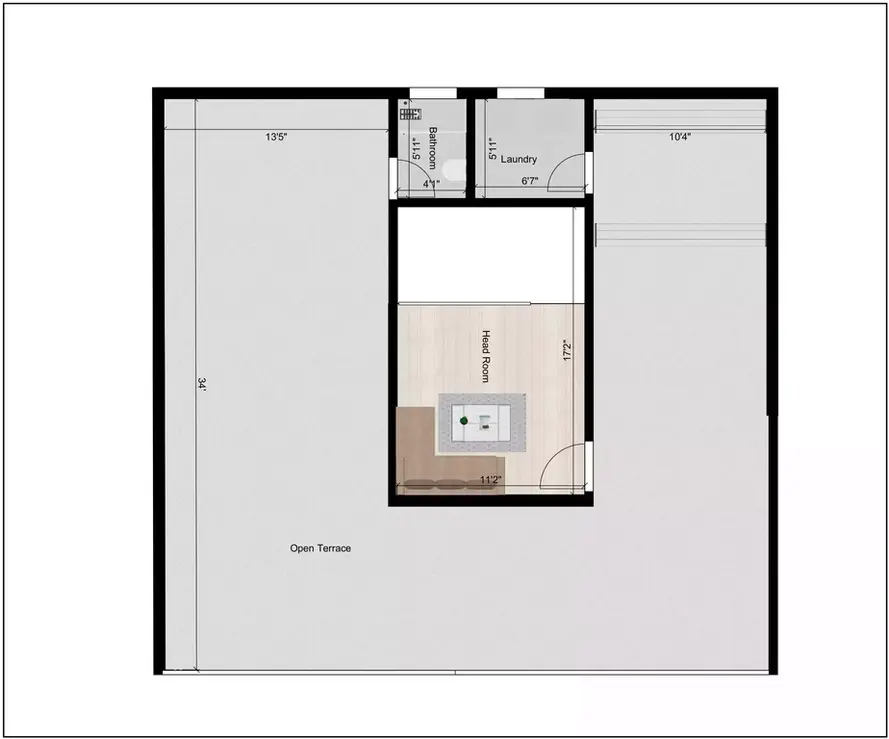

The terrace floor consists of spacious headroom measuring about 11 feet 2 inches and 17 feet 2 inches with a laundry room measuring about 6 feet 7 inches and 5 feet 11 inches with attached bathroom measuring about 4 feet 1 inches and 5 feet 11 inches. Open terrace measures about 34 feet and 13 feet 5 inches.
