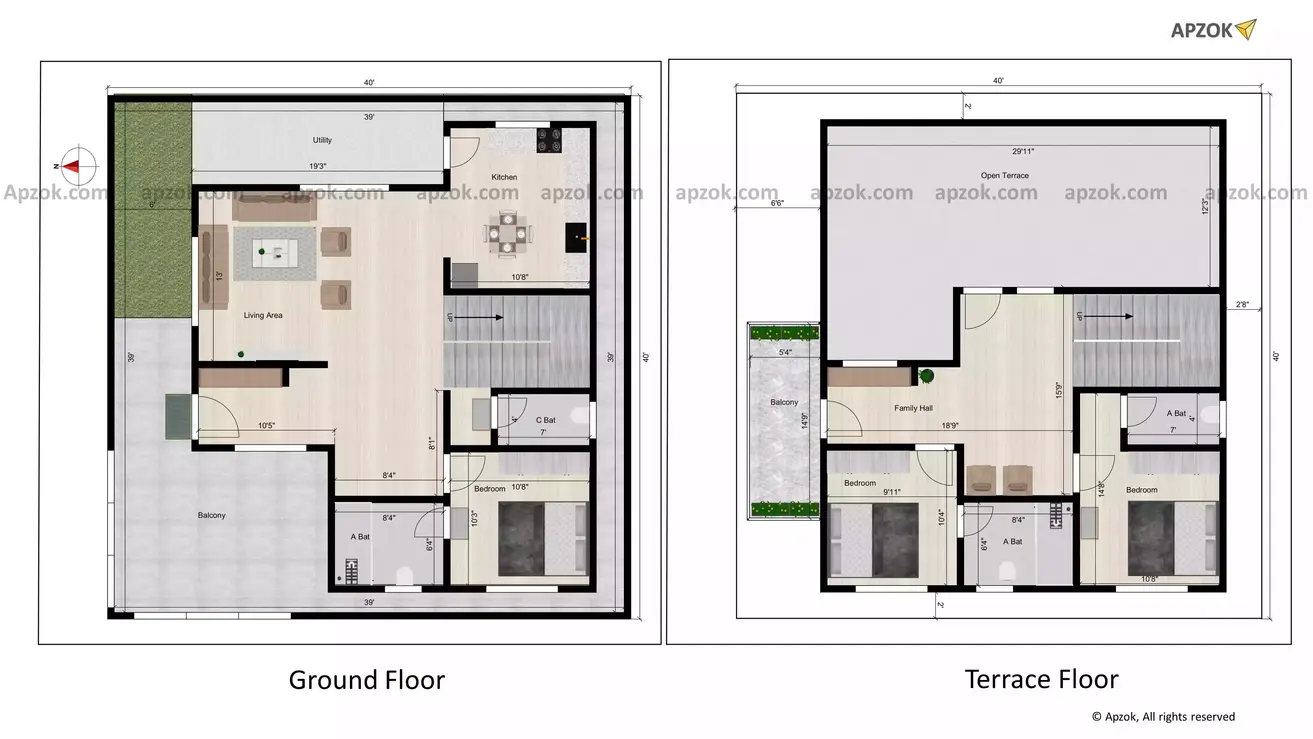

40x40 ft House Plan Of The Residential Building RR0001

This is a east-facing 40x40 3BHK duplex house plan constructed with special amenities like garden area, spacious parking area, open terrace, along with a family hall. This is a two-floor building. The ground floor consists of one bedroom with attached washroom, common bathroom, kitchen, laundry area, garden area, parking area, and living area. The terrace floor consists of two bedrooms with attached washroom, along with a family hall and balcony.

The ground floor consists of spacious parking area. The main door of this house is in north direction. The set-out area measures about 10 feet 5 inches wide. Living area measures about 13 feet wide. The kitchen measures about 10 feet 8 inches wide. The common bathroom measures about 7 feet and 4 feet. The bedroom in the south-east direction measures about 10 feet 8 inches and 10 feet 3 inches. The set-back area in back side is very spacious, which is utilized as a utility area directly connected to the kitchen, which is 19 feet 3 inches wide. The garden space is located in the north-west direction, measuring 6 feet wide.

The terrace floor consists of two bedrooms. The first bedroom in the northeast direction measures about 19 feet 11 inches and 10 feet 4 inches with attached bathroom measuring 8 feet 4 inches and 6 feet 4 inches. The bedroom in the southeastern direction measures about 10 feet 8 inches and 14 feet 7 inches with attached bathroom measuring 7 feet and 4 feet. The family hall measures about 18 feet 9 inches and 15 feet 9 inches. Balcony directly connected to the family hall measures about 5 feet 4 inches and 4 feet 14 feet 9 inches. Open terrace measures about 29 feet 11 inches and 12 feet 3 inches.
