Complete 2D House Plan Layout
Vastu East facing duplex house plan 5 bedroom with car parking
35 x 65 ft (10.67 x 19.81 m)east face house plan of the Residential building
An east-facing 5BHK duplex house plan constructed within 35 feet and 65 feet in three floors. The ground floor has a parking area, three bedrooms, living hall, kitchen, and utility area. The first floor has two bedrooms, a family hall, along with an open terrace. The terrace floor has an open terrace and headroom.
The ground floor utility in the south-east direction measures about 14 feet 4 inches and 3 feet 7 inches. Kitchen in the south-east direction measures about 14 feet 4 inches and 12 feet 1 inches. The parking in the north-east direction measures about 16 feet 6 inches and 19 feet 11 inches. The main door is in east direction. Living hall measures about 18 feet 4 inches and 15 feet 10 inches. The first bedroom measures about 9 feet 9 inches and 11 feet. Having an attached bathroom measuring 9 feet 11 inches and 4 feet 4 inches. The bedroom in the south-west direction measures about 14 feet 4 inches and 17 feet 10 inches. With attached bathroom measuring 8 feet and 5 feet. The bedroom in the north-west direction measures about 14 feet 1 inches and 17 feet 10 inches. With attached bathroom measuring 8 feet 8 inches and 5 feet.
The first floor balcony measures about 14 feet 2 inches and 4 feet 1 inches, located in the southeast direction. The family hall measures about 14 feet 2 inches and 12 feet 4 inches. The bedroom in the southwest direction measures about 14 feet 2 inches and 17 feet 10 inches, with the attached bathroom measuring 8 feet and 5 feet. The open terrace measures about 14 feet 2 inches and 59 feet 2 inches. The bedroom measures about 10 feet 1 inches and 15 feet 10 inches, having an attached bathroom measuring 6 feet 1 inches and 4 feet 4 inches.

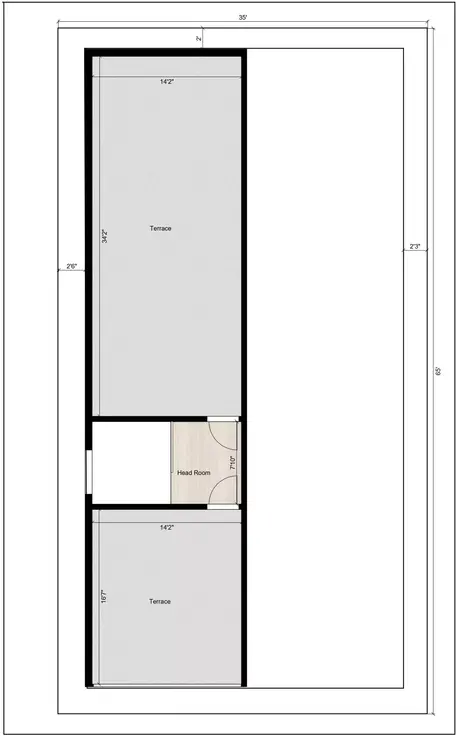

The terrace floor open terrace measures about 14 feet 2 inches and 34 feet 2 inches. Headroom measures about 7 feet 10 inches. Open terrace measures about 14 feet 2 inches and 16 feet 7 inches, located in the east direction.
