3 bedroom duplex house plan vastu north facing with parking
30 x 60 ft (9.14 x 18.29 m) house plan 2 bhk duplex of the Residential building

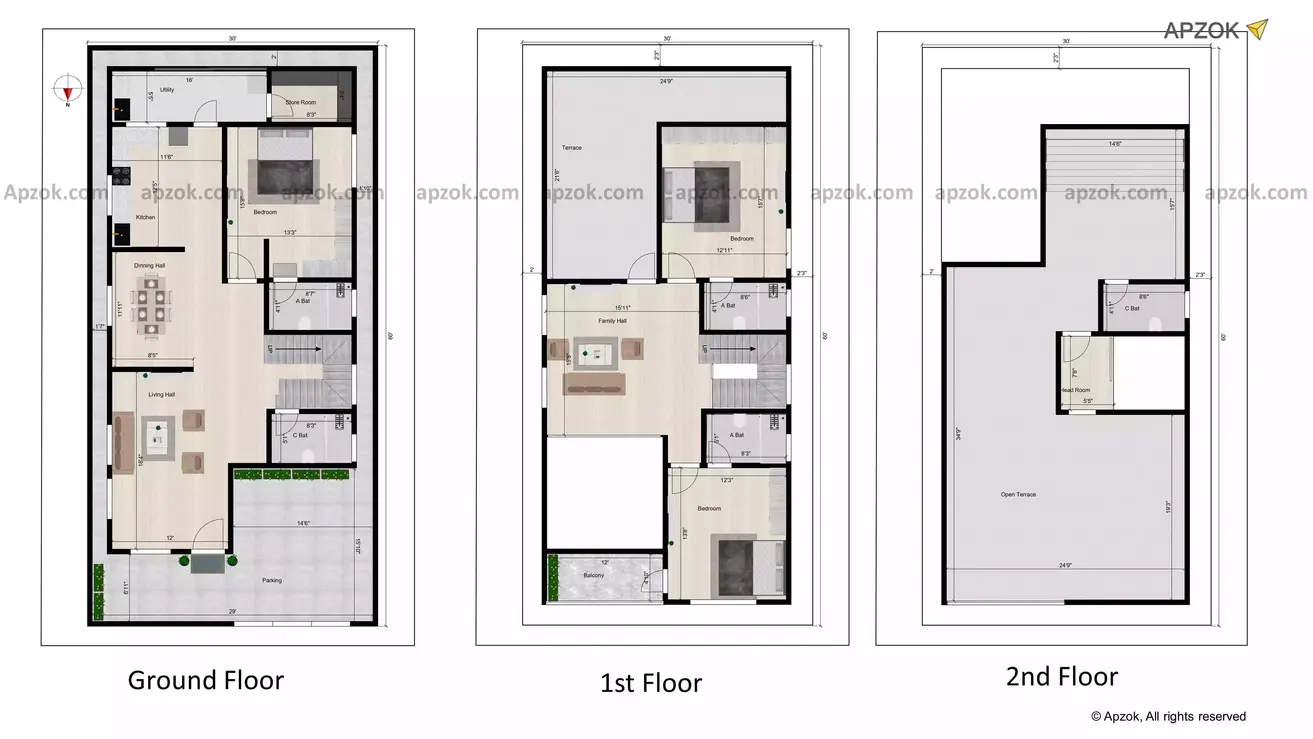

A north-facing, independent, 30 feet by 60 feet, 3BHK duplex house plan constructed within three floors. The ground floor has a parking area, living hall, dining hall, kitchen, and bedroom. The first floor has two bedrooms, an open terrace, and a family hall. The second floor has an open terrace and headroom.
The ground floor common bathroom in the northwest direction measures about 8 feet 3 inches and 5 feet 1 inches. The living hall in the northeast direction measures about 12 feet and 18 feet 4 inches. The main door is located in the north direction. Parking measures about 14 feet 6 inches and 15 feet 10 inches. The dining hall measures about 8 feet 5 inches and 11 feet 11 inches. The kitchen in the southeast direction measures about 11 feet 6 inches and 12 feet 5 inches. The utility area measures about 16 feet and 5 feet 5 inches. The bedroom measures about 13 feet 3 inches and 15 feet 8 inches. The storeroom measures about 8 feet 3 inches. The setback area on the left side is 1 feet 7 inches. At the back side it is 2 feet.
The first floor open terrace measures about 24 feet 9 inches and 21 feet 6 inches. The bedroom in the south-west direction measures about 12 feet 11 inches and 15 feet 7 inches. The family hall measures about 15 feet 11 inches and 15 feet 8 inches. The attached bathroom measures about 8 feet 6 inches and 4 feet 11 inches. The bedroom in the north-west direction measures about 12 feet 3 inches and 13 feet 8 inches. Balcony measures about 12 feet and 4 feet 10 inches.
The terrace floor headroom measures about 5 feet 5 inches and 7 feet 8 inches. The open terrace measures about 24 feet 9 inches and 34 feet 9 inches. The common bathroom measures about 8 feet 6 inches and 4 feet 1 inches.
To get a better idea of this house design, you can also check the 3D elevation and enjoy the 3D Walkthrough for this plan. To explore it instantly, click the 3D view button.
