Complete 2D House Plan Layout
Duplex house plan size 30*50 with north facing, 3BHK, parking, utility, head room and store room
This Residential building facing North has a size of 30'x50’ feet containing 3bhk and duplex house plan with G+2 floor. Per the design, Ground floor includes utility area around 2’ length and parking area for bike or car standing beside gardening area having 5’ length of passage in front of building plan, with main door placed in northeast direction. Five feet passage in front of building leads to living hall, dining hall, laundry room, bedroom, common bathroom, utility, and open kitchen with attached utility dish area. Furture more in the first floor, stationed at East, the staircase leads to open terrace where sitting, resting, and gardening is allowed; two beds with attached bathrooms lay to the side. Second floor mirrors first: along the West side of the open floor is head room with a second relaxation area equipped for gardening, enhanced ventilation, alongside ample windows for natural light.

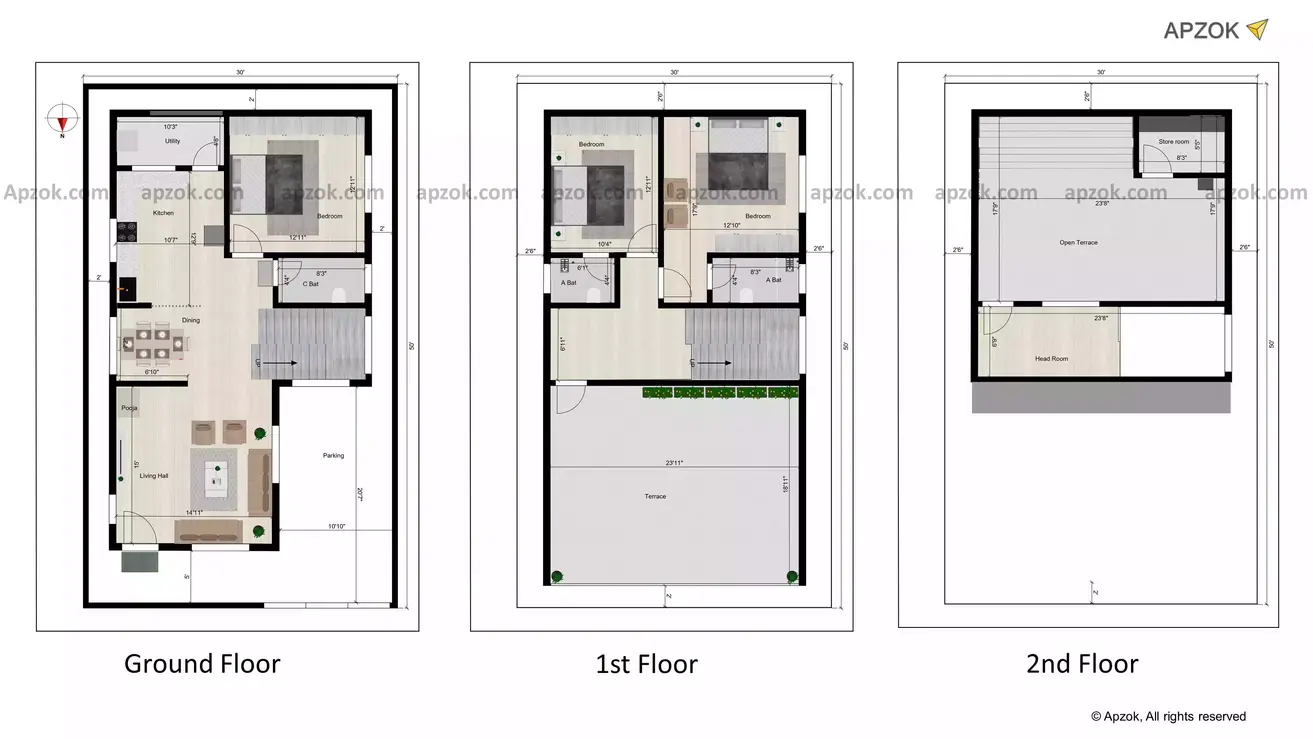

Below are the measurements detailing in feet and inches along with the duplex building plan.
Ground Floor
Area of the building on the ground floor: 30’ x 50’ = 1500sqft. In this 30 x 50 3bhk house plan , ground floor consists of parking with dimensions of 10’10” x 20’7” and here door is facing in northeasternly direction then living hall is of size 14’11” x 15’ , dining hall in eastern side of house 10’7” x 6’2” with stair case in the west which is also going (up) in eastern direction, bedroom in south-west direction of size 12’11” x 12’11’ with common bath ensuite of bathroom sized 8’3” x 4’4” and open kitchen with angular shape is designed in south-eastern direction measuring 10’7” x 12’9” with attached utility of 10’3” x 4’8”.
First floor
Area of the building on the first floor: 25’ x 45’6” = 1137.5sqft. After passing through the western staircase, we enter into a free space area of size 15’2” x 6’9” which is adjoined with open terrace of 23’11” x 18’11” in northern side, bedroom in southwest measuring 12’10” x 17’9” with ensuite of bathroom 8'3 x 4'4". What is provided in this 30 x 50 3bhk house plan is bedroom in south-eastern direction of size 10’4” x 12’11”, provided also attached bathroom to the room sized 6’1” x 4’4”.
Second floor
Area of the building on the second floor: 25’ x 26’ = 650sqft. Upon ascending the staircase from the west, we observe the headroom measuring 15'2'' x 6'9'' and the open terrace towards the south, which measures 23'8'' x 17'9''.
