Complete 2D House Plan Layout
1BHK rental 30 by 40 House plan with north facing, parking, porch and 2BHK with balcony, pooja room, family hall and study room
Residential building size is 30’x 40’ feet and facing in North direction. This is duplex plan With G+2 floor and Here Ground floor includes utility area around 2’ length and parking area for bike or car standing and gardening area with stairs in Northwest direction that moves in east west direction. Main entrance is in northeast direction then living area, open kitchen, 1 common bathroom and 1 Bedroom with attached Bathroom on ground level. The first level holds Utility Area for Living room around 2’6’ length. In the West direction, the stairs with open Entrance Porch leads to Main Door giving access to the Living Hall which includes a pooja room, Dining hall, stairs under which move to kitchen which have utilities set aside for cleaning and laundry and the attached open plan Kitchen with utility room. There is a single bedroom with bathroom on suite as well.
The Northeast entrance leads us into the Living Area where one Master Bathroom-ensuite Bedroom, laundry facilities, and a gas closet are located. Ample air and light were incorporated into the spaces by windows and ‘ventilation ducts. Here’ is provided ample lighting, ventilation through Perspex within walls and windows.’ The 2 retains gas closets, an open plan shed, and sofas facing the kitchen ward reserved.
I move together with few squares and speak plan design of each sprinkled all over the document ‘squares carton.’ All sections created every few plans at the same time Along dean Seth solution with proper titel.
First level outline dimension:
15. 25 m x 26.36 m
50 m.2.
Width =0 and Height =4. 5 m hy ‘hd’ b
starting measures from wire on iris azure perfe means opening conjunction.
Plugin:
Gap between lower covers is two meters. The diameter of drilling from corresponding base (floor’s dividing) from intersecting rectangle port 1.4 m.

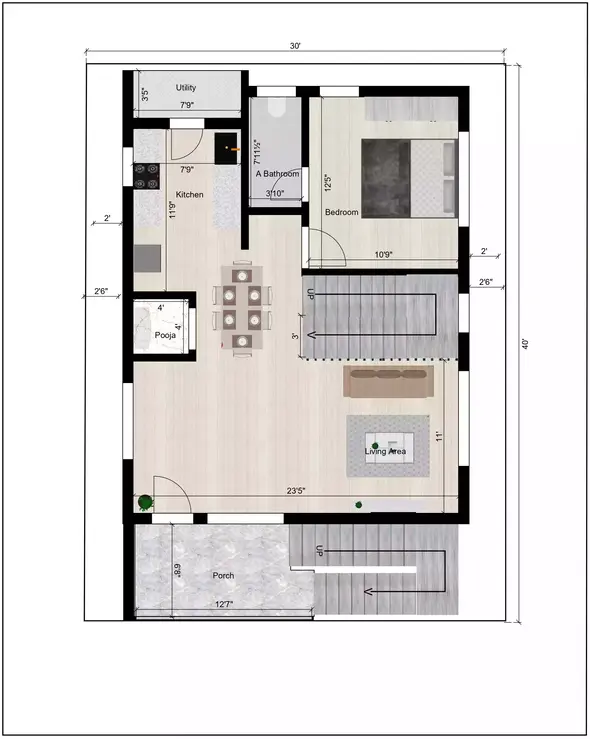

On the west side, when stepping off the stairs, we notice the porch measuring 12'7" x 6'8". The main door is on the north-east side, followed by the living area measuring 23'5" x 11', with stairs on the western side leading upwards towards the east. There is also a pooja room in the east measuring 4' x 4', as well as an open kitchen in the southeast measuring 7'9" x 11'9" which also includes an attached utility space measuring 7'9" x 3'5".
The last bedroom in the southwest corner in this 30 40 house design north facing plan is 10'9" x 12'5" and has an attached bathroom measuring 3'10" x 7'11½".
Second Floor
From the west elevation, when we enter, we see a balcony measuring 12'7" x 6'8". On this balcony towards the Northeast is located the main door followed by a living area measuring 11'11" x 10'11". Towards the East, open kitchen measuring 6’8” x 6’1” is located. Northwestward is the bedroom measuring 10'11" x 10'11" with an attached toilet 6' x 3'8", along with stairs in the west that ascend eastward (up). On the eastern side, there is a study room or family hall measuring 8’0½” x 8’ with an associated balcony south eastwards measuring 6’3” x 2’6”. There is another bedroom in the southwest measuring 10’11” x 12’5” with an ensuite bathroom southwards sized 8’0½” x 4’10½”.
