Complete 2D House Plan Layout
Duplex house plan size 30*40 with north facing, 5BHK, balcony, utility, store room, pooja room, family hall, parking, open sky, mini home theater and head room
The 29’6” x 39’6” Residential Building Design Plan Having North Facing Entrance is a duplex plan with G+3 floors. It includes a ground floor with an approximately 1’ wide utility area, a garage for a car, a garden, and a main entrance which faces North. Inside, there is a living hall with a pooja room, a dining room with a West-facing staircase, an open kitchen with a utility area for laundry and cleaning, 1 common bathroom, and 1 bedroom. The first floor has an approximate 1’ wide utility area with adjoining stairs to the west. Upon reaching the upper floor, there is a free space area for family activities which includes a family hall, an additional open balcony for outdoor views, and sky. The floor also has 1 bedroom with an attached bathroom, a master bedroom with an en-suite bathroom, and a dressing room.
The second floor has a utility space of around 1’ long post the westward stairs, followed by a designated free space for movement, family lounge for family activities with mini balcony for gardening as well as outward view, and open sky for nice view, bedroom with attached bathroom, one master bedroom with attached bathroom and dressing room. The third floor contains an area that serves as a landing which has a utility space of approximately 1’ in length after the stairs situated to the west direction. Vertical space is available directly at the top of the stairs as well the open sky which provides a pleasant view, and a designated area for watching films, which is referred to as the mini movie theater, rest area which is also a open terrace that can be used for leisure sitting, rest, and gardening, where also provided sufficient ventilation for fresh air along with windows placed for proper light.

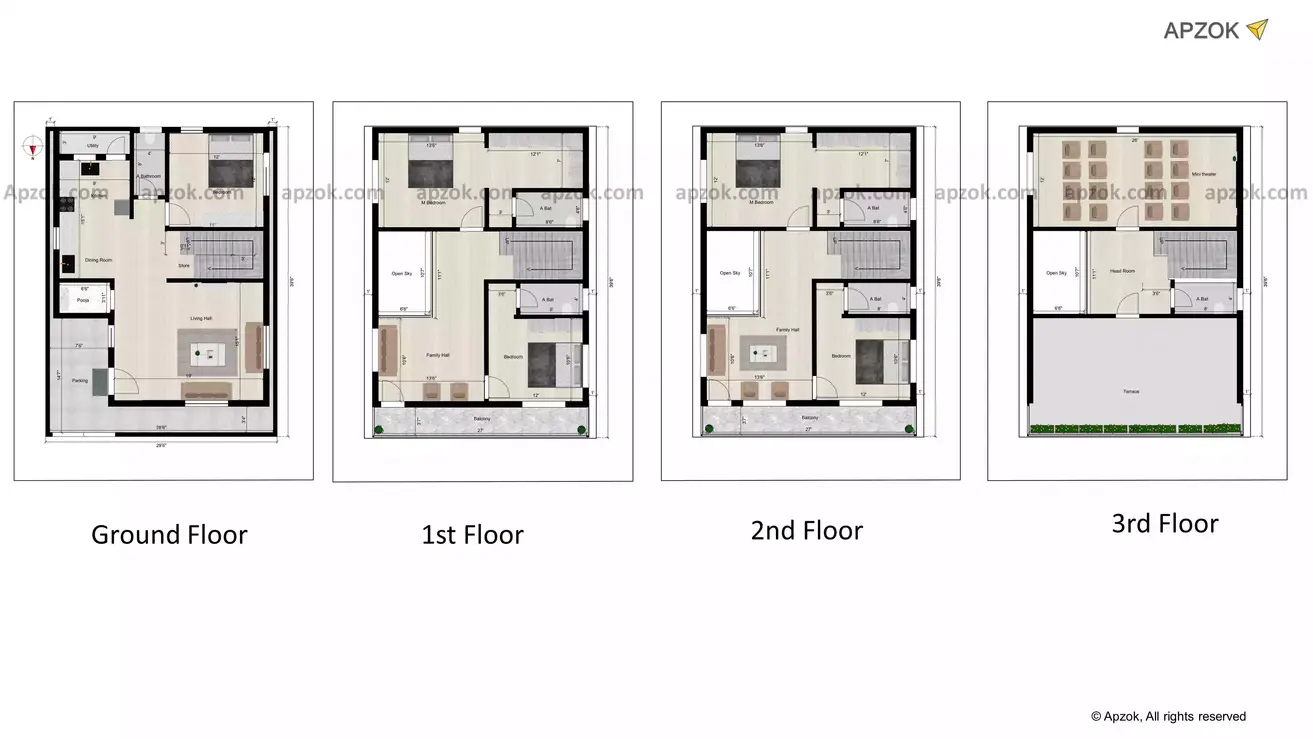

Following this is where the duplex building floor plan will have precise measurements and the specific floor plan of the particular building is presented in detail using feet and inches.
Ground Floor
Area of lower ground floor is : 29′6”×39′6”=1172sq ft
- In this home design north facing plan with dimensions 29’6 39’6, on the ground floor there is a parking area measuring 7’6” x 14’7”. The main door is located towards the North direction. Then there is the living hall which is size 19’ x 15’1” . Off the dining room in the East, we have the pooja room of the dimension 6’6” x 3’11” and towards the southeast, we have the open kitchen measuring 9' x 8'6" with the utility room measuring 9’ x 3’ which is adjoined to it. There is also a common bathroom measuring 4’ x 6’ located at the South side of the house. Towards the southwest of the floor plan there is a master bedroom measuring 11’ x 12’.
First floor
First floor buildup area: 28’ x 40’ = 1120sqft
On the first floor, after passing through stairs that are positioned in the west direction, we land at the free space area which is meant for waking size 10’3” x 11’1”. Adjacent to it in the Northeast direction there is a family hall measuring 13’6” x 10’6” with available attached balcony size 27’ x 3’6” facing North while to the East there is open sky measuring 6’6” x 10’7”. Moving Northwest we come across a bedroom measuring 12’ x 10’6” with attached bathroom measuring 8’ x 4’.
On the south side of the plan is the Master bedroom which as a dimension of 13’6” x 12’ that comes attached with a bathroom of 8’6” x 4’6” with the latter positioned southwest alongside a dressing room of 12’1” x 7’.
Second floor
Second floor buildup area: 28’ x 40’ = 1120 sqft
After passing through stairs form west direction we see free space area for waking size 10’3” x 11’1” and then family hall in northeast size 13’6” x 10’6” with attached balcony in north size 27’ x 3’6”, open sky in east size 6’6” x 10’7”, bedroom in north west size 12’ x 10’6” with attached bathroom size 8’ x 4’ and master bedroom in south side 13’6” x 12’ with attached dressing room in southwest side 12’1” x 7’ bathroom is 8’6” x 4’6”.
Third floor
Third floor buildup area: 28’ x 40’ = 1120 sqft
After passing through stairs form west direction we see head room size 10’ x 11’1” with bathroom in west size 8’ x 4’ then mini theater in south 26’ x 12’ open sky in east 6’6” x 10’7” and open terrace in north 27 x 16.
