Complete 2D House Plan Layout
1BHK rental 30 by 40’1” House plan with east facing, parking, utility and 4BHK for duplex with passage, sit out, temple, family hall, balcony, pergola and head room

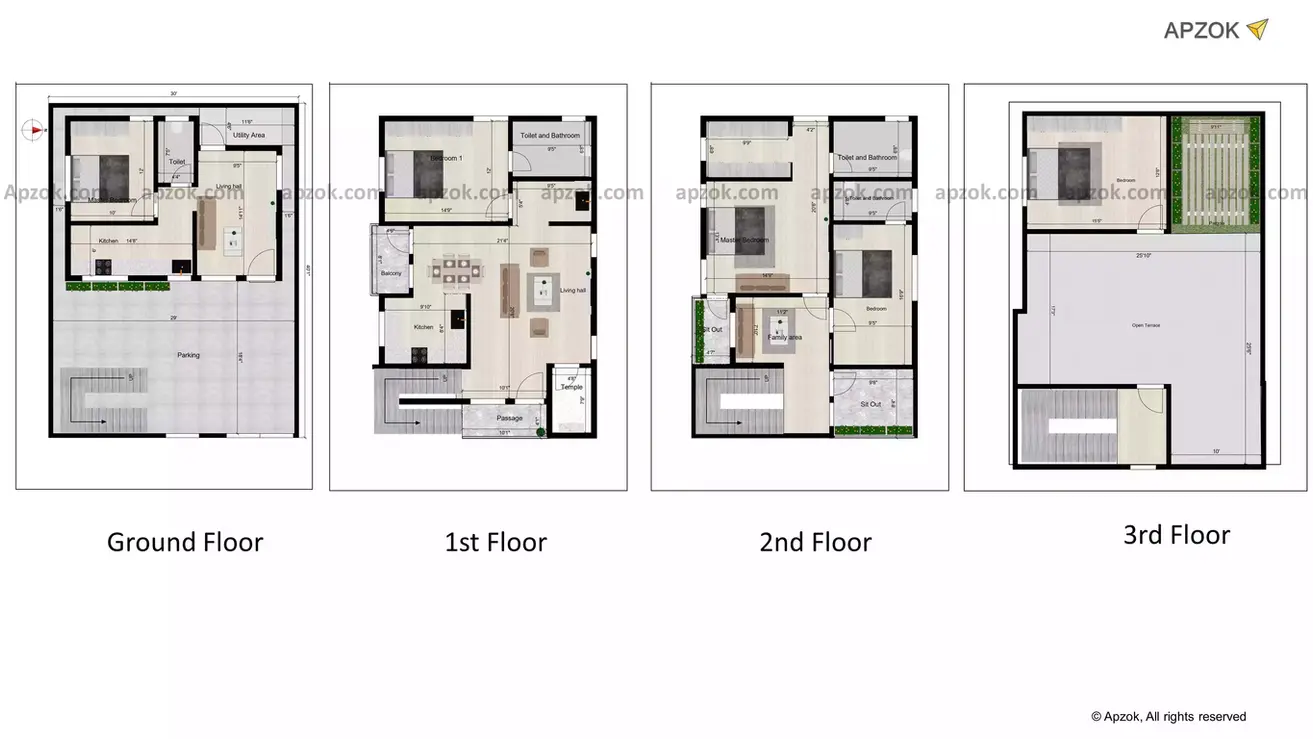

The Duplex east facing 30 x 40 ft east facing duplex house plan of the home building (9.14 × 12.19 m)
An east-facing, 30 feet by 40 feet, Vastu-based, 1BHK rental house in the ground floor, along with a 4BHK duplex house from the first floor. This house is constructed based on the principles of Vastu in the four floors. The ground floor has a parking area, along with a 1BHK rental house. The first floor features a spacious bedroom, balcony, kitchen, living hall, passage area, and puja room. The second floor has two bedrooms, along with a family area, sit-out, and the balcony. The terrace floor has one bedroom, terrace garden, and headroom, along with an open terrace.
The ground floor rental house has its main door in the east direction. Parking measures about 29 feet and 18 feet 4 inches. The living hall measures about 9 feet 5 inches and 14 feet 11 inches. Having a direct utility connection in the northwest direction measuring about 11 feet 6 inches and 4 feet 6 inches. The kitchen in the southeast direction measures about 14 feet 8 inches and 6 feet. The master bedroom in the southwest direction measures about 10 feet and 12 feet. The setback area on the right and left side is 1 feet 6 inches.
The first floor balcony measures about 4 feet 6 inches and 8 feet 1 inches. Directly connected to the dining hall. The kitchen in the southeast direction measures about 9 feet 10 inches and 8 feet 4 inches. The main door is in the east direction. A puja room in the northeast direction measures about 4 feet 8 inches and 7 feet 9 inches. The passage area measures about 10 feet 1 inches and 4 feet 1 inches.The living hall is very spacious, measuring about 21 feet 4 inches and 20 feet 6 inches. The bedroom in the southwest direction measures about 14 feet 9 inches and 12 feet. The bathroom located in the northwest direction measures about 9 feet 5 inches and 6 feet 8 inches.
The second floor sit-out area located in the northeast direction measures about 9 feet 6 inches and 8 feet 4 inches. The family area measures about 11 feet 2 inches and 7 feet 10 inches. The sit-out directly connected to the bedroom measures about 4 feet 7 inches and 7 feet 10 inches. The master bedroom in the southwest direction measures about 14 feet 9 inches and 20 feet 6 inches, having a direct connection with the washroom measuring 9 feet 5 inches and 6 feet 8 inches. The bedroom in the northwest direction measures about 9 feet 5 inches and 16 feet 9 inches, having an attached bathroom measuring 9 feet 5 inches and 4 feet 8 inches.
The terrace floor open terrace measures about 25 feet 10 inches and 17 feet 3 inches. The bedroom in the south-west direction measures about 15 feet 5 inches and 12 feet 6 inches. A terrace garden is located in the north-west direction, measuring about 9 feet 11 inches wide. The headroom is very spacious, located in the south-east direction.
