Complete 2D House Plan Layout
West facing 1bhk rental, 3bhk duplex vastu based house plan with parking

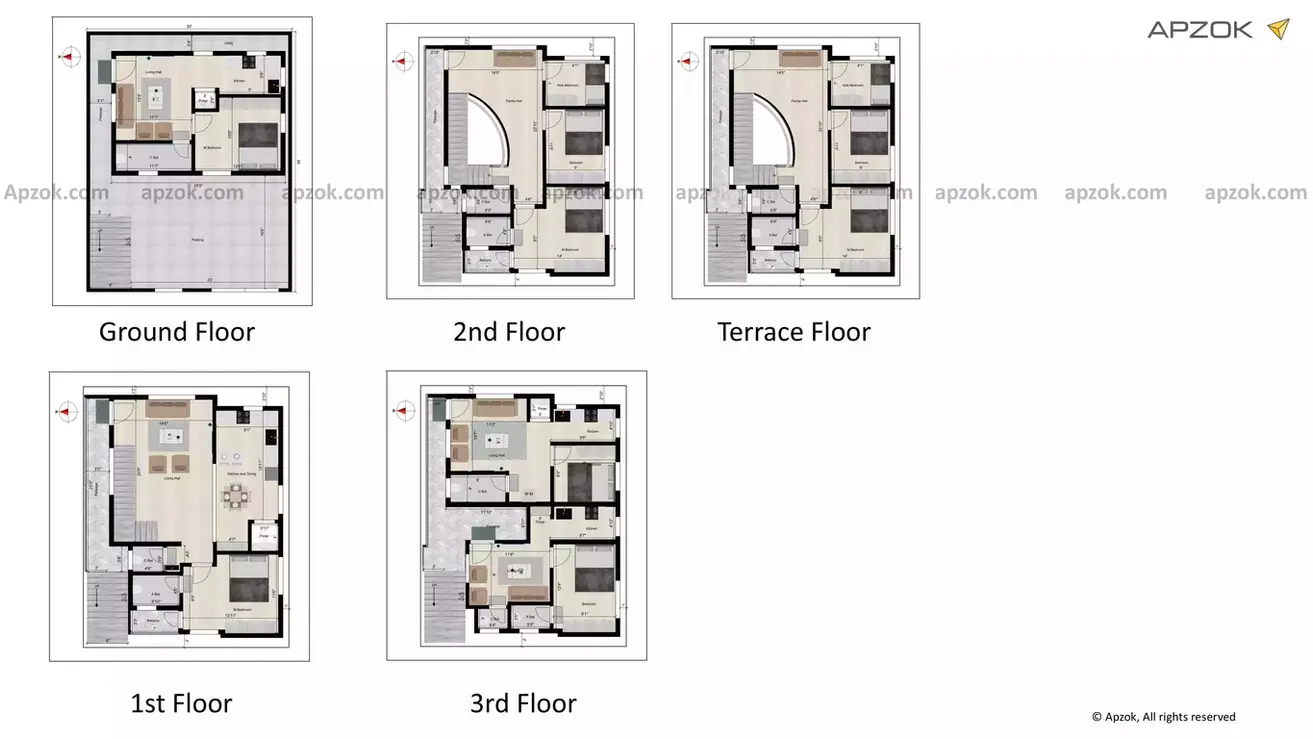

The west-facing 30' x 38' house plan G+3 design includes a 4 BHK duplex along with a 1 BHK rental unit. This layout attempts to meet comfort and functionality while optimizing space. A blend of tradition and modernity is ensured with private balconies, a pooja room, utility areas on each floor, as well as a big terrace.

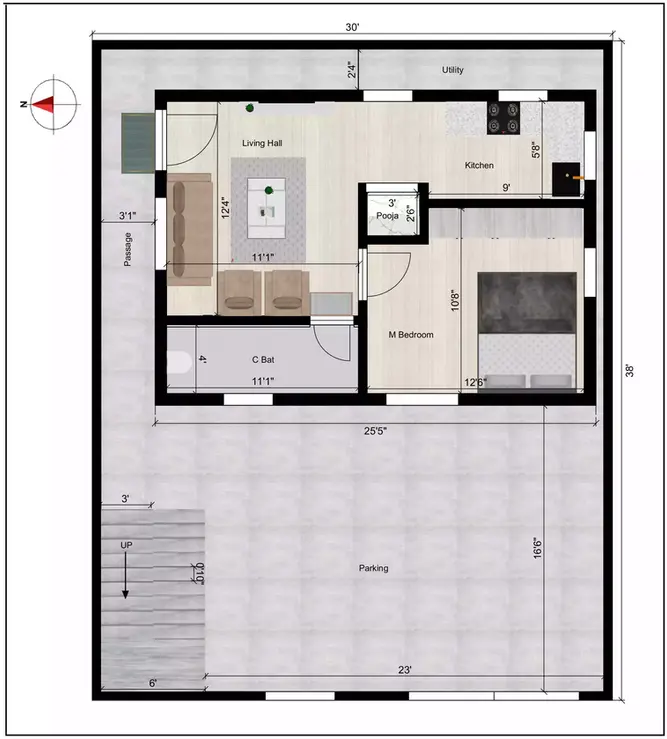

Ground Floor: Functional Rental Unit
Buildup Area: 1140 sq. ft.
Common Bathroom: 11'1"x4', sharing access is made posssible for the common area.Master Bedroom: 12'6"x10'8". Positioned Southwest offers better privacy.Open Kitchen: 9' x 5'8" located in South East of the house for ease of access and convenience.Pooja Room: 3' x 2'6" which is Northeast specifics. Is designated for Spiritual activities.Main Door: North facing leads you to The Living Hall 11'1" x 12'4".Parking Area: 23' x 16'6" (North West) with gardening space.Stairs: Located in the northwest, moving East-West allows hassle-free access to the floors above and below.
First Floor: Spacious Living (Duplex)
Buildup Area: 1007.75 sq. ft.
Passage Entry: 3’5”, leading to the Main Door (facing North).Living Hall: 14’5” x 20’8” promisd with flexible gathering space.Stairs: South position turns to southeast for easier access to upper floors.Open Kitchen and Dining Room: 9’1” x 15’11” positioned in the southeast, beside the Pooja Room (3’11” x 4’) towards the southwest.Master Bedroom: 13’11” x 11'6”, in the southwest portion, with Attached Bathroom (6’10” x 4’5”) and an Adjacent Balcony (7’ x 3’3”).Common Bathroom: 4’6” x 3’9”, in the northwest
Second Floor: Upper-Level Comfort (Duplex)
Buildup Area: 1007.75 sq. ft.Passage Entry: 2’10” long, leading into the Main Door (north-facing).Family Hall: 14’5” x 23’10”, sizable for family interactions.Stairs: South position onto the next floor for seamless entry.Kids Bedroom: 9’1” x 7’, positioned to face southeast.Bedroom: 9’ x 11’5”, located at the south.Master Bedroom: 14’ x 9’3”, southwest-facing with an Attached Bathroom (6’9” x 4’5”) and Balcony (7' x 3'3").Common Bathroom: 6'9" x 3'9", in Northwest.
Third Floor: Dual 1BHK Plans
Buildup Area: 1007.75 square feetPassage Area: 11'10" x 4'11", dividing the space into west and east units:West UnitDoor Location: Main door towards East.Living Hall: 11'9" x 9'Pooja Room: 3' x 2', next to the Open Kitchen (9'7" x 4'10").
Bedroom: 9'1" x 12'4" with an attached Bathroom (5'8" x 3'5").Common Bathroom: 4'4" x 3'.East UnitDoor Location: Main door to North.Living Hall: 11'2" x 10'7"Pooja Room: 3' x 3'1", next to the Kitchen (9'6" x 4'10").Bedroom: 9' x 8'3" With a Common Bathroom (8' x 4").
Key Features
Flexible Layout: Multifunctional space merges a 4BHK duplex with two 1BHKs for placement as family units or rentals.
Private Balconies: Offers additional areas for relaxation or gardening.
Functional Design: Pooja rooms and utility spaces incorporated to aid daily living.
Good ventilation and light: Windows and open spaces are strategically positioned.
Scaleable structure: The design can be expanded or changed later on.
