Complete 2D House Plan Layout
North facing 1bhk rental vastu based house plan with parking
This 30 feet by 30 feet north facing G+3 home design layout is designed with compartment functionality and modern comforts. The layout includes family-specific features like utility spaces, open kitchens, and washing machine placements. Every unit tier is arranged for maximum natural daylight and air flow. Features and usability have aligned for greated experience.

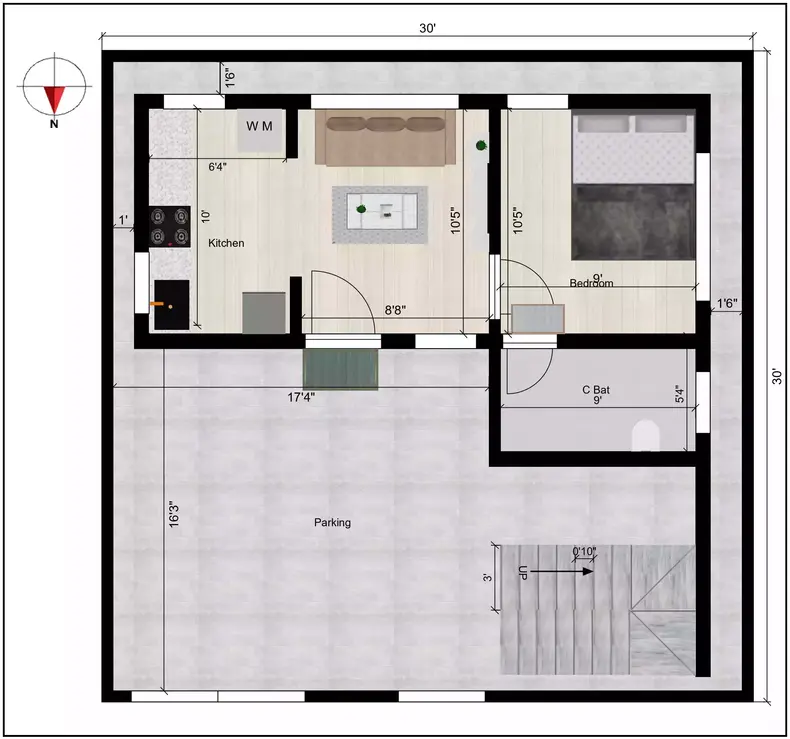

Ground Floor: Practical Foundation
Buildup Area: 900 sqft
Parking Area: 17’4 x 16’3, storage for bikes/cars and garden to the northwest.Main Door: facing North, into Living Area (8’8 x 10’5”)Open Kitchen: 6’4 x 10’, located next to and with an exit to the terrace on the southeast, has a washing machine point.Bedroom: 9’ x 10’5” strategically placed for comfort and privacy in the southwest with an Attached Bathroom (9’ x 5’4”).Stairs: To the northwest and horizontally to the east-west for rejoining the floors.

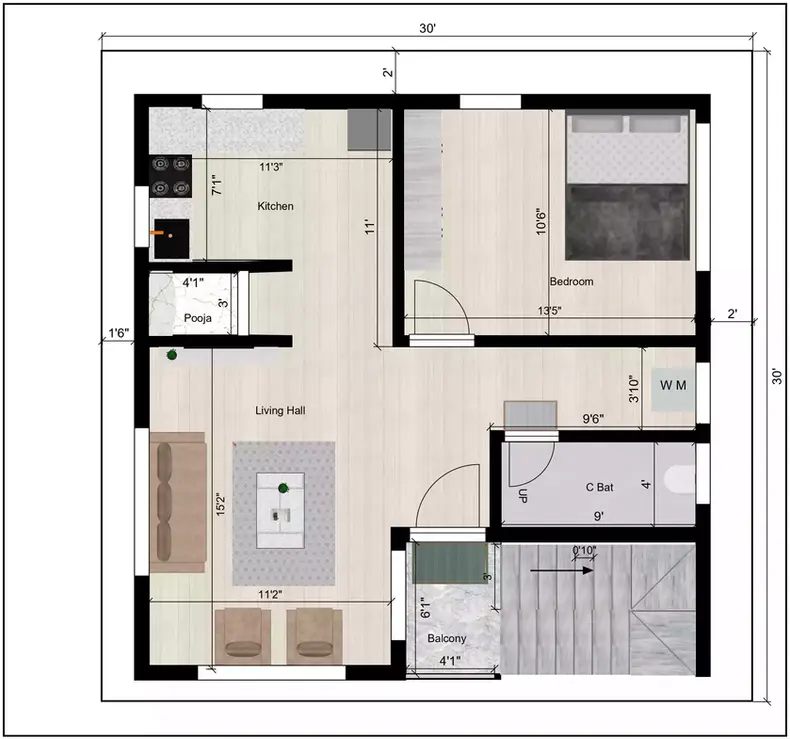

First Floor: Spacious and Functional
Buildup Area: 742 sq ft
Balcony: Measuring 3'11'' x 6'2'' has the potential for gardening and relaxing outside.Main Door: Entrance is on the north side towards the Living Hall (11'2'' x 15'2'') which is in the northeast.Open Kitchen: 11'3'' x 7'' located in the southeast of the house next to the Pooja Room (4'1'' x 3'').Bedroom: Situated in southwest corner of the house (13'5'' x 10'6'') for further privacy.Common Bathroom: 9' x 4' located in the northwest for easy access.Washing Machine Point Area: 9'6'' x 3'10'', located in the west for accessibility.
Second Floor: Consistent Design

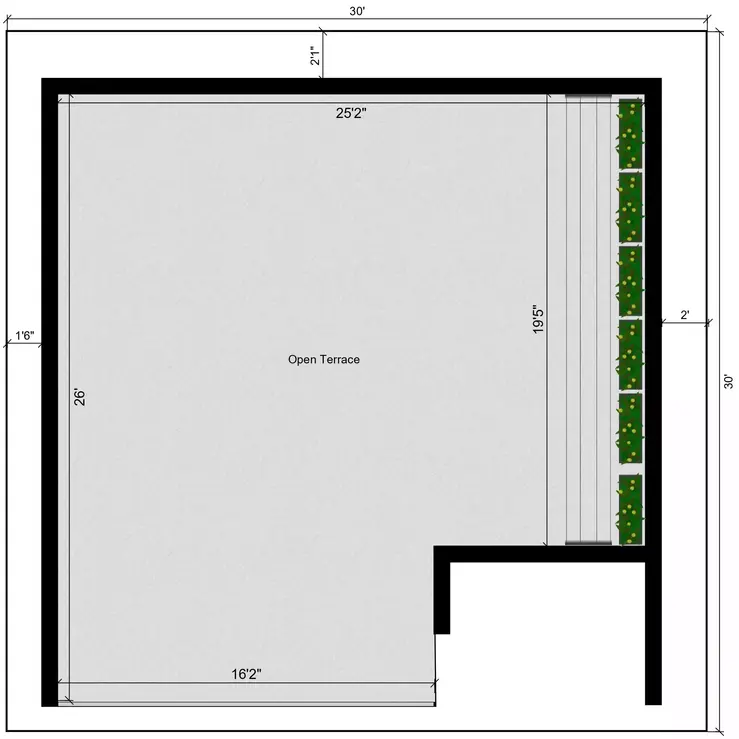

Mirrored Layout: This is a replica of the first floor to maintain ease in use and symmetry.Expandable Design: Allows easy addition and altercation of other floors.Terrace Floor: Leisure and RelaxationOpen Terrace: Measures 25'2'' x 26' for sitting, chatting, gardening and celebrating small events.Ventilation and Windows: Added throughout the space to provide natural light and airflow into the rooms.
Key Features
Efficient Design: Optimized arrangements for smooth integration of living areas with utilities.
Balconies and Terraces: Offer unimpeded access to outdoor spaces for fresh air and greenery.
Spiritual and Functional Elements: Practical pooja room placement along with washing machine points in the unit.
Future Scalability: Reproducible framework allows for possible vertical extensions later.
