Complete 2D House Plan Layout
3bhk duplex house with vastu, west facing with parking
This 30’ x 20’ duplex house plan west facing has an excellent distribution of spaces across G+3 floors and combines ease of access, comfort, and multipurpose usage of family spaces to suit modern family needs. The layout is efficient to support both indoor and outdoor activities, despite its size.
Ground Floor: Base of Operations
Parking Area: 29’ x 19’, located for easy access to vehicles.Staircase: Located in the northwest provides access to upstairs smoothly.
First Floor: Casual Yet Full-featured Living
Balcony: 3’5” x 6’3”, located in front of the stairs for better public access and relaxation.Main Entrance: Northeast facing and entering to the spacious Living Hall (13’9”)Common Bathroom: 4’x 9’, set for better approachabilityOpen Kitchen: 5’6” x 16’8” located in the south east with Pooja Room 2’9” x 2’9” for a spiritual flavor.

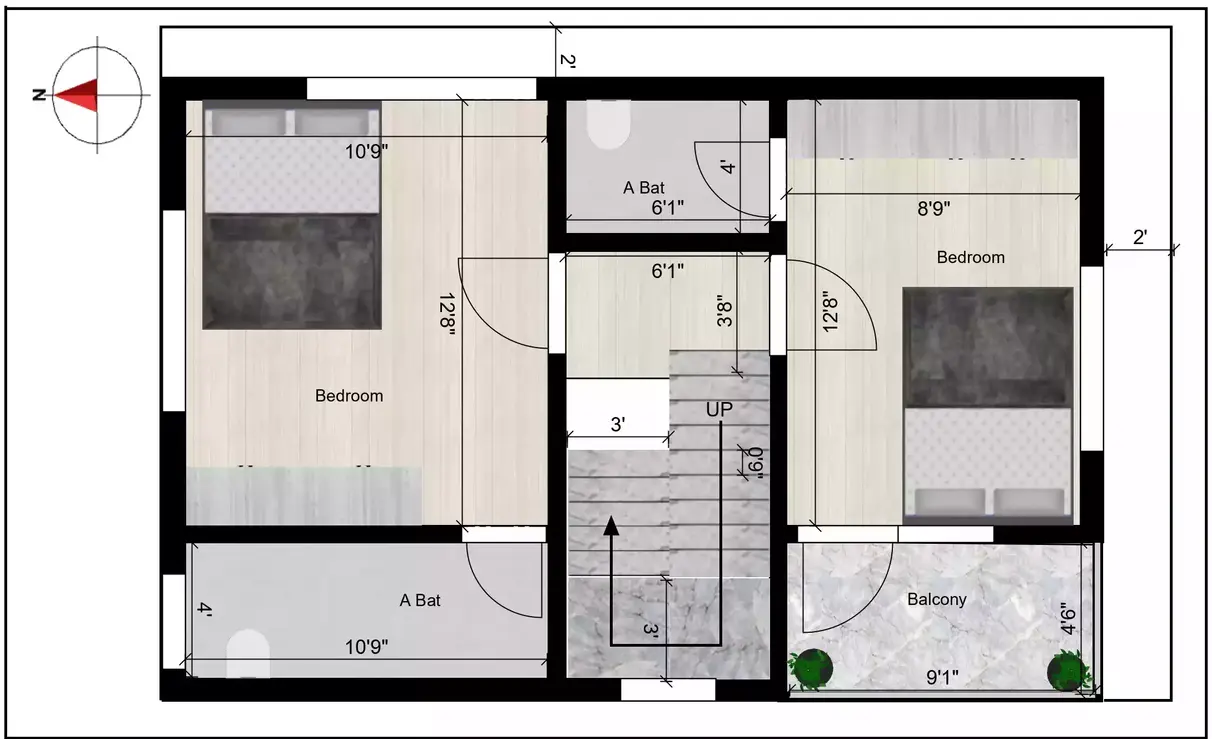

Second Floor: Private yet Multifunctional Areas
Bedroom 1: 8’9” x 12’8” located to the southeast with Attached Bathroom 4’x6’1Balcony: 9’1” x 4’6”. South West facing for leisure.Bedroom 2: 10’9” x 12’8” located Northeast with Attached Bathroom 4’ x 10’9

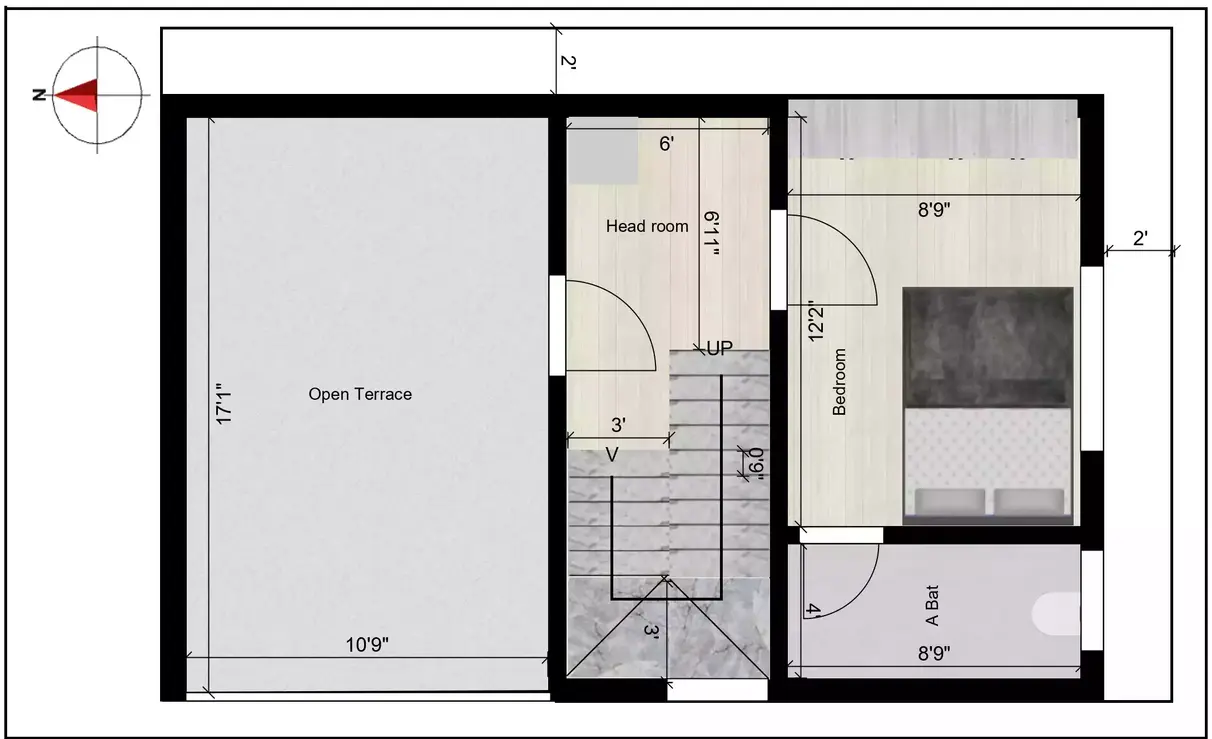

Third Floor: Recreation and Other Activities
Head Room: 6' x 6'11", above the stairs for easy access.Bedroom: 12'2" x 8'9", south with attached bathroom (4' x 8'9").Open Terrace: 17'1" x 10'9", facing north for sunbathing and gardening.
Core Values
Effective Shape: Designed to maximize usage within the limited space available.
Integration with Nature: Balconies and terraces provide further leisure areas.
Pooja Room for Spiritual Practice: Designed for traditional activities.
Privacy and Comfort: Convenience of bedrooms with attached bathrooms.
Natural Air Flow: Optimally designed windows and spaces allow airflow and illumination.
