Duplex house plan size 30*40 with west facing, 3BHK, parking, family hall, pooja room, bar room and head room
The 30 x 40 ft 3bhk duplex house plan of the Husoe building (9.14 × 12.19 m)
Vastu-based, west-facing, 30x40 feet, 3BHK independent duplex house plan constructed within three floors. The ground floor has a parking area, living hall, one bedroom, kitchen, and puja room. The first floor has two bedrooms, a family hall, and a balcony. The second floor has an open bar facility and an open terrace.
Ground floor living hall in the southwest direction measures about 13 feet and 16 feet 7 inches. Main door is in the north direction. Parking measures about 13 feet 1 inches and 14 feet 4 inches. The kitchen in the southeast direction measures about 8 feet 6 inches. Pooja room measures about 3 feet 10 inches and 3 feet 6 inches. The common bathroom measures about 6 feet 9 inches and 4 feet. The setback area on the right side is 1 feet 6 inches. On the back side it is 1 feet 9 inches. On the right side it is 1 feet 11 inches. The bedroom in the northeast direction measures about 11 feet 2 inches and 10 feet with the attached bathroom measuring 4 feet and 6 feet 4 inches.
The first floor balcony in the northwest direction measures about 13 feet 6 inches and 8 feet 9 inches. The master bedroom measures about 13 feet 1 inches and 11 feet 9 inches with the attached bathroom measuring 6 feet 9 inches and 8 feet 11 inches. The family hall measures about 8 feet 6 inches and 12 feet 2 inches.Bedroom in the northeast direction measures about 11 feet 2 inches and 10 feet with attached bathroom measuring 4 feet and 6 feet 4 inches.

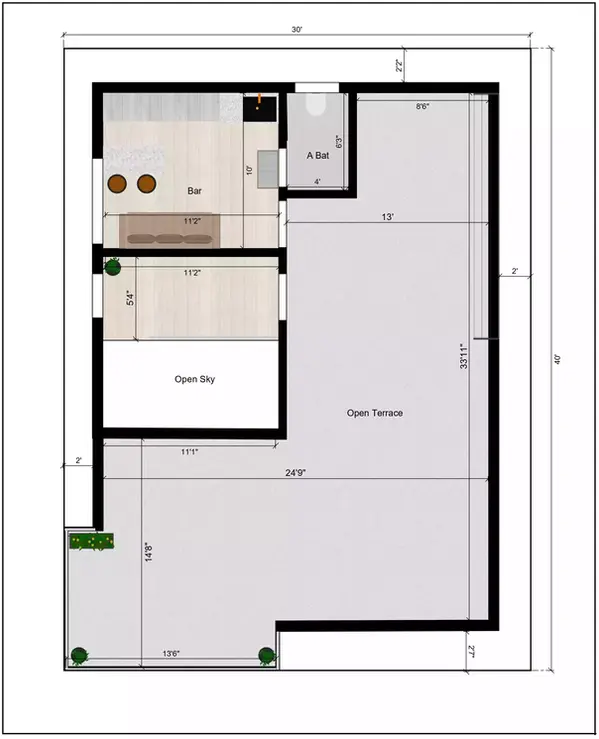

Terrace floor open terrace measures about 24 feet 9 inches and 33 feet 11 inches. The bar in the north-east direction measures about 11 feet 2 inches and 10 feet, with the attached bathroom measuring 4 feet and 6 feet 3 inches. Headroom measures about 11 feet 2 inches and 5 feet 4 inches.
To get a better idea of this house design, you can also check the 3D elevation and enjoy the 3D Walkthrough for this plan. To explore it instantly, click the 3D view button.
