Complete 2D House Plan Layout
5 bedrooms south facing duplex western house plan along with parking
Plan 29 x 50 ft (8.84 x 15.24 m) house plan with car parking south facing
This is a south-facing, 29 feet by 50 feet, 5BHK duplex house plan constructed within three floors. The ground floor has a spacious parking area, two bedrooms, living hall, and the kitchen. The first floor has three bedrooms, family hall. The terrace floor has an open terrace, a storeroom with an attached bathroom.
The ground floor kitchen in the south-east direction measures about 10 feet 3 inches and 7 feet 8 inches. Living hall along with the dining area measures about 14 feet 1 inches and 19 feet 11 inches. The main door is in the south direction. The setback area in the right and left side is 1 feet 6 inches and 1 feet. The parking area is located in the south-east direction. The bedroom in the north-west direction measures about 11 feet 4 inches and 11 feet 6 inches having an attached bathroom. The bedroom in the north-east direction measures about 12 feet 4 inches and 13 feet 9 inches with an attached balcony and attached bathroom measuring 7 feet 6 inches and 4 feet 1 inches.

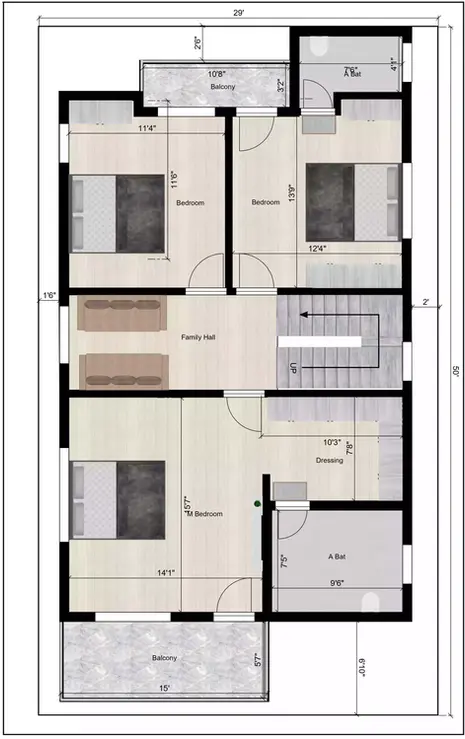

The first floor balcony in the south-west direction measures about 15 feet and 5 feet 7 inches. The master bedroom in the south-west direction measures about 14 feet 1 inches and 15 feet 7 inches. The dressing room measures about 10 feet 3 inches and 7 feet 8 inches. The attached bathroom measures about 9 feet 6 inches and 7 feet 5 inches. The bedroom in the north-west direction measures about 11 feet 4 inches and 11 feet 6 inches. The bedroom in the north-east direction measures about 12 feet 4 inches and 13 feet 9 inches. With an attached balcony measuring 10 feet 8 inches and 3 feet 2 inches. With an unattached bathroom in the north-east direction measuring 7 feet 6 inches and 4 feet 1 inches.
The terrace floor open terrace measures about 24 feet 3 inches and 37 feet 2 inches. The storeroom measures about 12 feet 4 inches and 13 feet 9 inches, with the attached bathroom measuring 7 feet 6 inches and 4 feet 1 inches.
