North facing 2bhk duplex western house plan with parking
25 × 55 ft House Plan – North Facing (7.62 × 16.76 m)

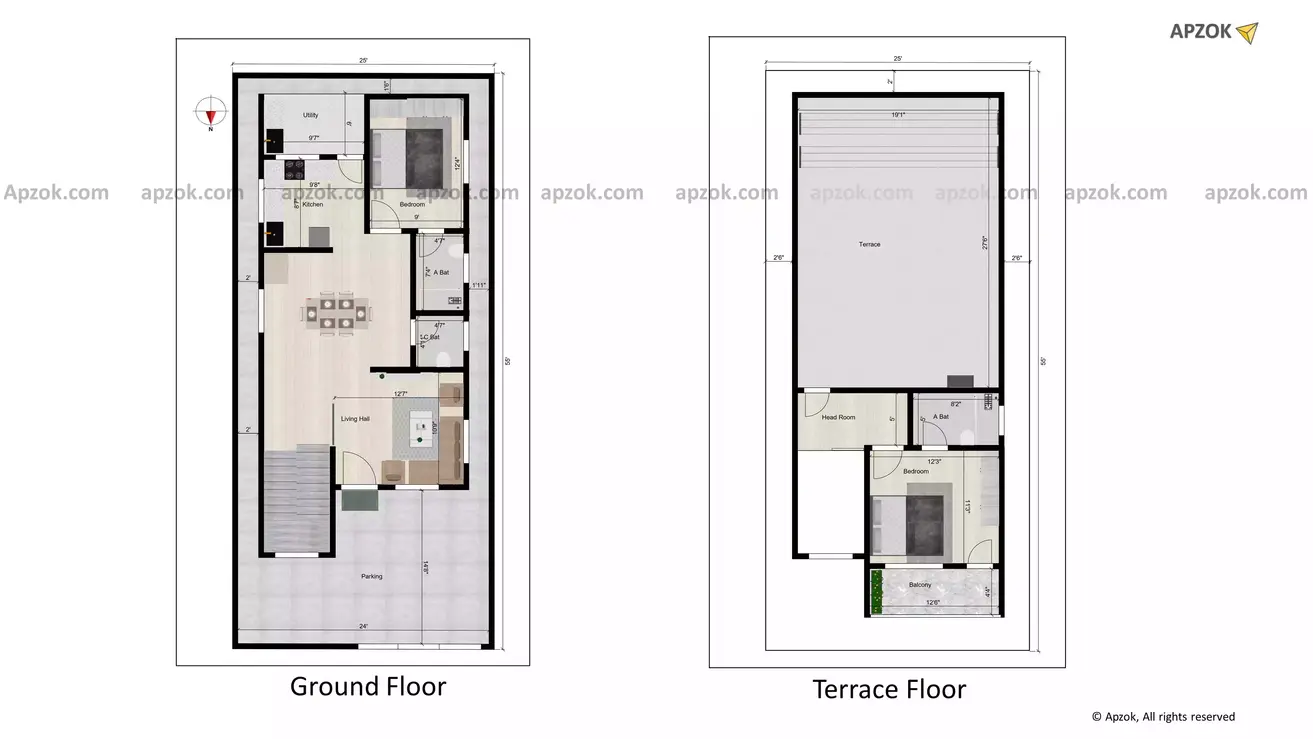

A north-facing, 25 × 55 ft (7.62 × 16.76 m) 2BHK duplex house plan constructed for an independent purpose. This is a two-floor building. The ground floor has a small parking area along with a living hall, kitchen, utility area, and one bedroom. The first floor has one bedroom along with a balcony facility.

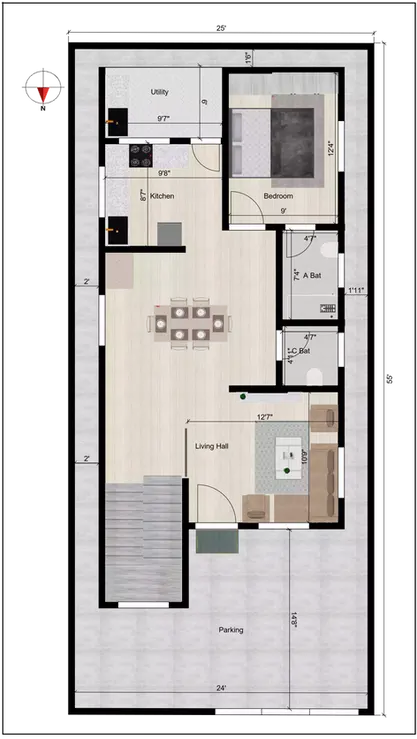

The ground floor main door is in the north direction. A puja unit is also provided. The parking area in the north-west direction measures about 24 × 14.8 ft. The living hall located in the north-west direction measures about 12.7 × 10.9 ft. The common bathroom measures about 4.7 × 4.11 ft. The bedroom in the south-west direction measures about 9 × 12.4 ft with an attached bathroom measuring 4.7 × 7.4 ft. The kitchen in the south-east direction measures about 9.8 × 8.7 ft with an attached utility measuring about 9.7 × 6 ft. The setback area on the right and left side is 2 ft; at the back side it is 1.6 ft.
The terrace floor open terrace measures about 19.1 × 27.6 ft. The headroom is 5 ft wide. The bedroom in the north-west direction measures about 12.3 × 11.3 ft with an attached bathroom in the south-west direction measuring about 8.2 × 5 ft. The balcony located in the north-west direction measures about 12.6 × 4.4 ft.
