3 bedroom duplex house plan Vastu North facing with 1bhk Ground floor rent along with car parking
Plan 25 * 45ft (7.62 × 13.72 m) design plan of the Residential Building
This is a north facing 1BHK rental house on the ground floor along with a 3BHK duplex house from the first floor constructed on the principles of Vastu within a 25 feet and 45 feet north facing plot. This is a four-floor building. The ground floor has a parking area along with 1BHK. The first floor has living hall, kitchen, one bedroom, puja room, utility area, and the passage area. The second floor has two bedrooms, a living hall, and a balcony. The terrace floor has an open terrace, laundry room, and the headroom.

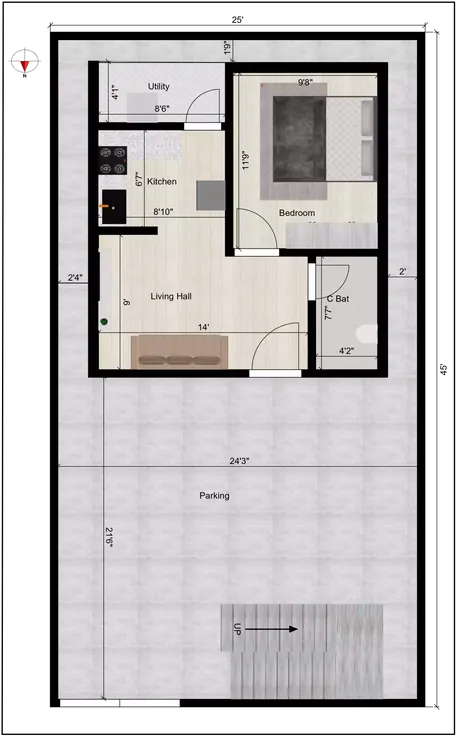

The ground floor parking area measures about 24.3 x 21.6 ft. The main door is in the north direction. The living hall measures about 14.0 x 6.0 ft. The kitchen in the south east direction measures about 8.10 x 6.7 ft. The utility area directly connected to the kitchen in the south east direction measures about 8.6 x 4.1 ft. The bedroom in the south west direction measures about 9.8 x 11.9 ft. The common bathroom measures about 4.2 x 7.7 ft. The setback area on the right side is 2.0 ft, at the back side it is 1.9 ft, at the right side it is 2.4 ft.

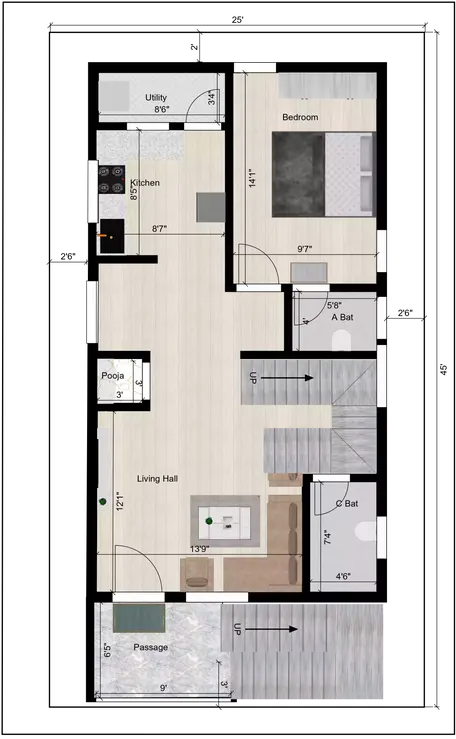

The first floor puja room measures about 3.0 x 3.0 ft. The living wall in the northeast direction measures about 13.9 x 12.1 ft. The common bathroom measures about 4.6 x 7.4 ft. The passage measures about 9.0 x 6.5 ft. In the southeast direction measures about 8.7 x 8.5 ft.
The utility area in the southeast direction measures about 8.6 x 3.4 ft. The bedroom in the southwest direction measures about 9.7 x 14.1 ft with an attached bathroom measuring 5.8 x 4.0 ft.
The terrace floor headroom measures about 18.7 x 41.8 ft. The headroom is 12.2 ft wide. The common bathroom measures about 5.8 x 4.0 ft. The laundry room measures about 4.6 x 7.4 ft.
