Complete 2D House Plan Layout
Vastu North facing house plan 3bhk duplex with 1bhk Ground floor rent along with Parking
25 * 45ft (7.62 × 13.72 m) duplex house of the Residential Building
A north-facing 25 feet x 45 feet 1BHK rental house in the ground floor, along with a 3BHK duplex house from the first floor. This is a spacious 25 feet x 45 feet 3BHK duplex house plan, along with a 1BHK rental house on the ground floor. This is a 4-floor building. The ground floor has a parking area, along with a 1BHK rental house. The first floor has a living hall, bedroom, kitchen, utility area, dining hall, along with a balcony area. The second floor has two bedrooms, a family hall, and a balcony.
The ground floor bedroom in the southwest direction measures about 9 feet 6 inches and 11 feet 9 inches. The utility area in the southeast direction measures about 8 feet 6 inches and 4 feet 1 inches. The living area in the northeast direction measures about 14 feet and 9 feet. The common bathroom in the northwest direction measures about 4 feet 2 inches and 7 feet 7 inches. The setback area on the right side is 2 feet 1 inches, on the left side it is 2 feet 4 inches. The parking area measures about 24 feet and 21 feet 4 inches.

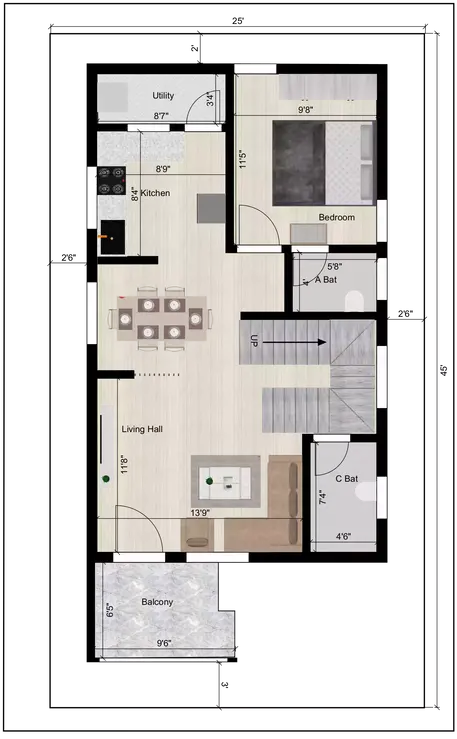

The first floor balcony measures about 9 feet 6 inches and 6 feet 5 inches. The living hall is located in the northeast direction measuring about 13 feet 9 inches and 11 feet 8 inches. The main door is in the north direction. The common bathroom in the northwest direction measures about 4 feet 6 inches and 7 feet 4 inches. A spacious dining hall is also provided. The kitchen in the southeast direction measures about 8 feet 9 inches and 8 feet 8 inches. The utility area measures about 8 feet 7 inches and 3 feet 4 inches. The bedroom in the southwest direction measures about 9 feet 8 inches and 11 feet 5 inches with an attached bathroom measuring 5 feet 8 inches and 4 feet.
The second floor family hall measures about 13 feet 4 inches and 19 feet 8 inches located in the northeast direction. The balcony measures about 18 feet 1 inches and 6 feet 6 inches directly connected to the family hall. The common bathroom measures about 4 feet 4 inches and 7 feet 4 inches. The bedroom in the southeast direction measures about 8 feet 3 inches and 11 feet 9 inches. The bedroom in the southwest direction measures about 9 feet 5 inches and 11 feet 9 inches with the common bathroom measuring about 5 feet 6 inches and 3 feet 8 inches.
The Third floor bedroom in the southwest direction measures about 9 feet 7 inches and 14 feet 1 inches. The bedroom in the southeast direction measures about 8 feet 6 inches and 14 feet 1 inches. The living hall measures about 13 feet 9 inches and 20 feet 1 inches. The common bathroom measures about 4 feet 6 inches and 7 feet 4 inches. The balcony measures about 19 feet 2 inches and 6 feet 9 inches.
The terrace floor has an open terrace and the headroom. The terrace floor open terrace measures about 18 feet 8 inches and 39 feet 1 inches. The headroom is 7 feet 8 inches wide.
