North facing 4bhk duplex house plan with western design ,lift and parking
20 * 57 ft(6.10 x 17.37 m) house plan 4 bhk north facing
This is a north facing 20 feet by 57 feet 4 BHK duplex house plan constructed with a lift facility. This house has 4 floors. The ground floor has a parking area, living hall, kitchen and dining area along with a utility area. The first floor has 2 bedrooms along with a family hall. The terrace floor has an open terrace along with a headroom. The second floor has 2 bedrooms with a balcony and a family hall.
The ground floor utility area in the south east direction measures about 7 feet 1 inches and 5 feet 6 inches. The kitchen and dining hall measures about 14 feet 8 inches and 12 feet 10 inches. The common bathroom measures about 7 feet 3 inches and 4 feet 10 inches. The setback area in the right and left side is 1 feet 6 inches. The living hall measures about 14 feet 8 inches and 19 feet 7 inches. The main door is in the north direction. Parking measures about 19 feet 2 inches and 14 feet 5 inches.
The first floor bedroom in the southwest direction measures about 14 feet 9 inches and 14 feet 8 inches. Width attached bathroom measuring 7 feet 2 inches and 4 feet 9 inches. The balcony directly connected to this room measures about 7 feet 8 inches and 4 feet 6 inches located in the southeast direction. The living hall measures about 14 feet 8 inches and 19 feet 8 inches. The bedroom in the northeast direction measures about 14 feet 9 inches and 9 feet 4 inches. The balcony measures about 6 feet 6 inches and 3 feet 9 inches. Width attached bathroom measuring 4 feet 6 inches and 8 feet 9 inches.
The second floor bedroom in the southwest direction measures about 14 feet 9 inches and 14 feet 8 inches. Width attached bathroom measuring 7 feet 2 inches and 4 feet 9 inches. The balcony directly connected to this room measures about 7 feet 8 inches and 4 feet 6 inches located in the southeast direction. The living hall measures about 14 feet 8 inches and 19 feet 8 inches. The bedroom in the northeast direction measures about 14 feet 9 inches and 9 feet 4 inches. The balcony measures about 6 feet 6 inches and 3 feet 9 inches. Width attached bathroom measuring 4 feet 6 inches and 8 feet 9 inches.

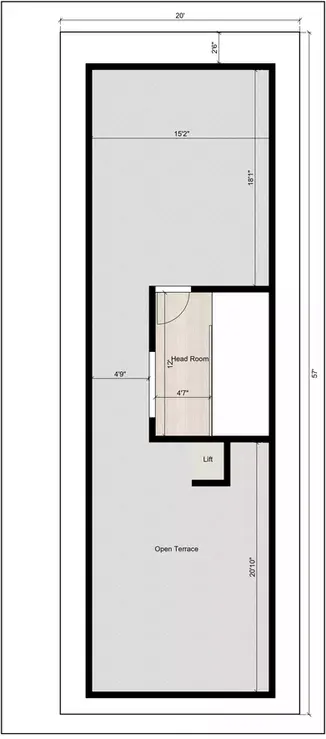

The terrace floor open terrace measures about 15 feet 2 inches and 18 feet 1 inches. The headroom measures about 4 feet 7 inches and 12 feet.
To get a better idea of this house design, you can also check the 3D elevation and enjoy the 3D Walkthrough for this plan. To explore it instantly, click the 3D view button.
