20 * 40 house plan 3bhk duplex modern design with East facing plan along with Car parking
20 * 40 ft (6.10 × 12.19 m) 3 bhk house plan plot and designed with Ground + 3 floors
An east facing 20 feet by 40 feet. Vastu based 3BHK duplex house plan constructed for an independent purpose consisting of four floors. The ground floor has a spacious parking area along with kitchen, dining, living hall and the puja room. The first floor has two bedrooms along with a family hall. The second floor has a lounge area, master bedroom, storeroom, study room and attached bathroom. The third floor has an open terrace along with the headroom.

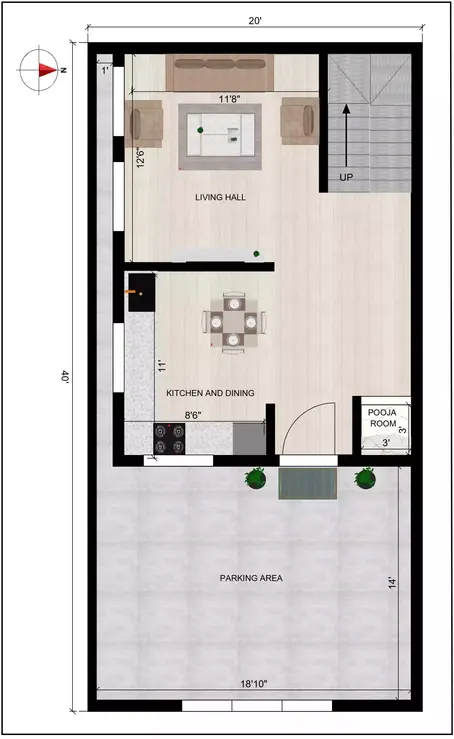

The ground floor living area located in the southwest direction measures about 11 feet 8 inches and 12 feet 6 inches. The setback area on the left side is 1 feet. The puja room in the northeast direction measures about 3 feet and 3 feet. The kitchen and dining hall in the southeast direction measures about 8 feet 6 inches and 11 feet. The parking area measures about 18 feet 10 inches and 14 feet.
The first floor master bedroom in the southwest direction measures about 11 feet 8 inches and 15 feet, with an attached bathroom measuring 8 feet and 4 feet. The common bathroom measures about 8 feet and 4 feet 2 inches. The family hall measures about 8 feet 8 inches and 12 feet 8 inches. The kids bedroom measures about 17 feet 2 inches and 10 feet, with an attached bathroom measuring 8 feet and 3 feet 6 inches.
The second floor study room in the northeast direction measures about 9 feet 6 inches and 10 feet, with an attached balcony measuring 6 feet and 7 feet 2 inches. The bathroom measures about 4 feet and 7 feet 2 inches. The lounge area measures about 9 feet 6 inches and 8 feet 2 inches. The storeroom measures about 7 feet 2 inches.
The terrace floor headroom measures about 5 feet and 6 feet 8 inches. The open terrace measures about 17 feet 2 inches and 39 feet 2 inches.
