Complete 2D House Plan Layout
1BHK rental 20 by 30 House plan with south facing, parking and 4BHK for duplex with passage, utility, pooja room and lougue
This south facing duplex home is built according to a specific 20 30 south face house plan 4bhk with 1hk plot requirement. It is stretched across four floors as well as having contemporary designs which emphasize great comfort while increasing ease of use.

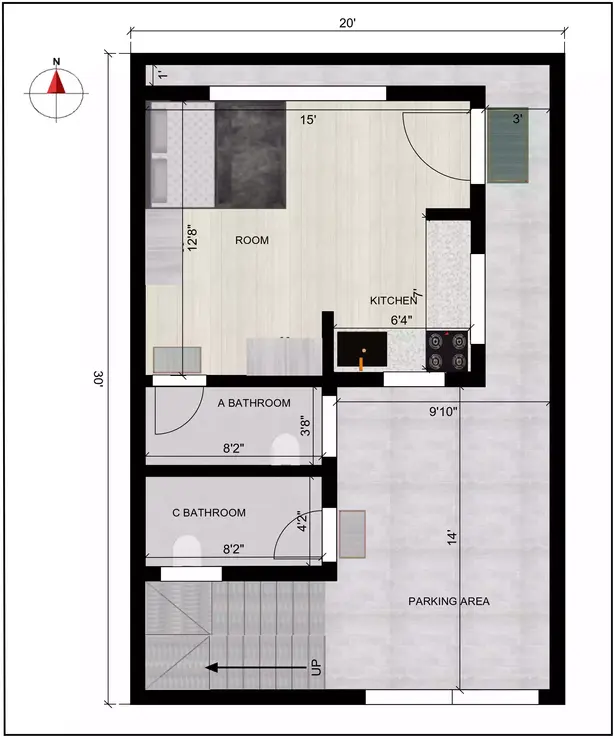

Ground Floor:
The parking is placed first in the floor plan and has dimensions of 9’10” x 14’, which gives a good amount of space for vehicles. The staircase, located in the southwest corner, provides a common area for circulation to upper floors. Responsive design adds an 8’2” x 4’2” common bathroom which offers better use of space. The entrance of the house, in the northeast corner of the house facing east, leads into the primary room and comes with an additional door. Northwest Corner holds a big room of dimensions 12”8’ x 15’ which has an additional bath of 8’2” x 3’8” attached to it for greater accessibility and convenience. In the southeast portion opens up a kitchen area of size 6’4” x 7” which is small but helps with easy meal making.
Ground floor:
Straight in front of duplex stairs lies a passage entrance of 10'4'' x 27'8'' which allows an uninterrupted flow into the living areas. Door to this level is located at the northeast facing east similar to ground floor. Living hall which is 10' x 11'6'' is located at the northwest corner for family comfort. The duplex stairs continue in the west so as to maintain vertical circulation. Southeast holds an open kitchen of 9'6'' x 9'' with a utility area of 5' x 5'6'' making the kitchen more usable
Upper Floor:
The upper floor adds a loo of 10'3'' x 5' in front of the stairs which works as a distributing area for all the rooms on this floor. Master bedroom of 14'2'' x 11'2'' with attached bathroom 4'x11'2'' is provided in the southwest corner offering a retreat bathroom. The northwest Kids bedroom acts like responsive space of 14'2'' x 10'' attached with supporting bathroom 4'x10'' for younger users.
Third Floor:
This level is no different than the previous ones in terms of flexibility. It starts with a lounge area measuring 10’2” x 5’ located centrally in front of the stairs. A guest room measuring 14’2” x 10’ is located at the northwest corner with a bathroom (4’ x 10’) for ensuite shower facilities. The southwestern corner contains another bedroom measuring 14’2” x 11’2”. This room also has a bathroom of 4’ x 11’2” that is attached to it.
Terrace Floor:
This floor successfully combines work and relaxation activities. Headroom measuring 10’4” x 5’ gives access to the rooftop facilities. There’s also a store that functions as a laundry area and measures 6’ x 6’. The terrace has two large open spaces, one on the north measuring 18’8” x 10’ and the other at the south measuring 18’8” x 11’2”. These areas can be used for physical activities, relaxation, and social gatherings.
Summary:
The design of the home in question is a G+4 duplex which has been developed with great attention to detail in the given south-facing plot of 20’ x 30’..Private rooms, utility spaces, and other areas like the big terraces are well distributed throughout the duplex to create an integrated design that meets the highest standards of elegance and functionality required for modern living.
