Complete 2D House Plan Layout
3BHK duplex 20 by 30 House plan with west facing, parking, passage, laundry, pooja room, utility and balcony
This is a west-facing 3BHK 20 x 30 ft (6.09 x 9.15 m) duplex house plan constructed based on the principles of Vastu with special features like puja room, dining hall, and many other special features. This is a 4-floor building. The ground floor consists of spacious parking area. The first floor consists of living hall, puja room, kitchen, dining hall, utility, and the passage. The second floor consists of two bedrooms with a transportation and a balcony. The terrace floor consists of one bedroom with a laundry space and open terrace.
The ground floor consists of a spacious parking area measuring about 18 feet 8 inches and 29 feet. The whole space is provided for the parking area.
From the first floor, 3 BHK duplex house plans start. The passage consists of 3 feet 9 inches and 5 feet 1 inches. The main door of this house is in the north direction. The living hall measures about 14 feet 11 inches and 10 feet 5 inches. The kitchen in the southeast direction measures about 7 feet 6 inches and 14 feet 3 inches with an attached utility measuring about 5 feet 11 inches and 3 feet 1 inches. The puja room measures about 3 feet 11 inches and 4 feet 4 inches. The space in front of the puja room is 4 feet 4 inches.

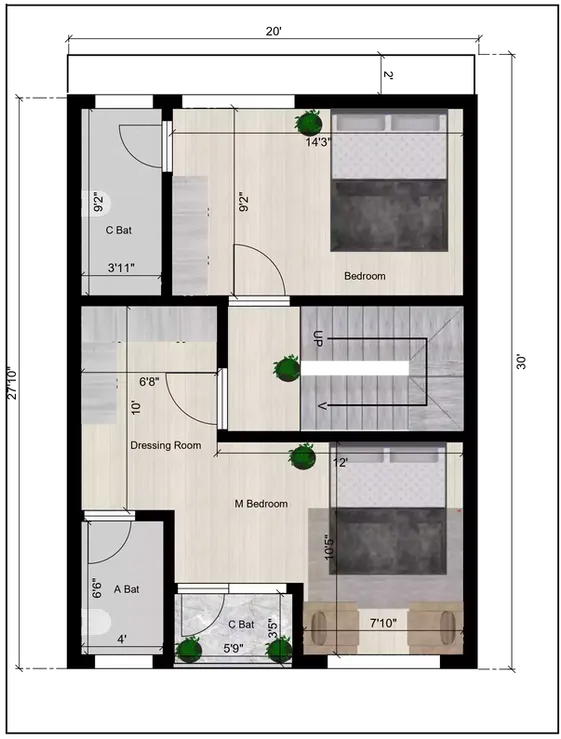

The second floor consists of two bedrooms. The first bedroom in the southeast direction measures about 14 feet 3 inches and 9 feet 2 inches with a common bathroom measuring about 3 feet 11 inches and 9 feet 2 inches. The bedroom in the southwest direction measures about 12 feet and 10 feet 5 inches with a dressing room space located toward northeast direction measures about 6 feet 8 inches and 10 feet. Common balcony measures about 5 feet 9 inches and 3 feet 5 inches with attached bathroom measuring 4 feet and 6 feet 6 inches.
