Complete 2D House Plan Layout
3BHK duplex 20 by 30 House plan with south facing, parking, pooja room, lougue, store room, gym area and balcony

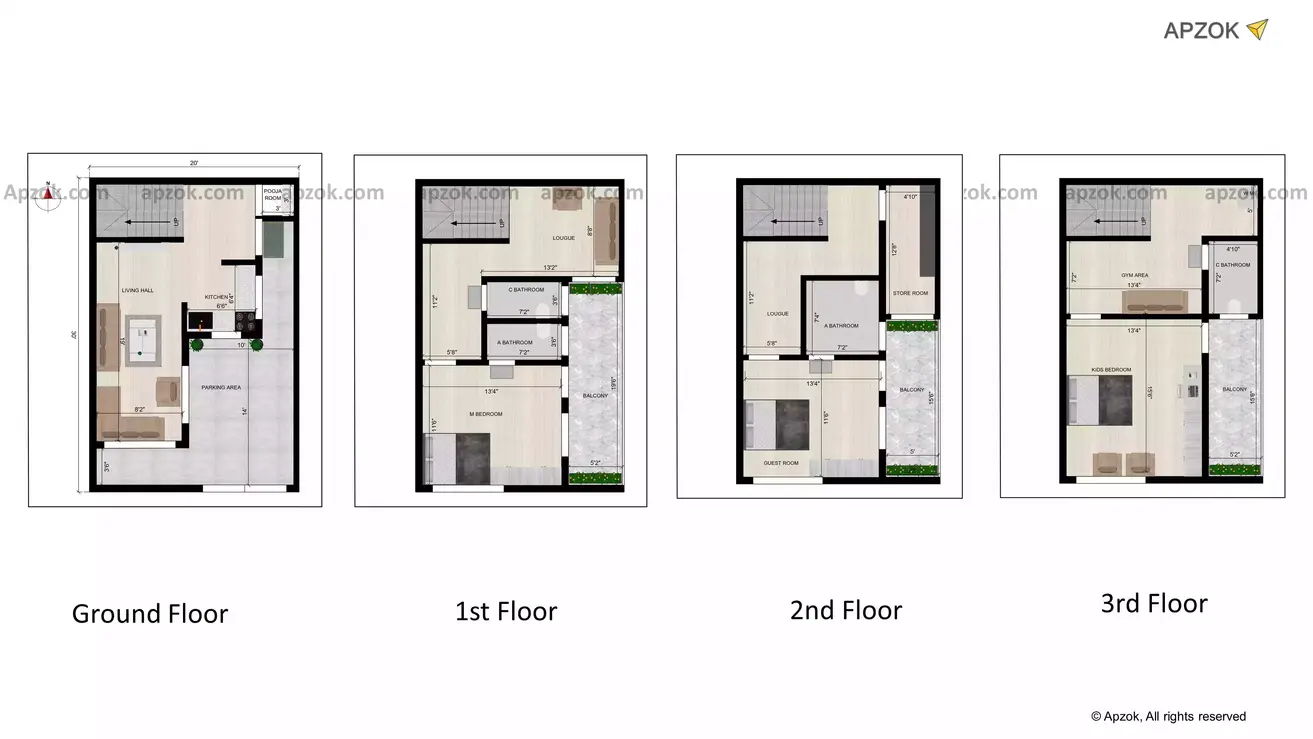

This thoughtfully designed south facing duplex plan conveniently covers a modest 20 30 house plan 3 bedroom plot and spans G+4 floors showcasing modern design alongside efficient use of space.
Ground Floor:
To maximize charm and ease of use, the ground floor is entirely functional starting with a parking area that offers sufficient room at 10’ x 14’ for vehicles to move in and out freely with no risk of damage. The main entrance at the northeast corner facing east guarantees the entry is inviting as well as practical and easy to use. Next to the entrance is a pooja room that is both compact and peaceful at 3’ x 3’. The pooja room is also quite serene. The duplex staircase in the northwest corner goes up with poise capturing vertical circulation gracefully. The living hall measured at the southwest corner 19’ x 8’2’’ offers enough space for relaxation or hosting which means this floor gives convenience and ease for day to day life.
First Floor:

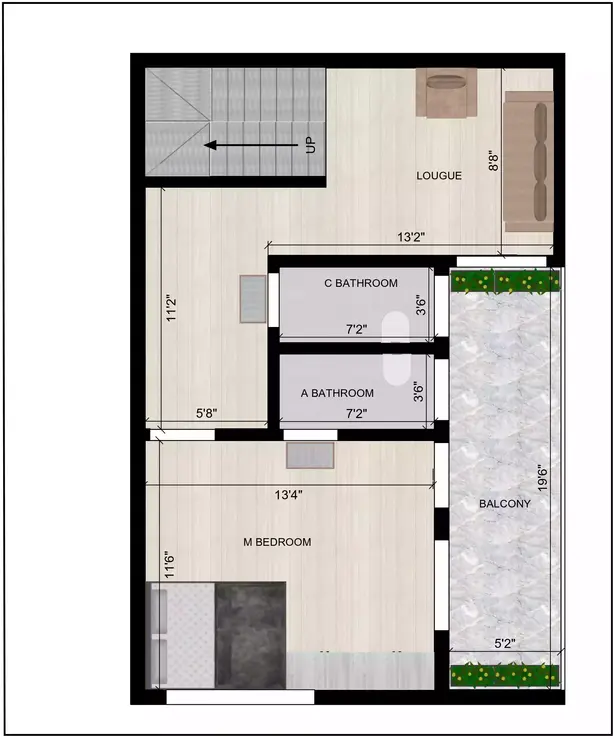

Going up to the first floor, a lounge area measuring 13’4” x 11’6” opens immediately in front of the stairs. This common lounge area acts as a coordination hub to access the other spaces. This floor comprises a utility common bathroom measuring 7’2”x 3’6”. On the southwest side accommodates the master bedroom which is a spacious retreat measuring 13’4”x 11’6” which comes with an attached bathroom (7’2”x 3’6) Also adding more value is the balcony towards the East measuring 5’2’’x 19’6’’ which offers outdoor sitting and exposure to fresh air.
Second Floor:
On the second floor there is a lounge measuring 5’8” x 11’2” that is centrally positioned in front of the stairs. The northeastern portion houses a store room that is conveniently sized at 4'10"x12'8" which gives enough space to store items. The southwest corner is guest room which measures 11’6”x 13’4” and has an attached bathroom measuring 7’4” x 7’2”. To make the design more sophisticated there’s a balcony southeast measuring 5’x15'6" which adds to the aesthetics of the guest room.
Third Floor:
The third floor maintains the sufficiency and sophistication of the lower levels. It features a gym area on the west measuring 13’4” x 7’2,” good for fitness enthusiasts or multi-use space. A common bathroom measuring 7’2” x 4’10” is available for privacy. The southwest section has a kids’ bedroom measuring 13’4” x 15’6,” furnished with an accompanying balcony (5’2” x 15’6”) to the southeast which provides shelter as well as an inviting outdoor area.
Terrace Floor:
The terrace floor boasts of a crowning design with a headroom measuring 10’6” x 5’ allowing for access to the utmost level. The large open terrace is divided into two major sections, one in the south measuring 18’10” x 23’2”, and the other on the north side. This generously adds to the outdoor space great for hosting, gardening, or simply lounging in the sun.
Summary:
This G+4 duplex plan utilizes each and every inch of the 20’ x 30’ south-facing plot spatially, merging private and shared areas almost effortlessly. The design comes with ample rooms, a spacious terrace, a gym, and plenty of storage spaces, all showcasing modern style and functionality tailored for contemporary living.
