Complete 2D House Plan Layout
1BHK rental 20 by 30 House plan with south facing, parking and 3BHK for duplex with passage, pooja room, utility, lougue and study room

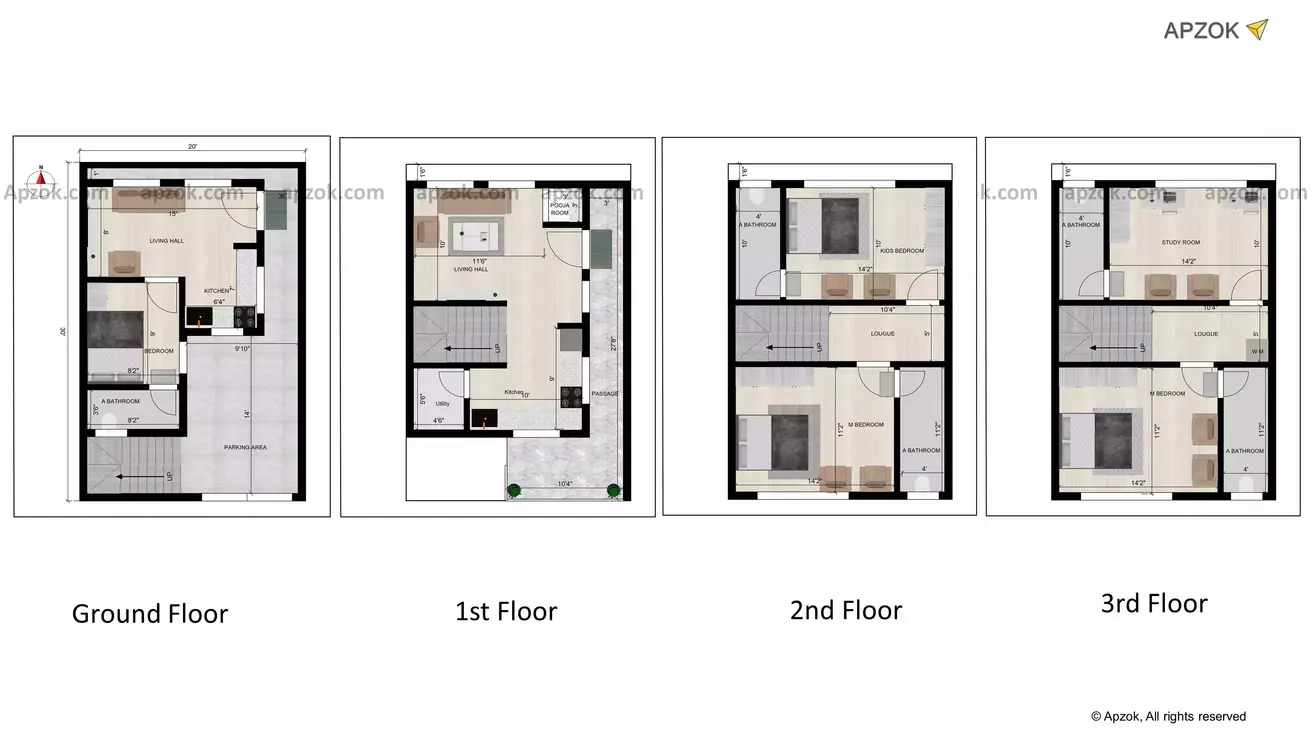

This duplex house plan south facing 3bhk with 1bhk on a 20' x 30' feet plot combines modern living and functional spaces into four floors.
Ground Floor:
Starting from the base, we have the ground floor level 1 which comes with a fully enclosed parking space 9'10" x 14' provided for vehicles. The staircase set in the southwest part serves as a thoroughfare to the upper floors. The principal door is in the east facing northeast direction, so as to welcome you into the house. On the right hand side adjacent is a living hall of the size of 15' x 8' which is fairly spacious to the northwest which can be used for entertainment purposes and or other activities. In the southeast position, an open kitchen comes with the measurements of 6'4" x 7' is also a part of the unit for bread and butter purposes. A bedroom 9' x 8'2” in area with attache bathroom 3'6" x 8'2" is also present to the southwest which is fairly moderate in size for a bedroom of this nature
First Floor:
Upon arrival at the first floor, The Passage with its inviting dimensions of 10'4'' x 27'8'' is directly in front of the staircase, offering a warm welcome and free flow of movement. The pooja room has also been fitted in the northeast corner, retaining the elevated thematic flow of the apartment at 3' x 3’; compact but precise. The living hall in northwest accommodates a cozy living hall measuring 10’ x 11’6,” which is also perfect for family relaxation. The duplex stairs are located in the west facilitating easy access to the upper levels. In the southeast section, an open kitchen measuring 10’ x 9' with a utility area sized 5'6'' x 4'6'' is located, both assuring ease and practicality.
Second floor:
The second floor contains a lounge that is, on average, 10’4” x 5’ and located directly in front of the staircase. This is the first room on the second floor. A master bedroom with its own bathroom is located on the southwest corner of the floor. The dimensions for the master bedroom are 11'2" x 14'2," while the luxurious bathroom measures 4' x 11'2". In the northwest corner of the floor lays a kids’ bedroom, which measures 14'2" x 10' . It also has an attached bathroom, which is 4' x 10', ensuring more privacy and comfort for the younger residents.
Third Floor:
The layout on the third floor remains the same as the second floor. It kicks off with a lounge area, which is also 10'4" x 5', located directly in front of the staircase. Another master bedroom is located on the southwest part of the floor. Its dimensions are, quite consistently, 11'2" x 14'2". The other attached bathroom on this floor is also 4' x 11'2" - a reasonable degree of consistency will remain across the two floors. A study room sits on the north side of the building, which spans 14'2" x 10' and also includes an attached bathroom measuring 4' x 10'. This enhances the versatility of the room as an ideal workspace or learning area.
Terrace Floor:
The terrace floor intricately integrates additional outdoor areas with functional enclosures. A headroom of 10'4" x 5' is accessible from the core of the building, allowing closet access to the rooftop. The terrace is divided into two distinct open spaces. The one to the north measures 10' x 18'8" and the one to the south measures 18'8" x 11'2". These are suitable for recreation, relaxation, gathering, or simply enjoying the lovely weather and beautiful surroundings.
Summary:
The G+4 duplex plan is designed with a 20' x 30' plot in mind. It attempts to provide both private and communal spaces for maximum comfort. The home's layout on every floor is sophisticated, combined with the generous terraces which gives this home functionality and modern architecture, thus, attending to all requirements of contemporary living.
