Complete 2D House Plan Layout
1BHK rental 20 by 30 House plan with west facing, parking and 2BHK for duplex with passage, utility, lougue, balcony, laundry and store

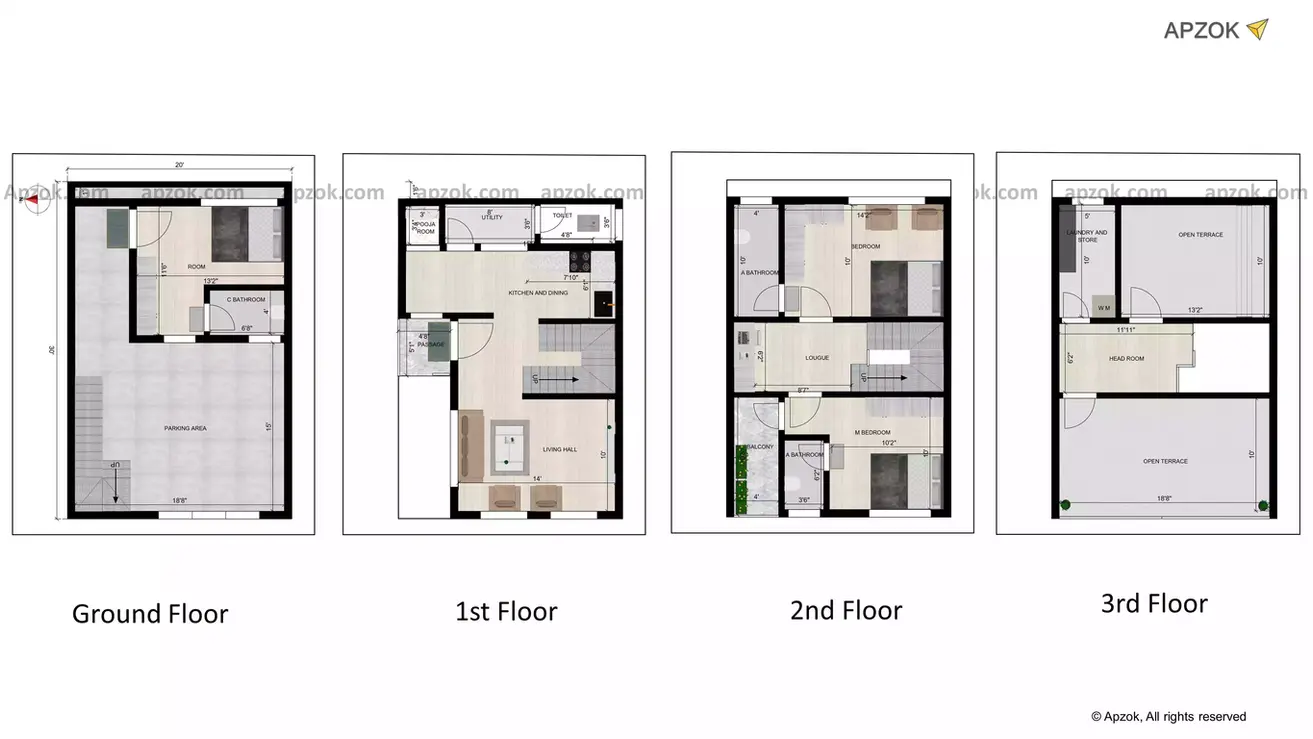

This duplex design is planned with a 20 * 30 house plan 2bhk 3d west-facing plot and has G+3 floors to fully maximize available space.
Ground Floor Section:
This entire floor is set aside for parking and functional spaces. Parking space is quite sizable, measuring at 18’8” x15”. The staircase is located in the left side of the building and goes up to the upper floors. The parking area has also been constructed within a room. The main entrance door has been placed purposely on the north east corner so that it opens towards the north. Additionally there is a room on the second floor which is placed on the south east corner with the dimensions 11’6” x 13’2” which can be used at the office, also can act as guest room. On the other side of the floor, there is common bathroom measuring 6’8” x4’ located in the South West corner for eas of accessibility.
First Floor:
There's a passage of 4'8'' x 5'1'' leading to the main areas of interest from the staircase. The first floor main door, as on the ground floor, is located to the North. Worship room, or pooja room, takes space in the northeast corner with an approximate measurement of 3' x 3'4''. Combined open kitchen and dining area in the southeast serve both function and style at 7'10" x 6'1", or a side (southeast). The kitchen also has an attached utility area of 8' x 3'6'' which bolsters convenience. Together with the utility, there is a toilet measuring 4'8'' x 3'6'' which further improves space usefulness. The southwest part of the building is where the duplex staircase begins going further south. Living Hall occupies the entire western side of the house and is used as a family area where family members do various recreational activities.

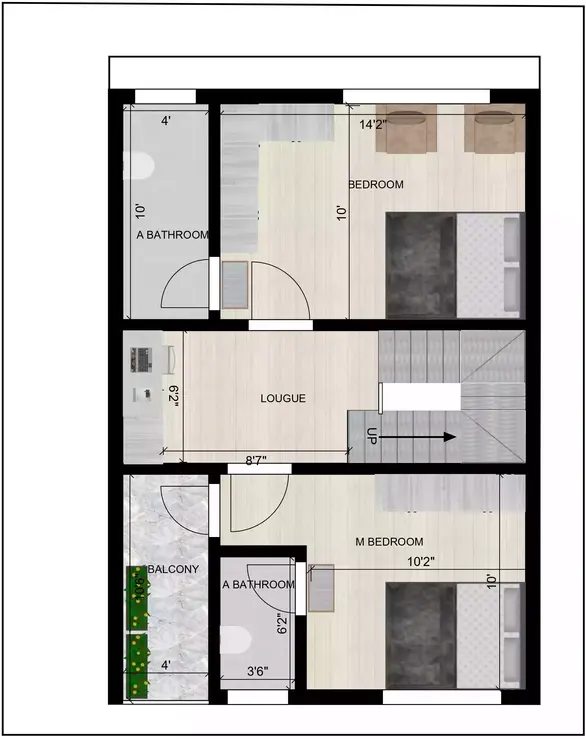

Second Floor:
Luxury awaits on the second floor. There is a lounge area right after ascending the duplex stairs. This floor ensures utmost privacy and comfort. The southeast corner features a bedroom with dimensions 14’2” x 10’ and an attached bath that measures 4’ x 10’. In the other (southwest) corner, there is a master bedroom 10’2” x 10’ that includes and an attached bathroom (3’6” x 6’2”) along with private balcony (4’ x 10’6”) that can serve both as a personal retreat and open airspace.
Third Floor:
Finally, on the third floor, headroom (6’2” x 11’11”) that connects the outdoor part with that of the functional area is located at the center. The eastern side has an open terrace measuring 13’2” x 10’ that can also serve as a spot for leisure and gardening. Beside it, there is a laundry and storage room measuring 5’ x 10’ for utility purposes. On the western side, there is another spacious open terrace measuring 10’ x 18’8” that can serve for outdoor activities or relaxation.
The overall floor plan governs every available inch of space within the four levels which ensures the combination of functionality, comfort, and safety for modern living.
