17 x 50 ft Duplex House Plan 3BHK North Face Of The Residential Building

This 17 x 50 ft (5.1 x 15.24 m) north facing house plan is designed 3BHK duplex design with Ground + 2 Floors with innovative design within all three floors of the house. The ground floor includes parking space, a living room, open kitchen with utility area, living hall, one bedroom with a common bathroom. The first floor has master bedroom with an attached bathroom, a secondary bedroom with en suite bathroom and balcony. The second floor has family hall, open terrace and some free space to increase flexibility. The circulation pattern allows cross ventilation along with natural light, making it an efficient use of the spaces.

Ground floor

In Ground floor covers parking area is spacious measuring 16 x 11.42 ft for bike or car and small gardening. The main door placed at the northeast which give warm welcoming that direct entry to the entire house which connect to the living hall. The common bathroom size of 4.42 x 7.33 ft in the northwest corner which is easily accessible to all. The living hall with dining hall which is centrally located in the northwest direction measuring 20.5 x 14.17 ft allows for family gatherings and includes activities area. Duplex stairs is in the west direction which moves to the east that led to the smooth movement to the upper floors. An open kitchen is small and compact measures 4.83 x 12 ft in the southeast corner. Bedroom size of 11.67 x 8.75 ft in the southwest direction with attached utility space provide privacy and comfortable zone. The common bathroom located in the southwest corner which is ease accessible from outside.

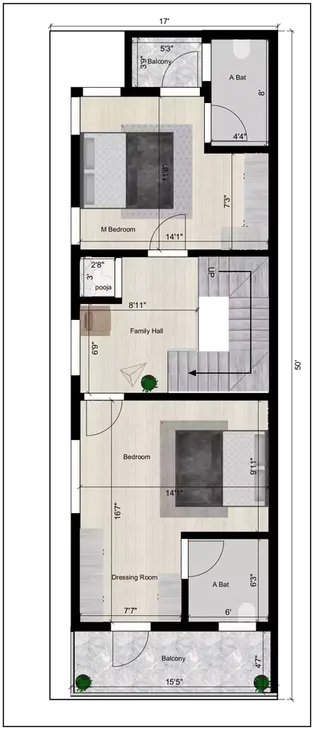

First floor

Moving to the first floor, master bedroom which measures 14.08 x 7.25 ft in the southeast with attached bathroom size of 4.33 x 8 ft which provides ample living space and peaceful sleep, along balcony measures 3.75 x 5.25 ft which serve morning sunlight and fresh air circulation. Family hall measures 8.92 x 6.75 ft in front of stairs which is ideal for family activities and fun entertainment. A Pooja room measures 2.67 x 3 ft in the east which is ideal for worship and meditation. Bedroom size of 16.58 x 14.08 ft in northwest direction with attached bathroom size of 6.25 x 6 ft along with dressing room and alongside balcony size of 15.42 x 4.58 ft in the north suitable for viewing as well as relaxation.

Second floor

Next to the top floor, we see family hall measures 8.92 ft designed for leisure or any other multifunctional use. A spacious open terrace size of 14.08 x 22 ft giving enough space of the outdoors for gardening, sitting, resting or social activities.
