17 x 30 ft West Facing House Plans Of The Residential Building

This 17 x 30 West facing duplex house plan has been designed with G+3 structure. The detail of the duplex house plan with all clear dimension as shown below.

Ground floor

Ground floor consist of parking area covers 9'8" x 14'7" which is spacious for both bike or car parking. Then main door placed facing north direction, living area size of 13'8" x 13'7" in northeast direction, that will be very spacious and spend beautiful moments with family memebers. The stairs in southwest direction that moves up along in east direction where highlights the comfort the first floor to see.

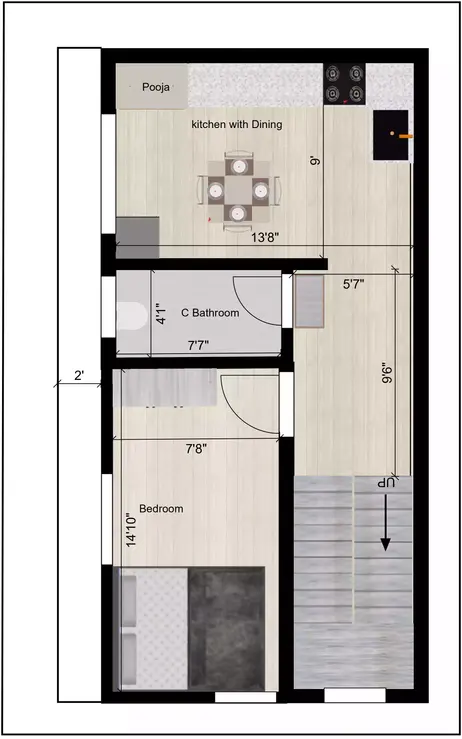

First floor

Next move to the first floor through duplex stairs, lougue size of 5'7" x 9'6 in front of stiars in south direction. Then open kitchen size of 13'8" x 9' along with dining in southeast direction is provided. Beside pooja room is located in northeast direction that can do spirtual practice. The common bathroom size of 4'1" x 7'7" in northwest direction that designed conventionally.

Bedroom size of 14'10"x 7'8 in northwest direction is provided which makes it more comfortable and private.

Second floor

After moving through the stairs, two elegant bedrooms are provided. On a northeast spacious bedroom size 13'8" x 9' is provided and another bedroom size of 14'10"x 7'8" in northwest direction is located, Here also a common bathroom size of 4'1"x 7'7" in north direction that make eay accesible for both family members and guest.

Terrace floor

We see head room size of 5'7" x 9'6" and spacious open terrace is provided that can be utilized for laundry, gardening, gathering and do any other family funtion.
