Complete 2D House Plan Layout
3bhk duplex house plan north facing with car parking
The 16 x 40 ft (4.88 x 12.19 m) North facing Duplex house plan is uniquely structured with a Ground + 3 Floor design that balances modern living style with functionality. It maintains ample natural light and ventilation throughout the house.
Ground Floor
The ground floor has a spacious parking area of 15.00 x 16.92 ft (4.57 x 5.15 m), providing sufficient space for car or bike. The main door is placed at the northeast direction facing north side, directly connecting to stairs located in the northwest, allowing easy access to the upper floors.Bedroom size of 14.67 x 11.00 ft (4.47 x 3.35 m) is in the southeast direction, offering a spacious and comfortable feel, suitable for guests or residents. The common bathroom size of 4.00 x 6.00 ft (1.22 x 1.83 m) is located in the southwest direction, easily accessible from all rooms.A utility space of 3.00 x 15.00 ft (0.91 x 4.57 m) in the south is provided for household chores.
First Floor
Moving to the first floor, the living room measuring 14.67 x 12.00 ft (4.47 x 3.66 m) is spacious and located in the northwest direction, ideal for family gatherings and entertainment. It has an attached balcony size of 15.50 x 4.67 ft (4.72 x 1.42 m) in the north direction, perfect for gardening and enjoying fresh air.An open kitchen with dining area measures 10.17 x 7.58 ft (3.10 x 2.31 m) in the southeast corner, providing a spacious and convenient zone for cooking and serving. The common bathroom size of 4.00 x 6.00 ft (1.22 x 1.83 m) in the southwest direction is easily accessible to all.
Second Floor
The second floor includes two beautifully designed bedrooms offering privacy and comfort.The first bedroom sized 14.67 x 11.00 ft (4.47 x 3.35 m) in the southeast direction has an attached bathroom of 4.00 x 6.00 ft (1.22 x 1.83 m) on the southwest side.Another bedroom sized 11.83 x 14.67 ft (3.61 x 4.47 m) is located in the northeast direction with an attached bathroom of 4.00 x 7.00 ft (1.22 x 2.13 m) in the northwest. This space is a luxurious retreat with ample living room.This bedroom also includes a balcony sized 15.50 x 4.67 ft (4.72 x 1.42 m) in the north, perfect for fresh air, sunbathing in early morning, and gardening.

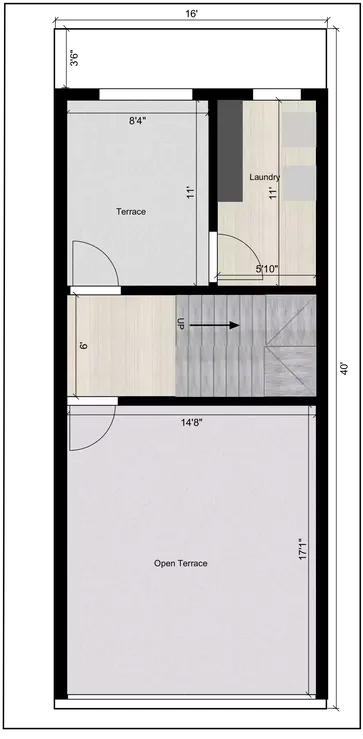

Terrace Floor
The top floor features a laundry area measuring 5.83 x 11.00 ft (1.78 x 3.35 m) in the southwest and a small open terrace on the southeast measuring 8.33 x 11.00 ft (2.54 x 3.35 m).A spacious open terrace sized 14.67 x 17.08 ft (4.47 x 5.20 m) in the north serves as a welcoming area for sitting, chatting, resting, or gardening. This terrace enhances the calmness inside the house while allowing outdoor enjoyment and views.
