Complete 2D House Plan Layout
House map 16 x 30 design duplex 3bhk west facing plan
The 3BHK duplex house design has been deigned with G+3 structure which face West direction. Here we see all measurenment of this duplex plan of the building.
Ground floor
In Ground floor which parking area cover 2'10" x 15'9", then main door placed northwest direction gace west side, living room size of 12'8" x 10' in southwest direction, that makes the place warm and relaxing. Stairs in northeast direction that moves towards east that have good space for utizing the flow of layout.
An open kitchen size of 10'9" x 6'6" is provided in the southeast direction and for modern living comes for modern features. The common bathroom size of 6' x 4' in south direction is provided.
First floor
Next move to first floor, kids bedroom size of 10'9" x 6' in southeast direction is provided. The common bathroom size of 4' x 6'in south direction thaat can ease acceble to both residents and guest. Bedroom size of 12'8" x 10' in southwest direction is provided that offerting more comfort and frivacy. Additionally attched with balcony size of 13' x 3'1" in west direction, its serve as a private area for viewing outdoor or some relaxation.
This floor design features of mix up both private and comfort while additionally balcony gives a modern feel.

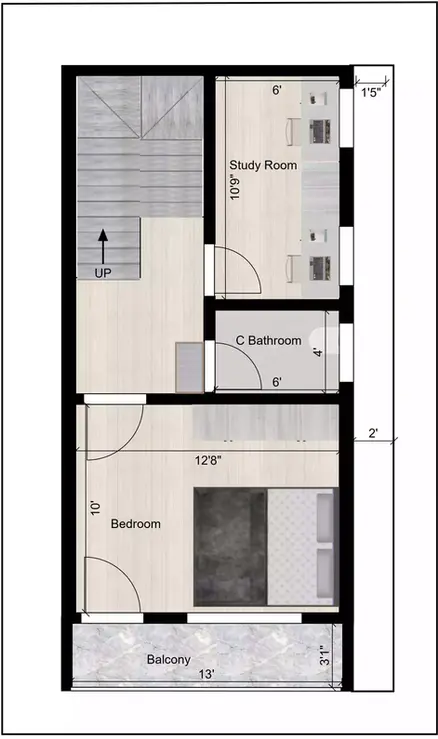

Second floor
After passing through stairs, we see study room size of 10'9" x 6' in southeast direction, a new quite area which improves space fumctionality for modern requirement . Bedroom size of 10' x 12'8" in southwest direction is provided that give more spacious and comfortable. Attached with balcony size of 13' x 3'1" in west direction that can can utilize for ventilation and take fresh breath air.
Terrace floor
We see head room and spacious open terrace for gathering or relaxation, gardening or any other purposes.
